HS928 K1 WAS (SAVJ) - Honda 28" Snow Blower, Made in Japan (SN: SAVJ-5000001 - SAVJ-9999999) AUGER Parts Diagram

28" Snow Blower, Made in Japan

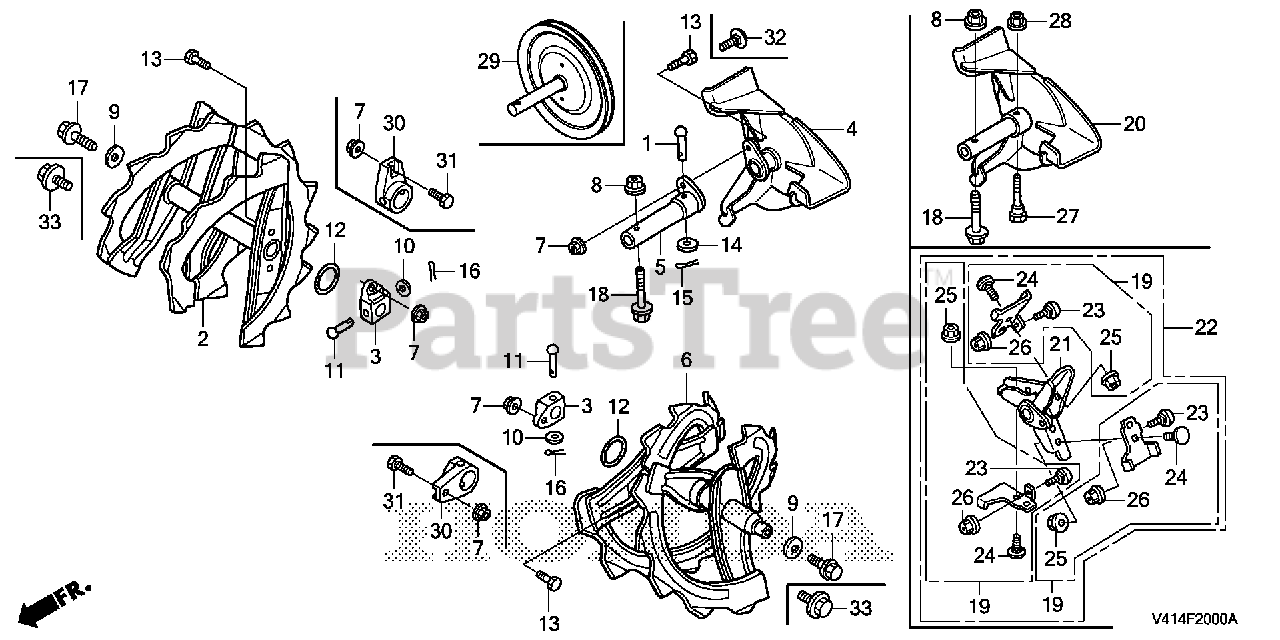

AUGER Parts Diagram

  • Title

1

Honda 50603-MFL-000

PIN C, PILLION STEP

Note:

$2.99

$

In Stock, only 3 left!

0

2

Honda 72410-V41-306

AUGER, R. (COO)

Note:

$370.99

$

Usually ships in 3-6 days

0

3

Honda 72419-767-013

SEE PART DETAILS - PRI; BOSS, LOCK BOLT

Note:

$25.99

$

Usually ships in 3-6 days

0

4

Honda 72440-768-S00

BLOWER
(Superseded to 72440-V41-W00)

Note:

$243.99

$

Usually ships in 3-6 days

0

5

Honda 72442-V41-700

PIPE, JOINT

Note:

$74.99

$

Usually ships in 3-6 days

0

6

Honda 72450-V41-306

AUGER, L. (COO)

Note:

$370.99

$

Usually ships in 3-6 days

0

7

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

Note:

$4.49

$

In Stock, Qty 20+

0

8

Honda 90309-428-731

NUT, FLANGE (M8X1.25) (SELF-LOCK)

Note:

$4.99

$

In Stock, Qty 14

0

9

Honda 90430-657-000

WASHER (23X8.3X3.2)

Note:

$9.49

$

In Stock, only 1 left!

0

10

Honda 90501-KV6-670

WASHER, PLAIN (7MM)

Note:

$2.49

$

In Stock, only 2 left!

0

11

Honda 90757-767-000

PIN (7X40)

Note:

$4.49

$

In Stock, Qty 20+

0

12

Honda 91308-PA9-003

O-RING (19.8X1.9) (ARAI)

Note:

$5.99

$

In Stock, only 2 left!

0

13

Honda 92101-06018-0A

BOLT, HEX. (6X18)

Note:

$1.99

$

In Stock, Qty 20+

0

14

Honda 94101-06800

WASHER, PLAIN (6MM)

Note:

$0.99

$

In Stock, Qty 5

0

15

Honda 94201-20220

PIN, SPLIT (2.0X22)

Note:

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94201-20350

PIN, SPLIT (2.0X35)

Note:

$1.49

$

Usually ships in 3-6 days

0

16

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

Note:

$1.49

$

Usually ships in 3-6 days

0

16

Honda 94201-30450

PIN, SPLIT (3.0X45)

Note:

$1.49

$

Usually ships in 3-6 days

0

17

Honda 95701-08016-00

BOLT, FLANGE (8X16)

Note:

$2.49

$

In Stock, Qty 7

0

18

Honda 95701-08035-00

BOLT, FLANGE (8X35)

Note:

$2.99

$

In Stock, only 3 left!

0

27

Honda 90102-732-010

SEE PART DETAILS - PRI; BOLT, LOCK

Note:

$6.49

$

In Stock, Qty 6

0
