HS928 K1 TA (SAVJ) - Honda 28" Snow Blower, Made in Japan (SN: SAVJ-5000001 - SAVJ-9999999) TRANSMISSION Parts Diagram

28" Snow Blower, Made in Japan

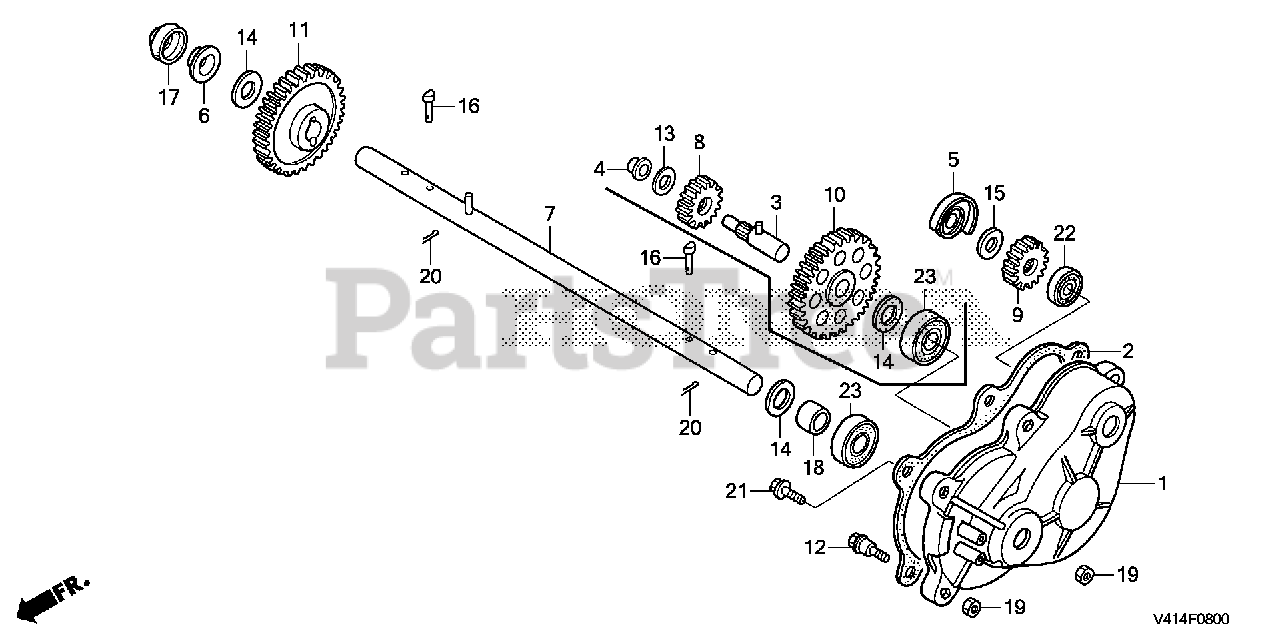

TRANSMISSION Parts Diagram

  • Title

1

Honda 21111-767-C10

CASE, R. TRANSMISSION

$228.99

$

Usually ships in 3-6 days

0

2

Honda 21115-767-C30

GASKET, TRANSMISSION CASE

$15.99

$

In Stock, only 1 left!

0

5

Honda 23234-767-C10

BUSH, CROSS SHAFT

$11.99

$

Usually ships in 3-6 days

0

6

Honda 23252-767-003

BUSH, FINAL SHAFT

$7.49

$

In Stock, Qty 14

0

7

Honda 23370-767-C31

SEE PART DETAILS - PRI; SHAFT, WHEEL

$114.99

$

In Stock, only 1 left!

0

9

Honda 23421-767-C30

GEAR, DRIVE (11T)

$32.99

$

Usually ships in 3-6 days

0

11

Honda 23431-767-C30

GEAR, DRIVEN (66T)

$213.99

$

Usually ships in 3-6 days

0

12

Honda 90004-732-000

BOLT, TRANSMISSION SETTING

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90525-750-000

WASHER, DIFFERENTIAL GEAR

$5.49

$

In Stock, only 2 left!

0

15

Honda 90599-767-C10

WASHER, THRUST (12X23X2)

$3.49

$

In Stock, only 1 left!

0

17

Honda 91251-767-C31

DUST SEAL (20X34X7.5)

$5.99

$

In Stock, Qty 11

0

18

Honda 91551-767-C10

COLLAR, WHEEL SHAFT

$5.99

$

Usually ships in 3-6 days

0

19

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

19

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

21

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 7

0

22

Honda 96150-60020-10

BEARING, RADIAL BALL (6002UU)

$16.99

$

In Stock, Qty 11

0

23

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$23.99

$

In Stock, Qty 8

0
