HS928 K1 TA (SAVJ) - Honda 28" Snow Blower, Made in Japan (SN: SAVJ-5000001 - SAVJ-9999999) CRAWLER Parts Diagram

28" Snow Blower, Made in Japan

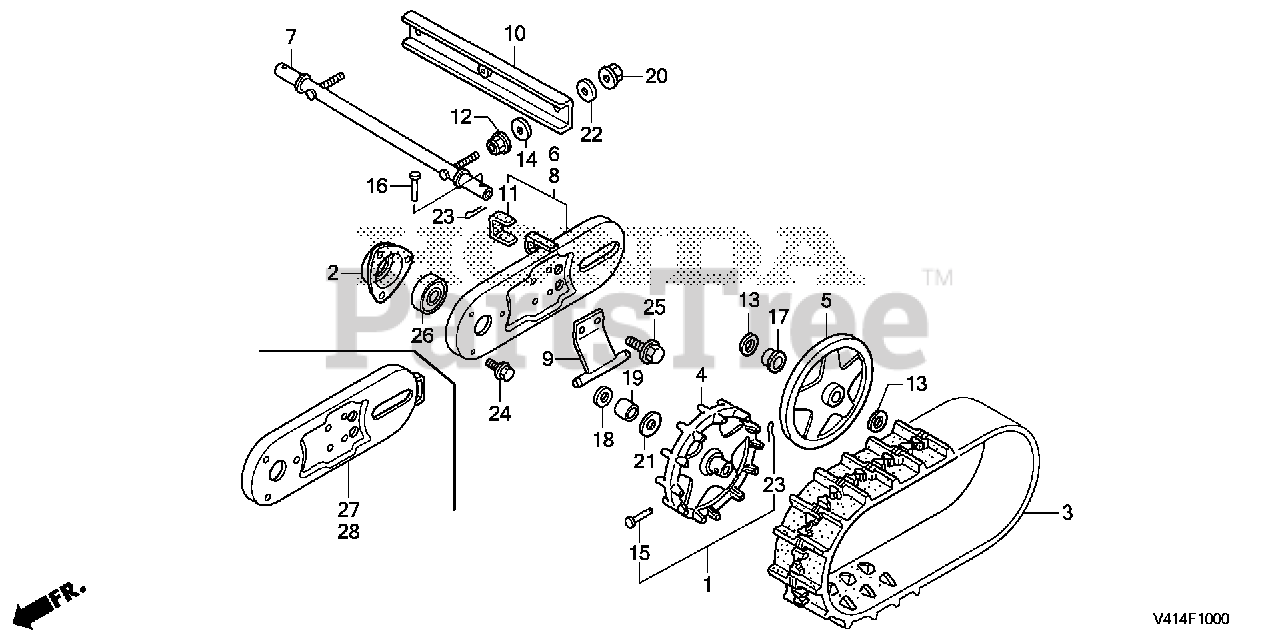

CRAWLER Parts Diagram

  • Title

1

Honda 06907-732-000

PIN SET, CRAWLER

Note: (Optional).

$5.99

$

In Stock, Qty 18

0

2

Honda 42316-767-000

HOLDER, WHEEL SHAFT BEARING

$25.99

$

In Stock, only 1 left!

0

3

Honda 42755-V41-305

SEE PART DETAILS - PRI; CRAWLER (12-60X21) (COO)
(Superseded to 42755-768-013)

$

$

Not available

4

Honda 42756-768-000

SPROCKET, CRAWLER

$125.99

$

In Stock, only 2 left!

0

5

Honda 42757-V41-305

ROLLER, CRAWLER (COO)
(Superseded to 42757-768-000)

$76.99

$

In Stock, only 3 left!

0

7

Honda 42770-768-010

SEE PART DETAILS - PRI; PIPE, CRAWLER

$122.99

$

In Stock, only 1 left!

0

9

Honda 42772-768-000

GUIDE, CRAWLER

$35.99

$

Usually ships in 3-6 days

0

10

Honda 42774-768-000

BAR, CRAWLER PLATE

$59.99

$

Usually ships in 3-6 days

0

12

Honda 90002-S10-000

NUT, FLANGE (10MM)

$6.49

$

Usually ships in 3-6 days

0

13

Honda 90403-952-770

WASHER, PLAIN (22MM)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90503-819-000

WASHER, PLAIN (10MM)

$2.99

$

In Stock, only 1 left!

0

15

Honda 90701-732-000

PIN (6MM)

$6.49

$

In Stock, Qty 20+

0

16

Honda 90702-743-000

PIN (6MM)

$4.99

$

In Stock, Qty 11

0

17

Honda 91553-768-000

COLLAR, CRAWLER PIPE

$16.99

$

In Stock, only 2 left!

0

18

Honda 91555-767-000

COLLAR, R. WHEEL SHAFT

$4.49

$

Usually ships in 3-6 days

0

19

Honda 91559-767-000

COLLAR, CRAWLER SPROCKET

$6.99

$

Usually ships in 3-6 days

0

20

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 20+

0

21

Honda 94101-20000

WASHER, PLAIN (20MM)

$1.99

$

In Stock, only 1 left!

0

23

Honda 94201-30180

PIN, SPLIT (3.0X18)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

25

Honda 95701-08014-00

BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

26

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$25.99

$

In Stock, Qty 6

0

27

Honda 42761-768-000

PLATE, R. CRAWLER

$183.99

$

Usually ships in 3-6 days

0

28

Honda 42771-768-000

PLATE, L. CRAWLER

$183.99

$

In Stock, only 1 left!

0
