HS828 TAS (SZAK) - Honda 28" Snow Blower, Made in Japan (SN: SZAK-1000001 - SZAK-1999999) CONTROL Parts Diagram

28" Snow Blower, Made in Japan

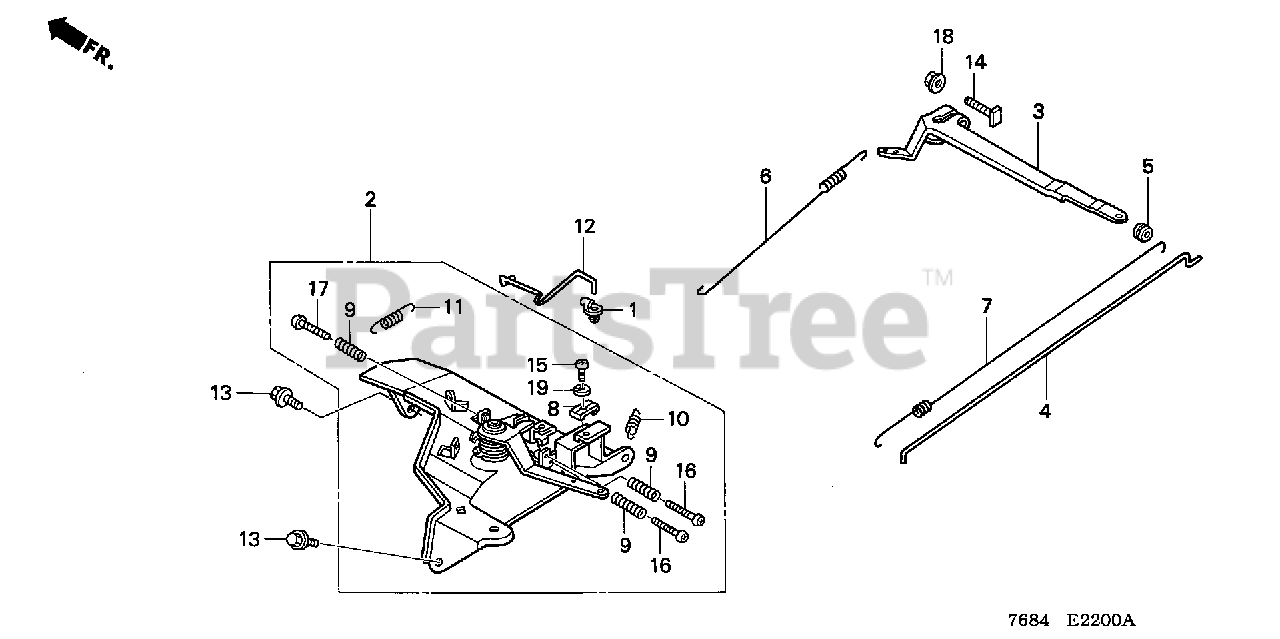

CONTROL Parts Diagram

  • Title

1

Honda 16263-ZA0-000

JOINT, ROD

$5.49

$

Usually ships in 3-6 days

0

2

Honda 16500-ZE2-P52

CONTROL ASSY.

$71.99

$

Usually ships in 3-6 days

0

3

Honda 16551-ZE2-780

ARM, GOVERNOR

$18.99

$

Usually ships in 3-6 days

0

4

Honda 16555-ZE2-780

ROD, GOVERNOR

$4.99

$

In Stock, only 1 left!

0

5

Honda 16559-ZE2-780

COLLAR, GOVERNOR ROD

$2.99

$

Usually ships in 3-6 days

0

6

Honda 16561-ZE2-000

SPRING, GOVERNOR (L=145.0MM) (WIRE DIAMETER 1.0MM)

$5.99

$

In Stock, only 1 left!

0

7

Honda 16562-ZE2-000

SPRING, THROTTLE RETURN

$4.99

$

In Stock, only 1 left!

0

8

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

In Stock, only 1 left!

0

9

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

10

Honda 16592-732-700

SPRING, CABLE RETURN

$4.99

$

In Stock, only 1 left!

0

11

Honda 16592-883-310

SPRING, CABLE RETURN

$3.49

$

In Stock, only 2 left!

0

12

Honda 16674-ZE2-P51

ROD, CHOKE

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

14

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

15

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 93500-05025-0H

SCREW, PAN (5X25)

$0.99

$

In Stock, only 4 left!

0

17

Honda 93500-05035-0H

SCREW, PAN (5X35)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0
