HS828 K1 WAS (SZAK) - Honda 28" Snow Blower, Made in Japan (SN: SZAK-2000001 - SZAK-2042094) RECOIL STARTER (2) Parts Diagram

28" Snow Blower, Made in Japan

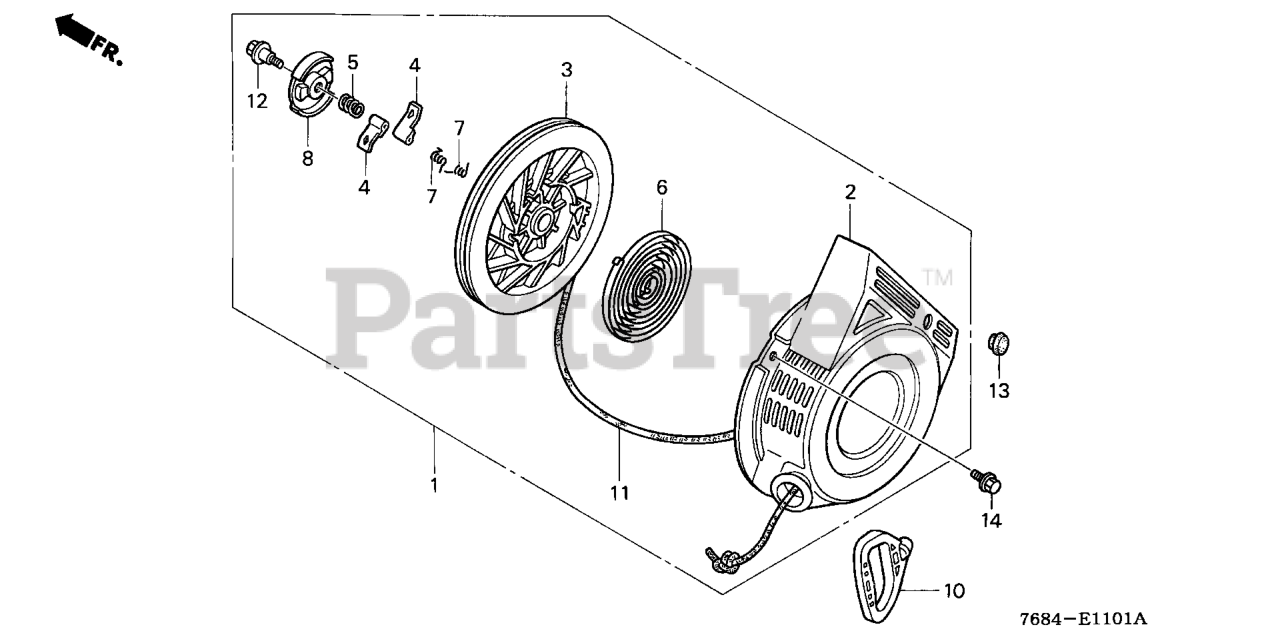

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-ZE2-H24ZD

STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use from Engine SN 3181318.

$137.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-H24ZD

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

Note: Use from Engine SN 3181318.

$123.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE2-W01

PULLEY, RECOIL STARTER

Note: Use from Engine SN 3181318.

$41.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER (Honda Code 3678877).

Note: Use from Engine SN 3181318.

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION (Honda Code 3678885).

Note: Use from Engine SN 3181318.

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN (Honda Code 3678893).

Note: Use from Engine SN 3181318.

$18.99

$

Usually ships in 3-6 days

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET (Honda Code 3678901).

Note: Use from Engine SN 3181318.

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING (Honda Code 3678919).

Note: Use from Engine SN 3181318.

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-H22

SEE PART DETAILS - PRI; GRIP, STARTER

Note: Use from Engine SN 3181318.

$12.99

$

In Stock, only 2 left!

0

11

Honda 28462-ZE2-H21

ROPE, RECOIL STARTER (NA USE ALT:08550-ZG921-11)

Note: Use from Engine SN 3181318.

$

$

Currently unavailable

12

Honda 90004-ZE2-W01

SCREW, CENTER (Honda Code 3679024).

Note: Use from Engine SN 3181318.

$4.49

$

In Stock, Qty 10

0

13

Honda 91618-SA5-000

GROMMET B, CONTROL WIRE (16MM)

Note: Use from Engine SN 3181318.

$7.49

$

Usually ships in 3-6 days

0

14

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

Note: Use from Engine SN 3181318.

$3.49

$

In Stock, Qty 8

0
