HS828 K1 WAS (SZAK) - Honda 28" Snow Blower, Made in Japan (SN: SZAK-2000001 - SZAK-2042094) RECOIL STARTER (1) Parts Diagram

28" Snow Blower, Made in Japan

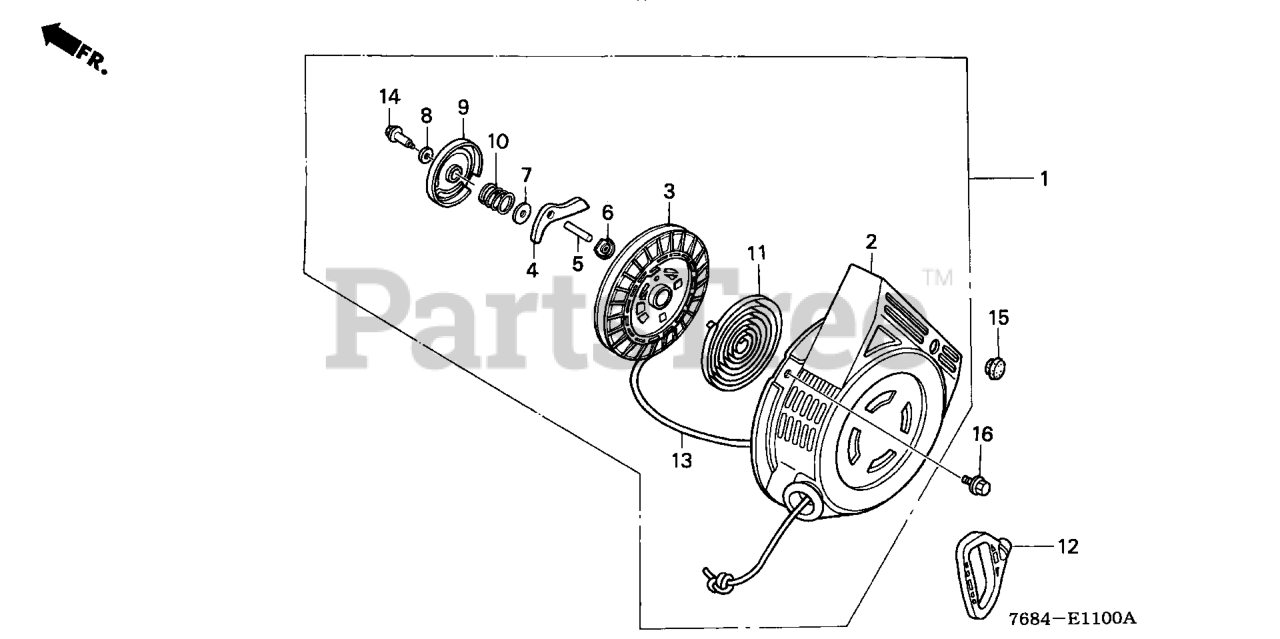

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZE2-H22ZA

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use up to Engine SN 3181317.

$

$

Currently unavailable

2

Honda 28410-ZE2-H22ZA

CASE, STARTER *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use up to Engine SN 3181317.

$

$

Not available

3

Honda 28420-889-631

REEL, STARTER (Honda Code 1956572).

Note: Use up to Engine SN 3181317.

$34.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE1-711

RATCHET, STARTER (Honda Code 1950807).

Note: Use up to Engine SN 3181317.

$5.49

$

Usually ships in 3-6 days

0

5

Honda 28423-ZE1-711

SHAFT, RATCHET (Honda Code 1950815).

Note: Use up to Engine SN 3181317.

$8.99

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE (Honda Code 4590527).

Note: Use up to Engine SN 3181317.

$4.99

$

Usually ships in 3-6 days

0

7

Honda 28431-ZE1-711

PLATE A, FRICTION (Honda Code 1950823).

Note: Use up to Engine SN 3181317.

$3.99

$

Usually ships in 3-6 days

0

8

Honda 28432-ZG0-003

SEE PART DETAILS - PRI; PLATE B, FRICTION (Honda Code 1795459).

Note: Use up to Engine SN 3181317.

$2.99

$

Usually ships in 3-6 days

0

9

Honda 28434-ZE1-711

COVER, REEL STARTER (Honda Code 1950831).

Note: Use up to Engine SN 3181317.

$

$

Not available

10

Honda 28441-ZE1-711

SEE PART DETAILS - SUP; SPRING, FRICTION

Note: Use up to Engine SN 3181317.

$3.49

$

Usually ships in 3-6 days

0

11

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN (Honda Code 4617403).

Note: Use up to Engine SN 3181317.

$21.99

$

Usually ships in 3-6 days

0

12

Honda 28461-ZE2-H22

SEE PART DETAILS - PRI; GRIP, STARTER

Note: Use up to Engine SN 3181317.

$12.99

$

In Stock, only 2 left!

0

13

Honda 28462-ZE1-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X59") (NA USE ALT:08550-ZG921-11) (Honda Code 1428754).

Note: Use up to Engine SN 3181317.

$8.99

$

Usually ships in 3-6 days

0

14

Honda 90003-ZG0-003

BOLT, REEL COVER (Honda Code 1795715).

Note: Use up to Engine SN 3181317.

$

$

Not available

15

Honda 91618-SA5-000

GROMMET B, CONTROL WIRE (16MM)

Note: Use up to Engine SN 3181317.

$7.49

$

Usually ships in 3-6 days

0

16

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

Note: Use up to Engine SN 3181317.

$3.49

$

In Stock, Qty 8

0
