HS828 K1 WA (SZAK) - Honda 28" Snow Blower, Made in Japan (SN: SZAK-2000001 - SZAK-2042180) IGNITION COIL Parts Diagram
28" Snow Blower, Made in Japan

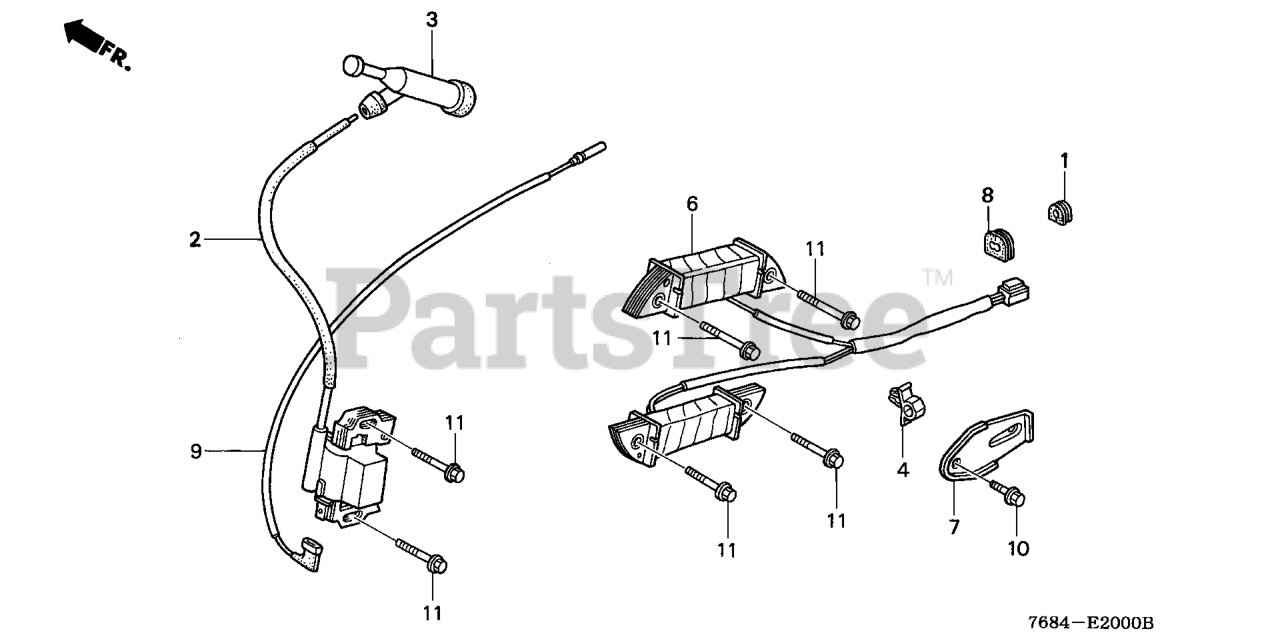

IGNITION COIL Parts Diagram
Honda 15532-KM1-000
GROMMET, OIL PIPE HOLDER
$2.49
$
In Stock, only 3 left!
Honda 30500-ZE2-023
SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 4545927).
$56.99
$
In Stock, Qty 8
Honda 30500-ZF6-W02
SEE PART DETAILS - PRI; COIL ASSY., IGNITION (Honda Code 7032428).
$56.99
$
In Stock, Qty 8
Honda 30700-ZE1-013
SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3526837). (NICHIWA Y-EZ RTFM256)
$22.99
$
In Stock, only 1 left!
Honda 30701-883-000
SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)
$3.99
$
In Stock, only 1 left!
Honda 31510-ZE2-P31
COIL ASSY., LAMP (12V/50W)
$161.99
$
Usually ships in 3-6 days
Honda 31511-ZE2-000
CLAMP, WIRE (Honda Code 2026540).
$6.49
$
Usually ships in 3-6 days
Honda 31512-ZE2-000
GROMMET, WIRE (Honda Code 2026557).
$3.99
$
Usually ships in 3-6 days
Honda 36101-ZE1-010
WIRE, STOP SWITCH (370MM) (Honda Code 3684032).
$11.99
$
In Stock, Qty 20+
Honda 90013-883-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).
$1.99
$
In Stock, Qty 20+
Honda 90015-883-000
BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.
$3.99
$
In Stock, only 3 left!
