HS828 K1 WA (SZAK) - Honda 28" Snow Blower, Made in Japan (SN: SZAK-2000001 - SZAK-2042180) AUGER Parts Diagram

28" Snow Blower, Made in Japan

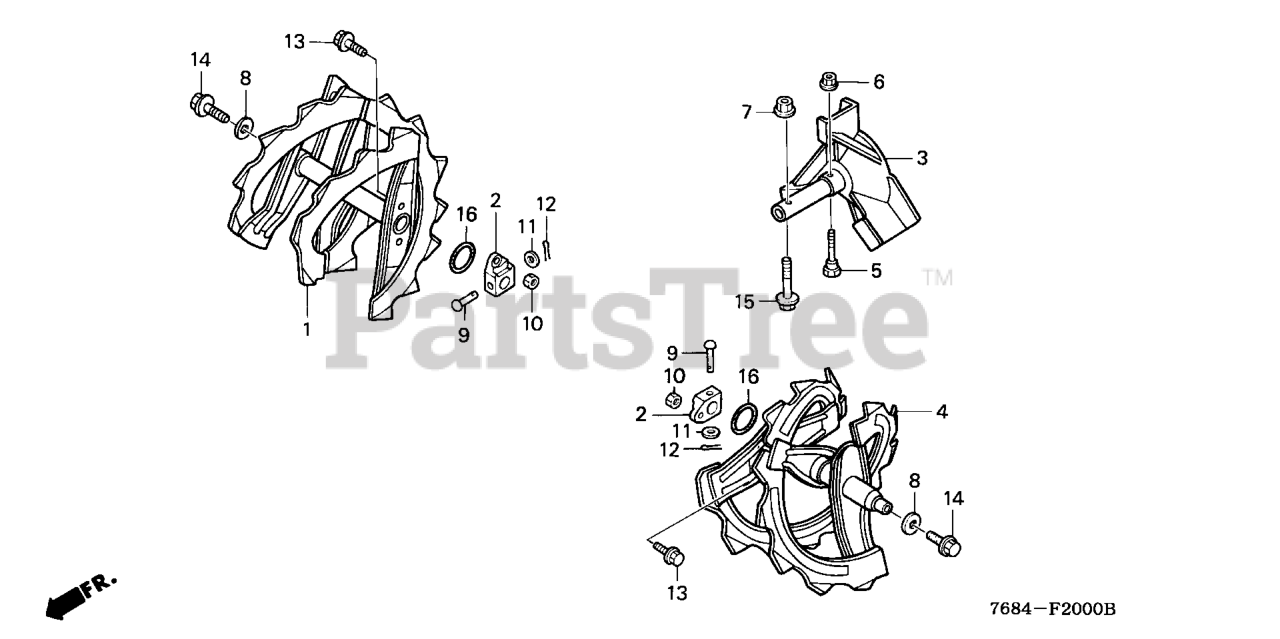

AUGER Parts Diagram

  • Title

NI

Honda 04700-768-E100

SEE PART DETAILS - SUP; AUGER SKID KIT, COMMERCIAL

$

$

Not available

1

Honda 72410-768-010

AUGER, R.

$442.99

$

Usually ships in 3-6 days

0

2

Honda 72419-767-013

SEE PART DETAILS - PRI; BOSS, LOCK BOLT

$25.99

$

Usually ships in 3-6 days

0

3

Honda 72440-768-000

BLOWER

$251.99

$

In Stock, only 1 left!

0

4

Honda 72450-768-010

AUGER, L.

$447.99

$

Usually ships in 3-6 days

0

5

Honda 90102-732-010

SEE PART DETAILS - PRI; BOLT, LOCK

$6.49

$

In Stock, Qty 6

0

6

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

7

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 14

0

8

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

$9.49

$

In Stock, only 1 left!

0

9

Honda 90757-767-000

PIN (7X40)

$4.49

$

In Stock, Qty 20+

0

10

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

$1.99

$

In Stock, Qty 20+

0

11

Honda 90501-KV6-670

WASHER, PLAIN (7MM)

$2.49

$

In Stock, only 2 left!

0

12

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

Usually ships in 3-6 days

0

14

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 7

0

15

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0
