HS828 K1 TA/C (SZAK) - Honda 28" Snow Blower, Made in Japan (SN: SZAK-2120001 - SZAK-9999999) HYDROSTATIC TRANSMISSION Parts Diagram

28" Snow Blower, Made in Japan

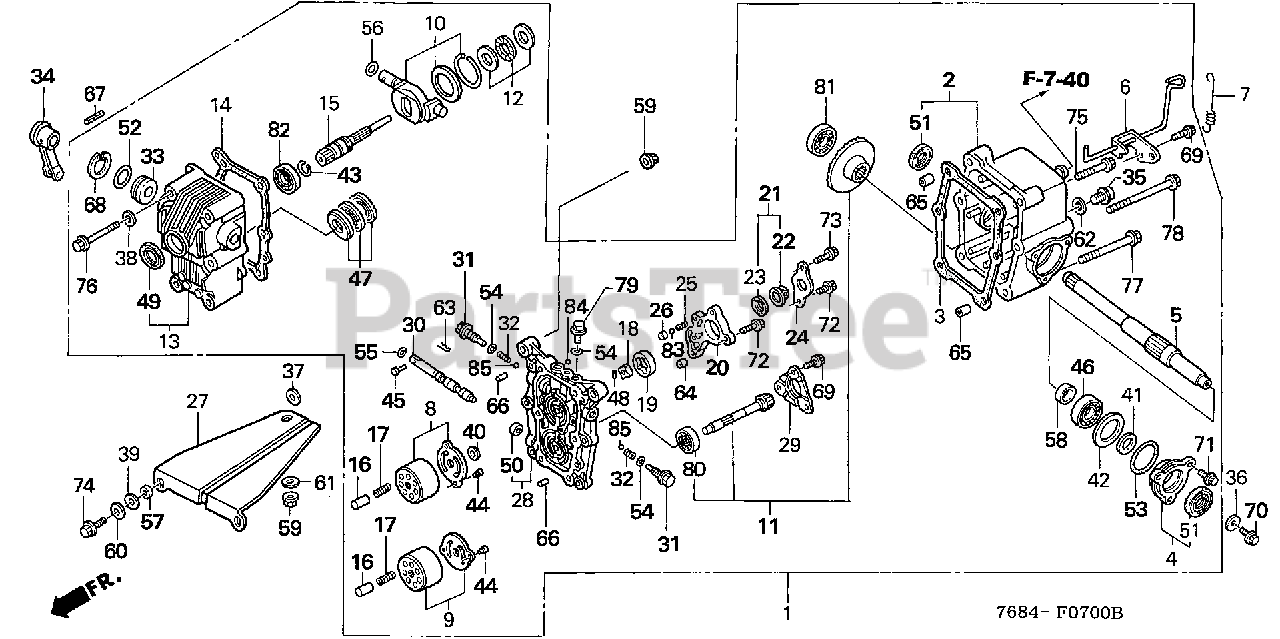

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Honda 20001-VD6-859

TRANSMISSION ASSY.

$1065.99

$

Usually ships in 3-6 days

0

2

Honda 21210-VD6-854

CASE, RR. TRANSMISSION

$153.99

$

Usually ships in 3-6 days

0

3

Honda 21215-VD6-851

GASKET, RR. TRANSMISSION CASE

$16.99

$

Usually ships in 3-6 days

0

4

Honda 21225-VD6-853

HOLDER, OIL SEAL

$63.99

$

Usually ships in 3-6 days

0

5

Honda 23236-VD6-853

SHAFT, CROSS

$151.99

$

Usually ships in 3-6 days

0

6

Honda 24176-VD6-852

ARM, NEUTRAL VALVE

$19.99

$

Usually ships in 3-6 days

0

7

Honda 24178-VD6-851

SPRING, NEUTRAL VALVE

$4.99

$

In Stock, only 1 left!

0

8

Honda 25010-VD6-851

PLATE SET, PUMP CYLINDER

$90.99

$

Usually ships in 3-6 days

0

9

Honda 25011-VD6-851

PLATE SET, MOTOR CYLINDER

$94.99

$

Usually ships in 3-6 days

0

10

Honda 25012-773-000

BOWL SET, CONTROL

$118.99

$

Usually ships in 3-6 days

0

11

Honda 25013-VD6-850

GEAR SET, MOTOR SHAFT & BEVEL

$243.99

$

Usually ships in 3-6 days

0

12

Honda 25014-773-000

BEARING SET, THRUST NEEDLE

$44.99

$

Usually ships in 3-6 days

0

13

Honda 25310-VD6-851

CASE, PUMP

$157.99

$

Usually ships in 3-6 days

0

14

Honda 25312-VD6-851

GASKET, PUMP CASE

$13.99

$

Usually ships in 3-6 days

0

15

Honda 25321-VD6-852

SHAFT, PUMP

$76.99

$

Usually ships in 3-6 days

0

16

Honda 25342-773-003

PISTON, PUMP (HOLE DEPTH=18MM)

$9.99

$

Usually ships in 3-6 days

0

17

Honda 25343-773-000

SPRING, PISTON (5.8X34.5)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 25411-VD6-852

ROTOR, TROCHOID

$14.99

$

Usually ships in 3-6 days

0

19

Honda 25415-VD6-851

VANE, TROCHOID

$15.99

$

Usually ships in 3-6 days

0

20

Honda 25416-VD6-853

HOUSING, TROCHOID

$39.99

$

Usually ships in 3-6 days

0

21

Honda 25420-VD6-852

FILTER ASSY., SUCTION

$16.99

$

Usually ships in 3-6 days

0

22

Honda 25421-VD6-852

FILTER, SUCTION

$10.99

$

Usually ships in 3-6 days

0

23

Honda 25422-VD6-851

SEAL, RUBBER

$8.49

$

Usually ships in 3-6 days

0

24

Honda 25425-VD6-852

PLATE, FILTER CAP

$7.49

$

Usually ships in 3-6 days

0

25

Honda 25431-VD6-851

SPRING, RELIEF VALVE

$1.99

$

Usually ships in 3-6 days

0

26

Honda 25437-VD6-852

SEAT, RELIEF VALVE

$10.99

$

Usually ships in 3-6 days

0

27

Honda 25505-767-000

PLATE, TRANSMISSION MOUNTING

$42.99

$

Usually ships in 3-6 days

0

28

Honda 25510-VD6-854

PLATE, DISTRIBUTOR

$918.99

$

Usually ships in 3-6 days

0

29

Honda 25518-VD6-850

HOLDER, BEARING

$13.99

$

Usually ships in 3-6 days

0

30

Honda 25521-VD6-850

SPOOL, NEUTRAL VALVE

$50.99

$

Usually ships in 3-6 days

0

31

Honda 25525-773-000

BOLT, CHECK VALVE

$9.99

$

Usually ships in 3-6 days

0

32

Honda 25526-VD6-851

SPRING, CHECK VALVE

$2.49

$

Usually ships in 3-6 days

0

33

Honda 25813-773-000

BUSH, CONTROL BOWL (B)

$21.99

$

Usually ships in 3-6 days

0

34

Honda 40311-767-000

ARM, CLUTCH

$38.99

$

Usually ships in 3-6 days

0

35

Honda 90081-MC7-000

BOLT, PLUG

$15.99

$

Usually ships in 3-6 days

0

36

Honda 90474-704-000

WASHER

$2.49

$

Usually ships in 3-6 days

0

37

Honda 90485-GB4-790

WASHER (8MM)

$2.99

$

Usually ships in 3-6 days

0

38

Honda 90503-VD6-850

WASHER, SEALING (9X16X1.5)

$4.49

$

Usually ships in 3-6 days

0

39

Honda 90503-767-000

WASHER, WAVE (12MM)

$4.49

$

Usually ships in 3-6 days

0

40

Honda 90504-VD6-851

WASHER, THRUST (8MM)

$4.99

$

Usually ships in 3-6 days

0

41

Honda 90508-VD6-850

WASHER, PLAIN (15MM)

$5.99

$

Usually ships in 3-6 days

0

42

Honda 90565-VD6-852

SHIM A, BEVEL GEAR (1.5MM)

$12.99

$

Usually ships in 3-6 days

0

42

Honda 90566-VD6-852

SHIM B, BEVEL GEAR (1.55MM)

$12.99

$

Usually ships in 3-6 days

0

42

Honda 90567-VD6-852

SHIM C, BEVEL GEAR (1.6MM)

$13.99

$

Usually ships in 3-6 days

0

42

Honda 90568-VD6-852

SHIM D, BEVEL GEAR (1.65MM)

$12.99

$

Usually ships in 3-6 days

0

42

Honda 90569-VD6-851

SHIM E, BEVEL GEAR (1.7MM)

$13.99

$

Usually ships in 3-6 days

0

42

Honda 90570-VD6-852

SHIM F, BEVEL GEAR (1.75MM)

$12.99

$

Usually ships in 3-6 days

0

43

Honda 90663-VD6-850

CLIP, BEARING

$4.99

$

Usually ships in 3-6 days

0

44

Honda 90755-VD6-900

PIN, DOWEL (3X5.8)

$4.49

$

Usually ships in 3-6 days

0

45

Honda 90759-VD6-850

PIN, NEUTRAL VALVE

$4.49

$

Usually ships in 3-6 days

0

46

Honda 91007-MN5-003

BEARING, RADIAL BALL (6904) (NTN)

$21.99

$

Usually ships in 3-6 days

0

47

Honda 91069-VD6-851

BEARING, THRUST BALL (51204)

$71.99

$

Usually ships in 3-6 days

0

48

Honda 91151-VD6-851

ROLLER (2.5X11.8)

$1.99

$

Usually ships in 3-6 days

0

49

Honda 91204-GN2-005

OIL SEAL (17X30X5) (NOK)

$8.49

$

In Stock, only 1 left!

0

50

Honda 91255-VD6-851

DUST SEAL (9X15X5)

$6.99

$

In Stock, only 1 left!

0

51

Honda 91272-733-931

OIL SEAL (15X28X7)

$9.49

$

Usually ships in 3-6 days

0

52

Honda 91307-PE0-010

O-RING (25X2.4)

$5.99

$

In Stock, only 1 left!

0

53

Honda 91352-VD6-851

O-RING (34.6X1.9)

$3.49

$

In Stock, only 1 left!

0

54

Honda 91355-VD6-852

O-RING (11X1.9)

$2.99

$

Usually ships in 3-6 days

0

55

Honda 91360-VD6-851

O-RING (5.8X1.9)

$1.49

$

In Stock, only 1 left!

0

56

Honda 91361-VD6-901

O-RING (11.8X1.9)

$3.49

$

In Stock, only 1 left!

0

57

Honda 91501-767-000

COLLAR, TRANSMISSION MOUNT (8X12X4.7)

$4.49

$

Usually ships in 3-6 days

0

58

Honda 91589-VD6-851

COLLAR, BEVEL GEAR

$9.99

$

Usually ships in 3-6 days

0

59

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

60

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

61

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, only 2 left!

0

62

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

63

Honda 94251-04000

PIN, LOCK (4MM)

$0.99

$

Usually ships in 3-6 days

0

64

Honda 94301-08100

PIN, DOWEL (8X10)

$3.49

$

Usually ships in 3-6 days

0

65

Honda 94301-10120

PIN, DOWEL (10X12)

$3.49

$

Usually ships in 3-6 days

0

66

Honda 94303-05080

PIN, DOWEL (5X8)

$3.49

$

Usually ships in 3-6 days

0

67

Honda 94305-40282

PIN, SPRING (4X28)

$2.99

$

In Stock, Qty 9

0

68

Honda 94520-30000

CIRCLIP (INNER) (30MM)

$1.99

$

Usually ships in 3-6 days

0

69

Honda 95701-06012-08

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 9

0

70

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$2.49

$

In Stock, only 2 left!

0

71

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 5

0

72

Honda 95701-06025-08

BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

73

Honda 95701-06032-00

BOLT, FLANGE (6X32)

$2.99

$

In Stock, Qty 5

0

74

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

75

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$3.49

$

In Stock, Qty 6

0

76

Honda 95701-08065-00

BOLT, FLANGE (8X65)

$2.49

$

In Stock, Qty 5

0

77

Honda 95701-08070-08

BOLT, FLANGE (8X70)

$3.99

$

Usually ships in 3-6 days

0

78

Honda 95701-08090-08

BOLT, FLANGE (8X90)

$4.49

$

Usually ships in 3-6 days

0

79

Honda 95701-10016-00

BOLT, FLANGE (10X16)

$1.99

$

Usually ships in 3-6 days

0

80

Honda 96100-60010-00

BEARING, RADIAL BALL (6001)

$24.99

$

Usually ships in 3-6 days

0

81

Honda 96100-60020-00

BEARING, RADIAL BALL (6002)

$15.99

$

Usually ships in 3-6 days

0

82

Honda 96100-60030-00

BEARING, RADIAL BALL (6003)

$13.99

$

Usually ships in 3-6 days

0

83

Honda 96211-06000

SEE PART DETAILS - PRI; BALL, STEEL (#6) (3/16)

$0.99

$

In Stock, Qty 6

0

84

Honda 96211-07000

BALL, STEEL (#7) (7/32)

$1.99

$

Usually ships in 3-6 days

0

85

Honda 96211-08000

BALL, STEEL (#8) (1/4)

$1.99

$

Usually ships in 3-6 days
