HS828 K1 TA/C (SZAK) - Honda 28" Snow Blower, Made in Japan (SN: SZAK-2120001 - SZAK-9999999) DRIVEN PULLEY Parts Diagram

28" Snow Blower, Made in Japan

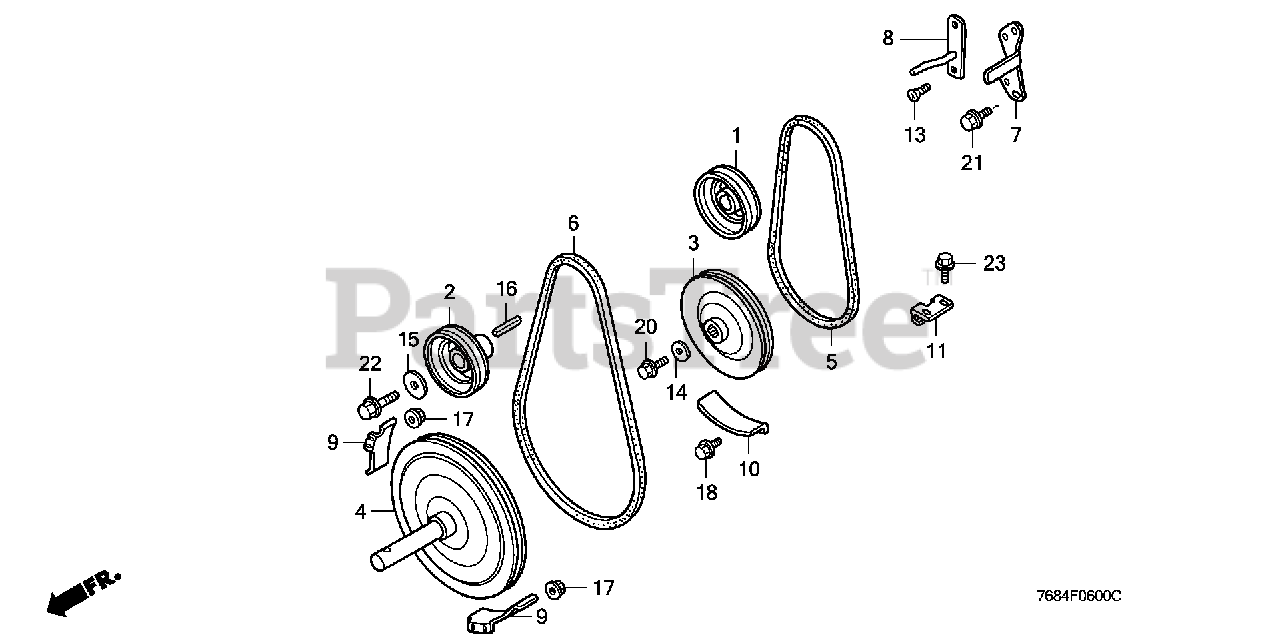

DRIVEN PULLEY Parts Diagram

  • Title

1

Honda 22411-738-000

PULLEY, WHEEL DRIVE

$48.99

$

In Stock, only 1 left!

0

2

Honda 22412-738-700

PULLEY, AUGER DRIVE

$48.99

$

In Stock, only 1 left!

0

3

Honda 22423-767-000

PULLEY, WHEEL DRIVEN (133MM)

$68.99

$

In Stock, only 1 left!

0

4

Honda 22424-768-020

SEE PART DETAILS - PRI; PULLEY, AUGER DRIVEN (198MM)

$87.99

$

Usually ships in 3-6 days

0

5

Honda 22431-768-003

V-BELT (SA-29)

$18.99

$

Usually ships in 3-6 days

0

6

Honda 22432-V03-000

SEE PART DETAILS - PRI; V-BELT (SB-35)

$37.99

$

In Stock, Qty 9

0

7

Honda 22441-767-000

STOPPER, R. BELT

$16.99

$

Usually ships in 3-6 days

0

8

Honda 22442-738-A00

STOPPER, L. BELT

$33.99

$

Usually ships in 3-6 days

0

9

Honda 22444-768-000

STOPPER, AUGER BELT

$13.99

$

Usually ships in 3-6 days

0

10

Honda 22451-767-000

PROTECTOR, BELT (WHEEL)

$6.99

$

Usually ships in 3-6 days

0

11

Honda 22453-767-C30

GUIDE, BELT

$21.99

$

Usually ships in 3-6 days

0

13

Honda 75556-605-010

BOLT, LOCK STRIKER

$8.49

$

Usually ships in 3-6 days

0

14

Honda 90417-115-000

WASHER, CAMSHAFT SIDE

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90534-706-010

WASHER, LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

16

Honda 90741-889-810

KEY (7X7X33) (OVER SIZE) (YELLOW)

$9.49

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

21

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

In Stock, Qty 5

0

23

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
