HS80 WA (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1000001 - SA1-1100000) CAMSHAFT Parts Diagram

Snow Blower, Made in Japan

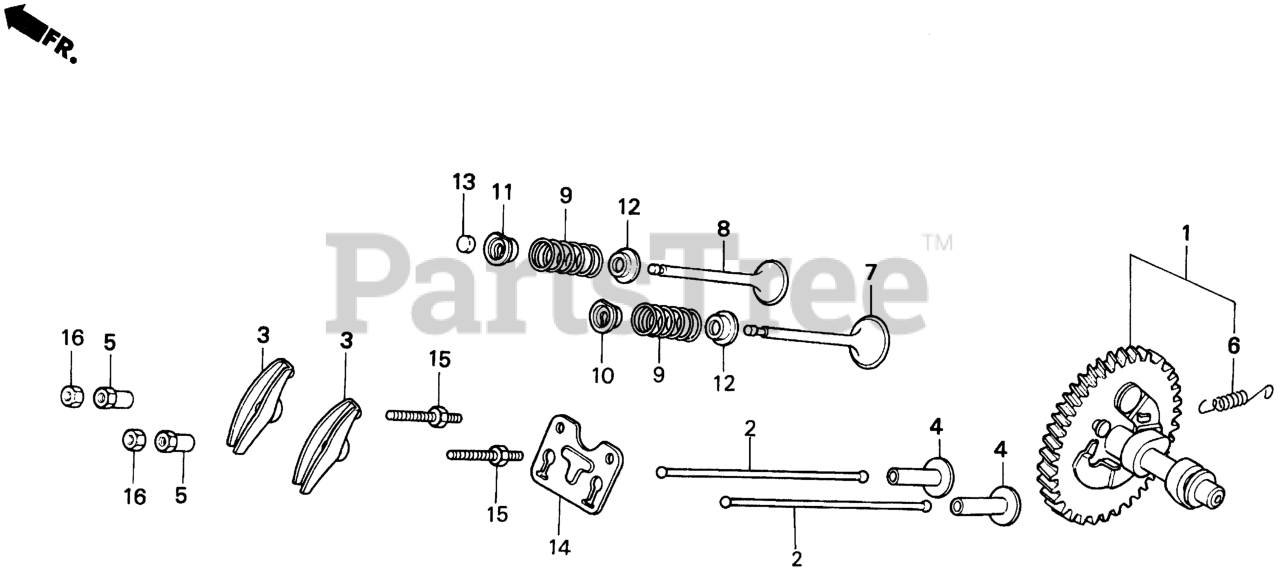

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZE2-010

SEE PART DETAILS - PRI; CAMSHAFT ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 14410-ZE2-013

SEE PART DETAILS - PRI; ROD, PUSH

$9.99

$

In Stock, only 3 left!

0

3

Honda 14431-ZE2-000

SEE PART DETAILS - SUP; ARM, VALVE ROCKER (Honda Code 2025591).
(Superseded to 14431-ZE2-010)

$9.49

$

In Stock, Qty 9

0

3

Honda 14431-ZE2-010

SEE PART DETAILS - PRI; ARM, VALVE ROCKER (Honda Code 6206254).

$9.49

$

In Stock, Qty 9

0

4

Honda 14441-ZE2-000

SEE PART DETAILS - PRI; LIFTER, VALVE

$16.99

$

In Stock, only 2 left!

0

5

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$5.99

$

In Stock, Qty 5

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN (Honda Code 1426907).

$3.49

$

In Stock, only 2 left!

0

7

Honda 14711-ZE2-000

VALVE, IN. (Honda Code 2025617).

$19.99

$

Usually ships in 3-6 days

0

8

Honda 14721-ZE2-000

VALVE, EX. (Honda Code 2025625).

$43.99

$

Usually ships in 3-6 days

0

9

Honda 14751-ZE2-003

SPRING, VALVE (Honda Code 2025633).

$5.49

$

In Stock, only 2 left!

0

10

Honda 14771-Z8S-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (EXHAUST SIDE)

$2.49

$

In Stock, only 2 left!

0

11

Honda 14773-ZE2-000

SEE PART DETAILS - SUP; RETAINER, EX. VALVE SPRING

$2.49

$

In Stock, only 2 left!

0

12

Honda 14775-ZE2-010

SEAT, VALVE SPRING (Honda Code 2157485).

$3.99

$

In Stock, only 2 left!

0

13

Honda 14781-ZE2-000

ROTATOR, VALVE (Honda Code 2025666).

$5.99

$

In Stock, only 1 left!

0

14

Honda 14791-ZE2-000

PLATE, PUSH ROD GUIDE

$4.49

$

Usually ships in 3-6 days

0

14

Honda 14791-ZE2-010

SEE PART DETAILS - PRI; PLATE, PUSH ROD GUIDE (Honda Code 3707494).

$4.49

$

In Stock, only 2 left!

0

15

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$8.49

$

In Stock, only 4 left!

0

16

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0
