HS80 TA (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1000001 - SA1-1100000) STARTER MOTOR (1171449-) Parts Diagram

Snow Blower, Made in Japan

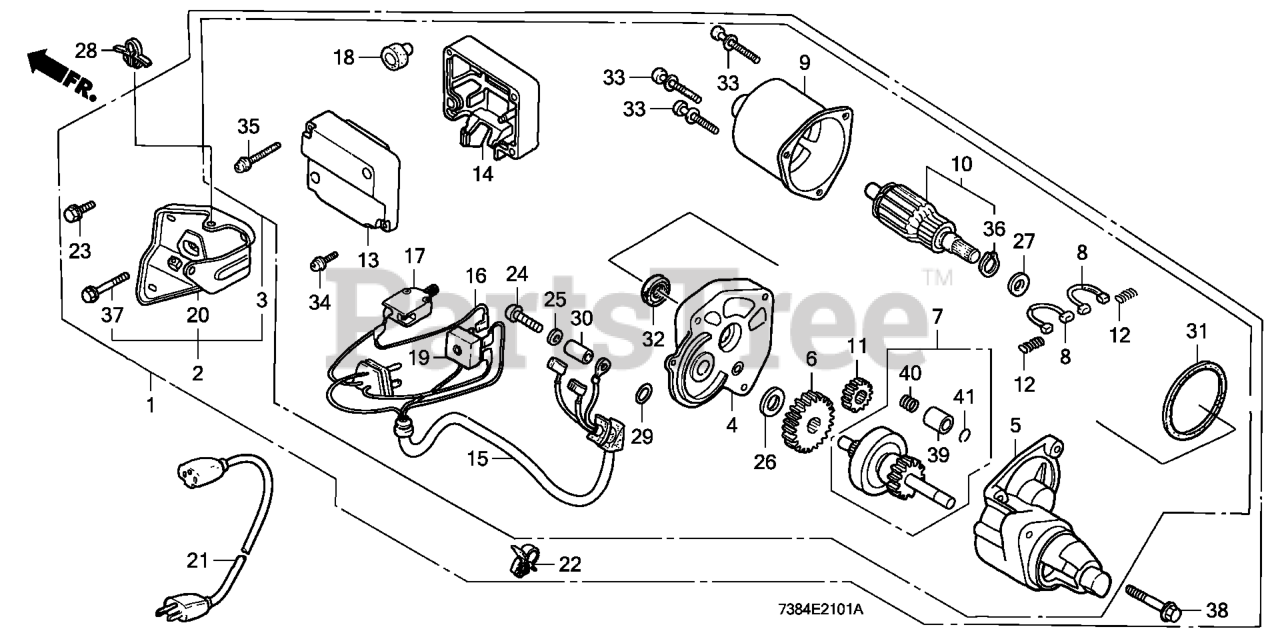

STARTER MOTOR (1171449-) Parts Diagram

  • Title

1

Honda 06312-ZE2-800

STARTER KIT, SELF (A.C.) Use from Engine SN 1171449.

Note: (Optional) Use from Engine SN 1171449.

$

$

Currently unavailable

2

Honda 31200-ZE2-804

STARTER MOTOR ASSY. (A.C.)

Note: (Optional) Use from Engine SN 1171449.

$1060.99

$

Usually ships in 3-6 days

0

3

Honda 31210-ZE2-801

MOTOR ASSY., STARTER (A.C.) Use from Engine SN 1171449.

Note: (Optional) Use from Engine SN 1171449.

$

$

Not available

4

Honda 31211-ZE1-821

HOUSING, CENTER Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$111.99

$

Usually ships in 3-6 days

0

5

Honda 31212-ZE2-801

HOUSING, PINION Use from Engine SN 1171449.

Note: (Optional) Use from Engine SN 1171449.

$222.99

$

Usually ships in 3-6 days

0

6

Honda 31213-ZE1-781

GEAR, REDUCTION Use up to Engine SN 2056819.

Note: (Optional) Use from Engine SN 1171449.

$96.99

$

Usually ships in 3-6 days

0

7

Honda 31214-ZE2-801

CLUTCH Use from Engine SN 1171449.

Note: (Optional) Use from Engine SN 1171449.

$252.99

$

Usually ships in 3-6 days

0

8

Honda 31215-ZE1-821

BRUSH Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$12.99

$

Usually ships in 3-6 days

0

9

Honda 31216-ZE1-821

YOKE Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$77.99

$

Usually ships in 3-6 days

0

10

Honda 31217-ZE2-802

ARMATURE Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$134.99

$

Usually ships in 3-6 days

0

11

Honda 31218-ZE1-781

GEAR, DRIVE Use up to Engine SN 2056819.

Note: (Optional) Use from Engine SN 1171449.

$57.99

$

Usually ships in 3-6 days

0

12

Honda 31219-ZE1-821

SPRING, BRUSH RETURN Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$4.49

$

Usually ships in 3-6 days

0

13

Honda 31601-ZE1-821

COVER Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$21.99

$

Usually ships in 3-6 days

0

14

Honda 31602-ZE1-821

CASE Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$20.99

$

Usually ships in 3-6 days

0

15

Honda 31605-ZE1-821

WIRE Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$95.99

$

Usually ships in 3-6 days

0

16

Honda 31606-ZE1-781

SUB-WIRE Use up to Engine SN 2056819.

Note: (Optional) Use from Engine SN 1171449.

$14.99

$

Usually ships in 3-6 days

0

17

Honda 31611-ZE1-781

SWITCH, STARTER (Honda Code 2299584). (A.C. 380V-16A)

Note: (Optional) Use from Engine SN 1171449.

$73.99

$

Usually ships in 3-6 days

0

17

Honda 31611-ZE1-822

SWITCH, STARTER (Honda Code 2773141). (A.C. 250V-16A)

Note: (Optional) Use from Engine SN 1171449.

$73.99

$

Usually ships in 3-6 days

0

18

Honda 31612-ZE1-781

CAP Use up to Engine SN 2056819.

Note: (Optional) Use from Engine SN 1171449.

$9.49

$

Usually ships in 3-6 days

0

19

Honda 31614-ZE1-781

DIODE Use up to Engine SN 2056819.

Note: (Optional) Use from Engine SN 1171449.

$97.99

$

Usually ships in 3-6 days

0

20

Honda 31617-ZE2-781

BRACKET, SWITCH BOX Use up to Engine SN 1171448.

Note: (Optional) Use from Engine SN 1171449.

$22.99

$

Usually ships in 3-6 days

0

21

Honda 32410-ZE1-780

WIRE, POWER Use up to Engine SN 2056819.

Note: (Optional) Use from Engine SN 1171449.

$

$

Currently unavailable

22

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

Note: (Optional) Use from Engine SN 1171449.

$2.49

$

In Stock, only 1 left!

0

23

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: (Optional) Use from Engine SN 1171449.

$1.99

$

In Stock, Qty 20+

0

24

Honda 90101-ZE1-821

SCREW, TRUSS (4X30) Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$3.49

$

Usually ships in 3-6 days

0

25

Honda 90401-ZE1-821

WASHER, STAR (4MM) Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$2.49

$

Usually ships in 3-6 days

0

26

Honda 90402-ZE1-821

WASHER (A) Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$4.49

$

Usually ships in 3-6 days

0

27

Honda 90403-ZE1-821

WASHER (B) Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$4.49

$

Usually ships in 3-6 days

0

29

Honda 91301-ZE1-821

O-RING Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$2.49

$

Usually ships in 3-6 days

0

30

Honda 91502-ZE1-821

COLLAR Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$3.99

$

Usually ships in 3-6 days

0

31

Honda 91601-ZE1-821

GASKET Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$7.99

$

Usually ships in 3-6 days

0

32

Honda 91602-ZE1-781

OIL SEAL Use up to Engine SN 2056819.

Note: (Optional) Use from Engine SN 1171449.

$5.49

$

In Stock, only 1 left!

0

33

Honda 93892-05030-18

SCREW-WASHER (5X30) Use up to Engine SN 2056819.

Note: (Optional) Use from Engine SN 1171449.

$1.49

$

Usually ships in 3-6 days

0

34

Honda 93893-04020-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X20) (Honda Code 1191089).

Note: (Optional) Use from Engine SN 1171449.

$1.49

$

Usually ships in 3-6 days

0

35

Honda 93893-04030-18

SEE PART DETAILS - PRI; SCREW-WASHER (4X30) (Honda Code 2299683).

Note: (Optional) Use from Engine SN 1171449.

$1.49

$

Usually ships in 3-6 days

0

36

Honda 94510-12000

CIRCLIP (OUTER) (12MM) Use up to Engine SN 2056819.

Note: (Optional) Use from Engine SN 1171449.

$2.49

$

In Stock, only 3 left!

0

37

Honda 95701-06040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2105872).

Note: (Optional) Use from Engine SN 1171449.

$2.49

$

Usually ships in 3-6 days

0

38

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

Note: (Optional) Use from Engine SN 1171449.

$2.99

$

In Stock, only 3 left!

0

39

Honda 31221-ZE8-811

STOPPER, PINION Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$70.99

$

Usually ships in 3-6 days

0

40

Honda 31223-ZE8-811

SEE PART DETAILS - PRI; SPRING, COIL (Honda Code 2694875).

Note: (Optional) Use from Engine SN 1171449.

$7.49

$

Usually ships in 3-6 days

0

41

Honda 90602-ZE8-811

RING, RETAINING Use from Engine SN 2056820.

Note: (Optional) Use from Engine SN 1171449.

$2.49

$

Usually ships in 3-6 days

0
