HS80 TA (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1000001 - SA1-1100000) FRICTION DISK Parts Diagram

Snow Blower, Made in Japan

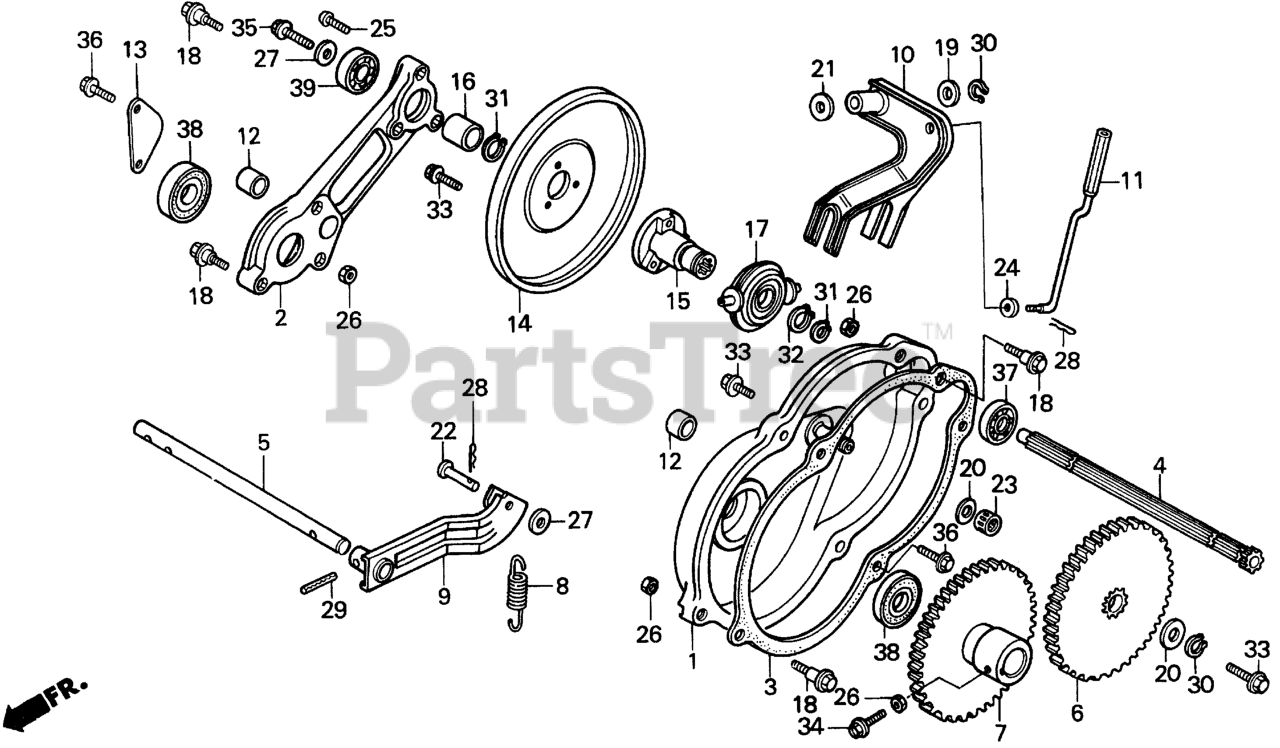

FRICTION DISK Parts Diagram

  • Title

1

Honda 21110-732-000

CASE, L. TRANSMISSION (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 21211-732-010

CASE, R. TRANSMISSION

Note: Use up to Frame SN 1023600.

$

$

Currently unavailable

2

Honda 21211-738-E00

CASE, R. TRANSMISSION (NOT AVAILABLE)

Note: Use from Frame SN 1023601.

$

$

Currently unavailable

3

Honda 21281-732-000

GASKET, TRANSMISSION (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 23111-736-000

SHAFT, FRICTION DISK

$

$

Currently unavailable

5

Honda 23241-736-000

SHAFT, DISK HOLDER

$

$

Not available

6

Honda 23430-732-000

GEAR, COUNTER

$

$

Currently unavailable

7

Honda 23440-732-000

GEAR, FINAL (NOT AVAILABLE)

$

$

Not available

8

Honda 24466-732-670

SPRING, DRIVE DISK RETURN (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 40310-732-671

ARM, CLUTCH

$

$

Not available

10

Honda 40311-732-010

ARM, CHANGE

$61.99

$

Usually ships in 3-6 days

0

11

Honda 40312-738-A00

JOINT, CHANGE

$

$

Currently unavailable

12

Honda 42317-732-000

BUSH, DRIVE DISK SHAFT

$

$

Not available

13

Honda 51116-732-000

PLATE, DISK HOLDER SHAFT

$

$

Currently unavailable

14

Honda 75010-732-003

DISK, FRICTION

$78.99

$

In Stock, only 1 left!

0

15

Honda 75011-732-010

BOSS, FRICTION DISK (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 75012-732-000

COLLAR, FRICTION

$

$

Currently unavailable

17

Honda 75015-732-000

ROLLER (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 90004-732-000

BOLT, TRANSMISSION SETTING

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90433-958-000

WASHER, THRUST (12MM)

$

$

Not available

20

Honda 90456-729-300

WASHER C, THRUST (12MM) (0.7)

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90459-107-000

WASHER, THRUST (12MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90752-732-000

PIN, CLUTCH ARM

$5.49

$

Usually ships in 3-6 days

0

23

Honda 91001-732-000

BEARING, NEEDLE (12MM)

$

$

Not available

24

Honda 91551-732-000

COLLAR, CHANGE JOINT

$3.49

$

Usually ships in 3-6 days

0

25

Honda 93500-06018-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X18)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

26

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

$1.99

$

In Stock, Qty 20+

0

27

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

28

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 11

0

29

Honda 94305-60252

PIN, SPRING (6X25)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 94510-12000

CIRCLIP (OUTER) (12MM) Use up to Engine SN 2056819.

$2.49

$

In Stock, only 3 left!

0

31

Honda 94510-15000

CIRCLIP (OUTER) (15MM)

$1.49

$

In Stock, Qty 9

0

32

Honda 94510-22000

CIRCLIP (OUTER) (22MM)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

34

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, only 3 left!

0

35

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0

36

Honda 95700-06018-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X18)
(Superseded to 95701-06018-00)

$2.49

$

In Stock, Qty 7

0

36

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 7

0

37

Honda 96140-60020-10

BEARING, RADIAL BALL

$19.99

$

Usually ships in 3-6 days

0

38

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$23.99

$

In Stock, Qty 7

0

39

Honda 96150-62010-10

BEARING, RADIAL BALL (6201UU) (Honda Code 1325299).

$16.99

$

Usually ships in 3-6 days

0
