HS80 K1 WA (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1100001 - SA1-9999999) HS80 CRANKCASE COVER K-K1 Parts Diagram

Snow Blower, Made in Japan

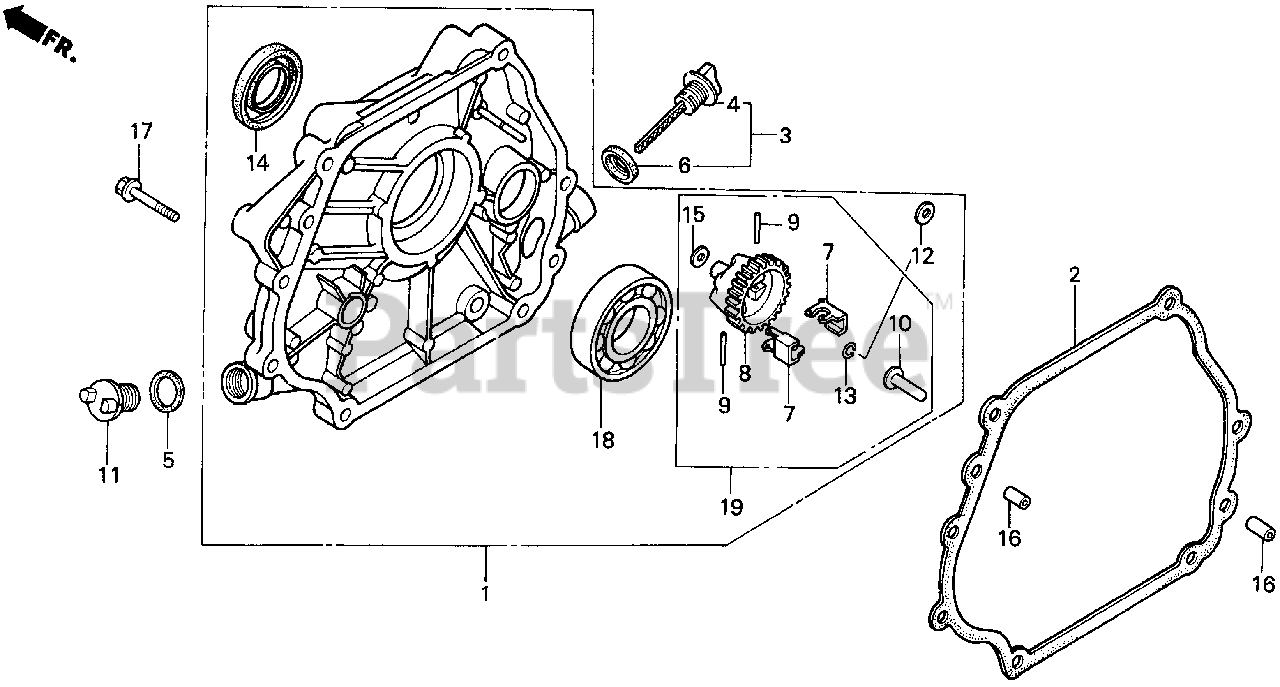

HS80 CRANKCASE COVER K-K1 Parts Diagram

  • Title

1

Honda 11300-ZE2-000

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE (S-TYPE)
(Superseded to 11300-Z1D-000)

$285.99

$

Usually ships in 3-6 days

0

1

Honda 11300-ZE2-020

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE
(Superseded to 11300-Z1D-000)

$285.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE2-306

SEE PART DETAILS - SUP; GASKET, CASE COVER
(Superseded to 11381-ZE2-801)

$11.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE2-800

SEE PART DETAILS - PRI; GASKET, CASE COVER
(Superseded to 11381-ZE2-801)

$11.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE2-801

SEE PART DETAILS - PRI; GASKET, CASE COVER

$11.99

$

Usually ships in 3-6 days

0

3

Honda 15600-735-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

$8.49

$

Usually ships in 3-6 days

0

4

Honda 15620-735-003

CAP, OIL FILLER

$7.49

$

In Stock, only 1 left!

0

5

Honda 15621-896-010

GASKET, OIL FILLER CAP

$5.49

$

In Stock, Qty 5

0

6

Honda 15625-ZE1-000

SEE PART DETAILS - SUP; GASKET, OIL FILLER CAP
(Superseded to 15625-ZE1-003)

$3.49

$

In Stock, only 2 left!

0

6

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 2 left!

0

7

Honda 16511-ZE2-000

WEIGHT, GOVERNOR

$3.99

$

Usually ships in 3-6 days

0

8

Honda 16512-ZE2-000

HOLDER, GOVERNOR WEIGHT

$19.99

$

Usually ships in 3-6 days

0

9

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

$3.99

$

In Stock, Qty 5

0

10

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, Qty 5

0

11

Honda 15620-ZG4-910

SEE PART DETAILS - PRI; CAP, OIL FILLER

$4.49

$

Usually ships in 3-6 days

0

11

Honda 25611-735-000

SEE PART DETAILS - SUP; CAP, OIL HOLE
(Superseded to 15620-ZG4-910)

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90473-147-000

SEE PART DETAILS - PRI; WASHER (6X16)

$1.99

$

In Stock, only 2 left!

0

13

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 7

0

13

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER

Note: Use up to Engine SN 1287216.

$1.99

$

Usually ships in 3-6 days

0

14

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

Usually ships in 3-6 days

0

15

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 9

0

16

Honda 90701-HC4-000

PIN, DOWEL (8X12)

Note: Use from Engine SN 1342882.

$3.99

$

In Stock, only 2 left!

0

16

Honda 94301-08120

PIN A, DOWEL (8X12)

Note: Use from Engine SN 1246817 to 1342881.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 94301-08140

PIN A, DOWEL (8X14)

Note: Use up to Engine SN 1246816.

$2.99

$

In Stock, Qty 10

0

17

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, Qty 5

0

18

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

$30.99

$

In Stock, only 1 left!

0

19

Honda 06165-ZE2-000

SEE PART DETAILS - SUP; GOVERNOR KIT (STD)
(Superseded to 06165-ZE2-020)

$18.99

$

Usually ships in 3-6 days

0

19

Honda 06165-ZE2-010

SEE PART DETAILS - SUP; GOVERNOR KIT (STD)
(Superseded to 06165-ZE2-020)

$18.99

$

Usually ships in 3-6 days

0

19

Honda 06165-ZE2-020

SEE PART DETAILS - PRI; GOVERNOR KIT (STD)

$18.99

$

Usually ships in 3-6 days

0
