HS80 K1 WA (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1100001 - SA1-9999999) AUGER HOUSING Parts Diagram

Snow Blower, Made in Japan

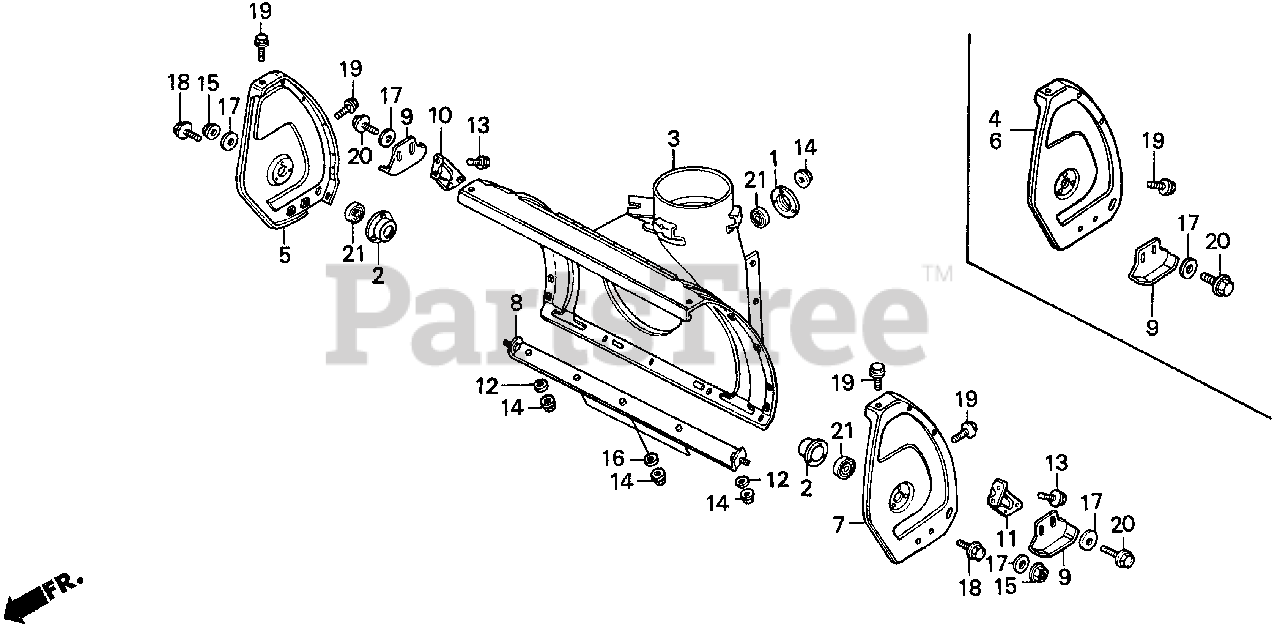

AUGER HOUSING Parts Diagram

  • Title

1

Honda 72611-730-000

HOLDER, L. AUGER

$19.99

$

Usually ships in 3-6 days

0

2

Honda 73256-732-000

HOLDER, AUGER BEARING

$22.99

$

In Stock, only 2 left!

0

3

Honda 76100-738-C10

HOUSING, AUGER (14")

$

$

Currently unavailable

4

Honda 76102-732-010

COVER, R. AUGER SIDE (14")

$

$

Not available

6

Honda 76103-732-010

COVER, L. AUGER SIDE (14")

$

$

Not available

8

Honda 76151-732-000

GUARD, AUGER HOUSING

$

$

Not available

9

Honda 76153-736-000

SEE PART DETAILS - SUP; SKID, AUGER
(Superseded to 76153-736-010)

$27.99

$

In Stock, only 3 left!

0

9

Honda 76153-736-010

SEE PART DETAILS - PRI; SKID, AUGER

$27.99

$

In Stock, only 3 left!

0

12

Honda 90474-704-000

WASHER (6X17)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

16

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

17

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

19

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

19

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

20

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

21

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

In Stock, Qty 5

0
