HS80 K1 TA (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1100001 - SA1-9999999) HS80 CARBURETOR K-K1 Parts Diagram

Snow Blower, Made in Japan

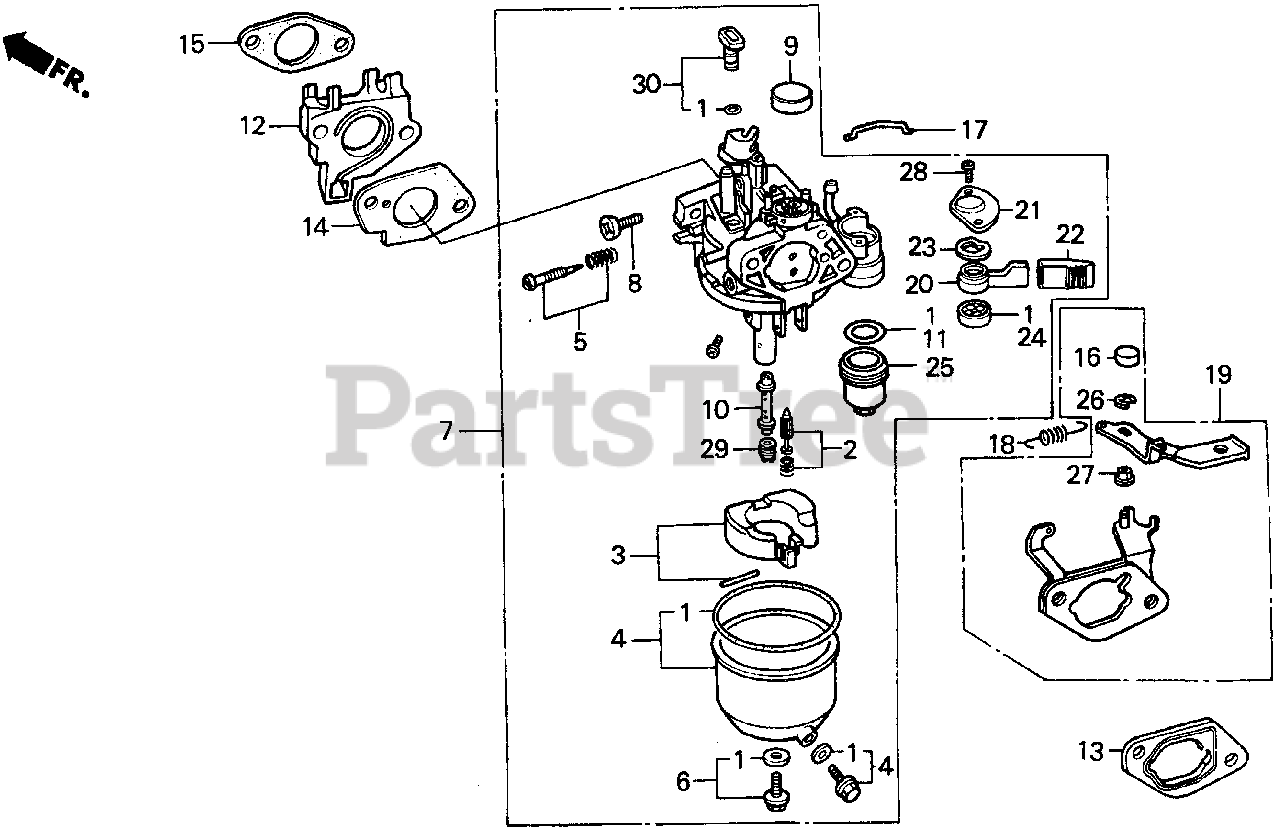

HS80 CARBURETOR K-K1 Parts Diagram

  • Title

1

Honda 16010-ZE2-811

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-ZE2-812)

$19.99

$

In Stock, Qty 12

0

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET

$19.99

$

In Stock, Qty 12

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$45.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZA0-931

FLOAT SET

$51.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE2-005

SEE PART DETAILS - SUP; CHAMBER SET, FLOAT

$

$

Currently unavailable

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT

$46.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$15.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16100-ZE2-H21

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE17A C)
(Superseded to 16100-ZE2-H23)

Note: Use up to Engine SN 1100276.

$144.99

$

Usually ships in 3-6 days

0

7

Honda 16100-ZE2-H22

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE17A D)
(Superseded to 16100-ZE2-H23)

Note: Use from Engine SN 1100277 to 1388430.

$144.99

$

Usually ships in 3-6 days

0

7

Honda 16100-ZE2-H22

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE17A D)
(Superseded to 16100-ZE2-H23)

Note: Use up to Engine SN 1100276.

$144.99

$

Usually ships in 3-6 days

0

7

Honda 16100-ZE2-H23

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE17A E)

Note: Use from Engine SN 1100277.

$144.99

$

Usually ships in 3-6 days

0

7

Honda 16100-ZE2-H23

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE17A E)

Note: Use up to Engine SN 1100276.

$144.99

$

Usually ships in 3-6 days

0

8

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

9

Honda 16148-141-881

CAP, CHOKE LEVER DUST

$6.99

$

In Stock, only 1 left!

0

10

Honda 16166-ZE2-781

NOZZLE, MAIN

$35.99

$

Usually ships in 3-6 days

0

11

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 1 left!

0

12

Honda 16211-ZE2-000

SEE PART DETAILS - SUP; INSULATOR, CARBURETOR
(Superseded to 16211-ZE2-010)

$10.99

$

In Stock, Qty 10

0

13

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

Note: Use from Engine SN 1095732 to 1160853.

$11.99

$

In Stock, only 3 left!

0

13

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

Note: Use from Engine SN 1160854.

$11.99

$

In Stock, only 3 left!

0

14

Honda 16221-ZA0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZA0-800)

$2.49

$

In Stock, Qty 20+

0

14

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

15

Honda 16223-ZA0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 19

0

16

Honda 16252-ZA1-000

SEE PART DETAILS - SUP; CAP, CHOKE LEVER
(Superseded to 16252-ZA1-010)

$1.99

$

In Stock, only 2 left!

0

16

Honda 16252-ZA1-010

SEE PART DETAILS - PRI; CAP, CHOKE LEVER

$1.99

$

In Stock, only 2 left!

0

17

Honda 16264-ZE2-780

ROD, CHOKE

$2.49

$

In Stock, only 4 left!

0

18

Honda 16268-893-000

SPRING, CHOKE RETURN

Note: Use from Engine SN 1026412.

$4.49

$

In Stock, only 1 left!

0

18

Honda 16562-896-000

SPRING, THROTTLE RETURN

Note: Use up to Engine SN 1026411.

$4.99

$

Usually ships in 3-6 days

0

19

Honda 16590-ZE2-780

SEE PART DETAILS - SUP; STAY ASSY., CHOKE CONTROL

$

$

Currently unavailable

20

Honda 16953-ZE1-405

SEE PART DETAILS - PRI; LEVER, VALVE

$

$

Not available

21

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

22

Honda 16955-ZE2-H21

CAP, LEVER

Note: Use from Engine SN BE17A C.

$12.99

$

Usually ships in 3-6 days

0

23

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, VALVE LEVER

$4.49

$

Usually ships in 3-6 days

0

24

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE
(Superseded to 16957-ZE1-812)

$4.49

$

In Stock, Qty 20+

0

24

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE

$4.49

$

In Stock, Qty 20+

0

25

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$23.99

$

In Stock, only 2 left!

0

26

Honda 38689-680-960

E-RING (4MM)

$3.99

$

Usually ships in 3-6 days

0

27

Honda 91502-ZA0-310

SEE PART DETAILS - PRI; BUSH, CHOKE LEVER

$3.49

$

Usually ships in 3-6 days

0

28

Honda 93500-03008-0H

SCREW, PAN (3X8)

$0.99

$

In Stock, Qty 8

0

29

Honda 99101-124-0880

JET, MAIN (#88)

$12.99

$

Usually ships in 3-6 days

0

29

Honda 99101-124-0900

JET, MAIN (#90)

$12.99

$

Usually ships in 3-6 days

0

29

Honda 99101-124-0920

JET, MAIN (#92)

$12.99

$

Usually ships in 3-6 days

0

30

Honda 99204-ZE2-0380

JET SET, PILOT (#38)

$23.99

$

Usually ships in 3-6 days

0
