HS80 K1 TA (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1100001 - SA1-9999999) ENGINE BED Parts Diagram

Snow Blower, Made in Japan

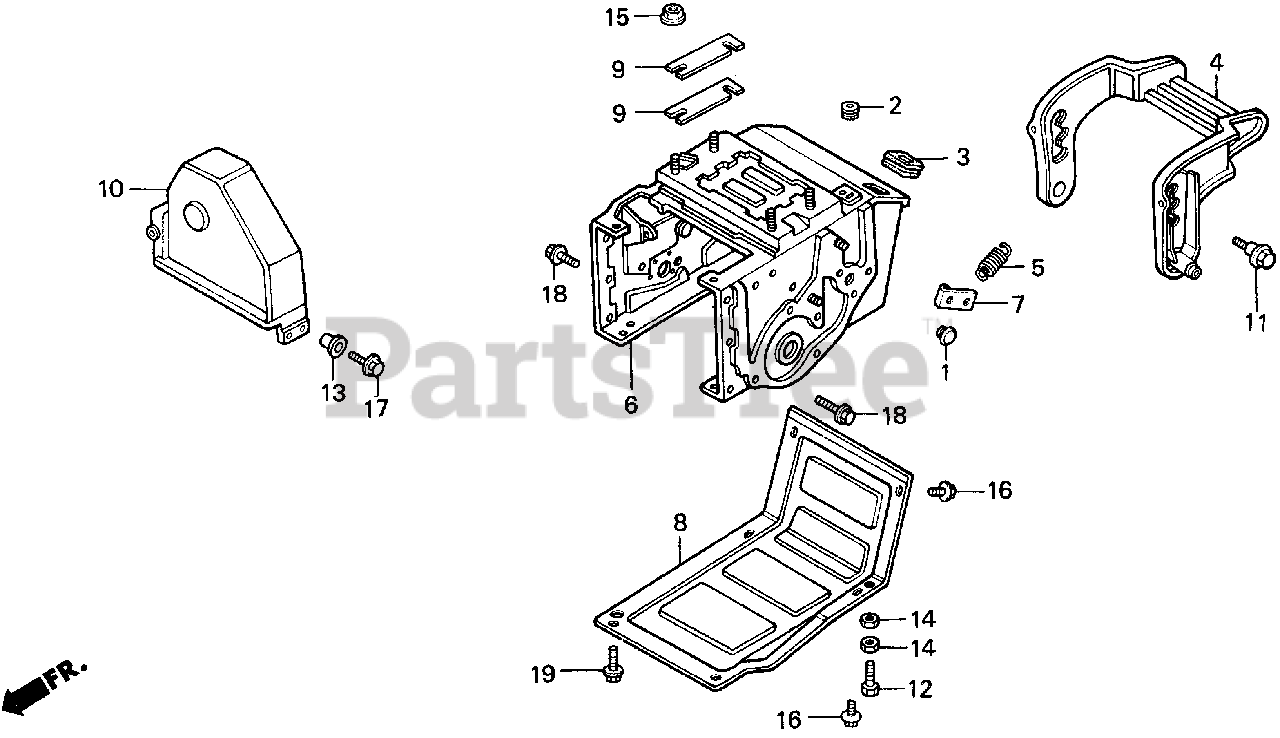

ENGINE BED Parts Diagram

  • Title

1

Honda 22541-960-770

GROMMET, GUIDE ROLLER

$

$

Currently unavailable

2

Honda 36037-657-000

SEE PART DETAILS - PRI; GROMMET A, TUBE

$9.99

$

Usually ships in 3-6 days

0

3

Honda 40320-736-A00

SEAL, CHANGE ROD

$

$

Not available

4

Honda 42763-738-000

PLATE, HEIGHT ADJUSTING (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 42768-732-901

SPRING, HEIGHT ADJUSTING

$

$

Currently unavailable

6

Honda 51110-738-A00

BED, ENGINE

$

$

Currently unavailable

7

Honda 51114-736-000

HOOK, SPRING (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 51115-732-000

COVER (LOWER) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 63610-738-A10

COVER, BELT (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 90003-732-900

BOLT, HEIGHT ADJUST SETTING

$6.49

$

Usually ships in 3-6 days

0

12

Honda 90103-732-000

BOLT, ADJUSTING

$4.99

$

In Stock, only 1 left!

0

13

Honda 90522-028-000

WASHER, CHAIN CASE SETTING

$3.99

$

Usually ships in 3-6 days

0

14

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

16

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

17

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 5

0

18

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

18

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

19

Honda 95700-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40)
(Superseded to 95701-08040-00)

$1.99

$

In Stock, Qty 20+

0

19

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0
