HS724 WA/A (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-1030001 - SZBE-9999999) FLYWHEEL@IGNITION COIL Parts Diagram

24" Snow Blower, Made in Japan

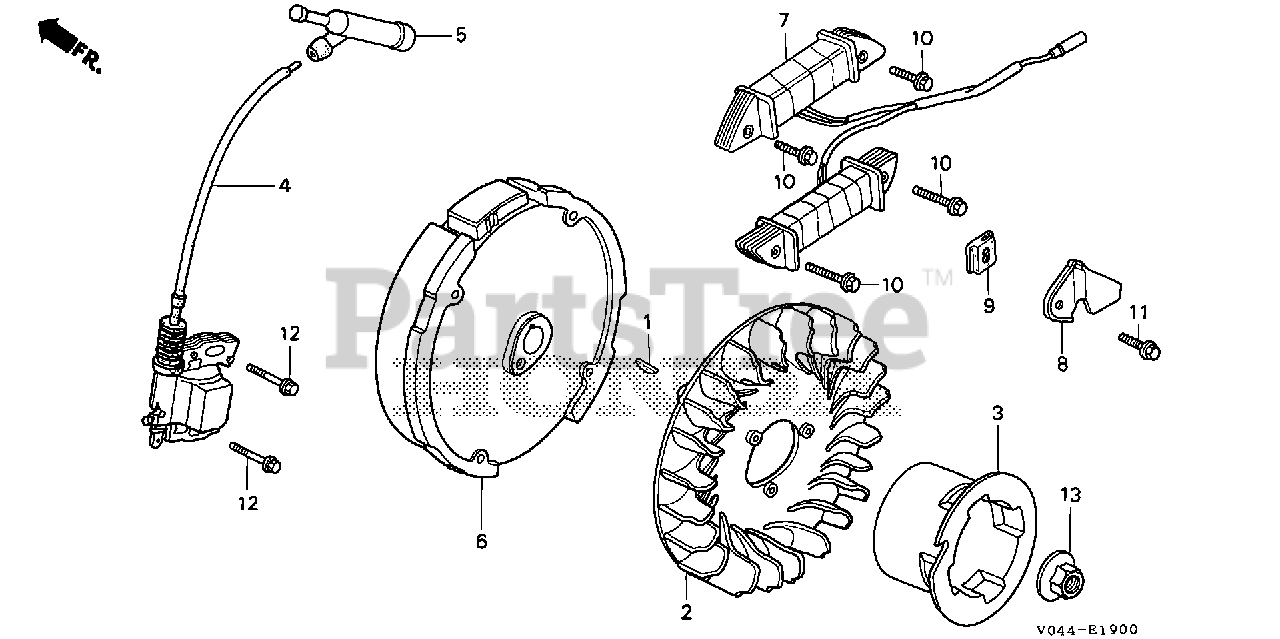

FLYWHEEL@IGNITION COIL Parts Diagram

  • Title
1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

$4.99

$

In Stock, Qty 7

0

2

Honda 19511-ZE1-000

FAN, COOLING (Honda Code 1428051).

$30.99

$

Usually ships in 3-6 days

0

3

Honda 28451-ZE1-711

PULLEY, STARTER

$35.99

$

Usually ships in 3-6 days

0

4

Honda 30500-ZE1-073

SEE PART DETAILS - PRI; COIL ASSY., IGNITION Use up to Engine SN 1530314.

$102.99

$

In Stock, only 1 left!

0

5

Honda 30700-ZE1-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3526837). (NICHIWA Y-EZ RTFM256)

$22.99

$

In Stock, only 1 left!

0

6

Honda 31110-ZL0-811

FLYWHEEL (LAMP)

$171.99

$

Usually ships in 3-6 days

0

7

Honda 31510-ZE1-711

COIL ASSY., LAMP (12V/50W) (Honda Code 2581544).

$156.99

$

In Stock, only 1 left!

0

8

Honda 31511-ZE1-000

CLAMP, WIRE (Honda Code 1497197).

$4.99

$

In Stock, only 2 left!

0

9

Honda 31512-ZE1-000

GROMMET, WIRE (Honda Code 1497205).

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, only 3 left!

0

11

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

13

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.99

$

Usually ships in 3-6 days

0
