HS724 WA/A (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-1030001 - SZBE-9999999) ENGINE BED Parts Diagram

24" Snow Blower, Made in Japan

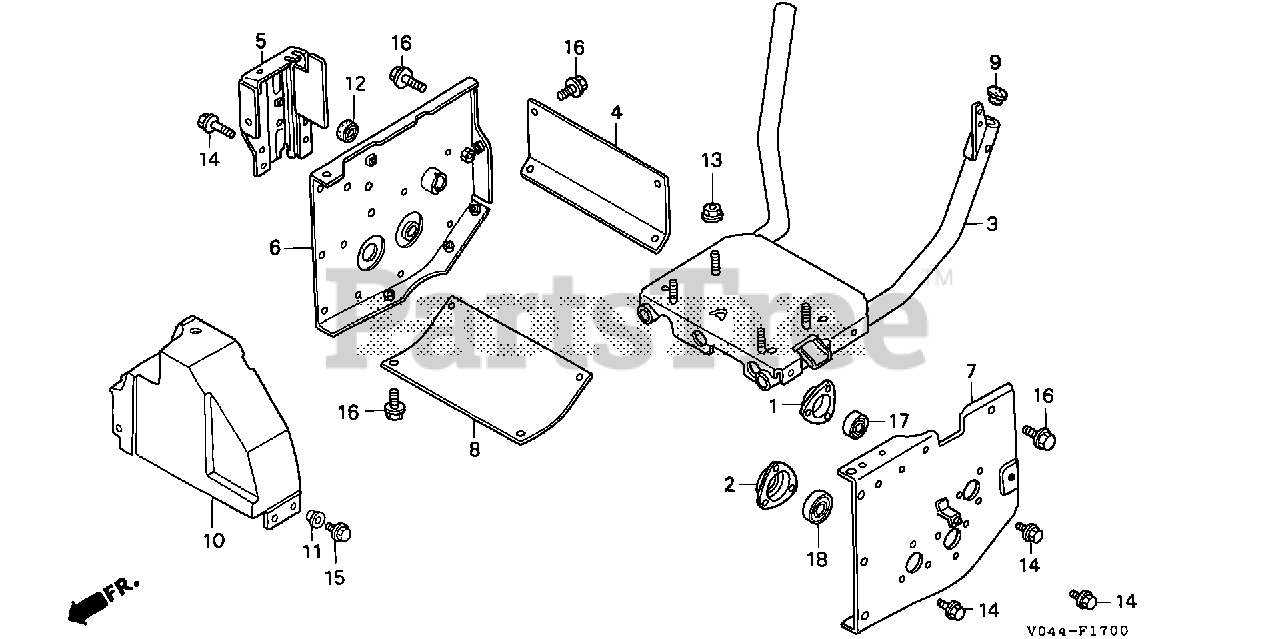

ENGINE BED Parts Diagram

  • Title

1

Honda 23384-767-000

HOLDER, BEARING

$18.99

$

Usually ships in 3-6 days

0

2

Honda 42316-767-000

HOLDER, WHEEL SHAFT BEARING

$24.99

$

In Stock, only 2 left!

0

3

Honda 51110-767-000

BED, ENGINE

$367.99

$

Usually ships in 3-6 days

0

4

Honda 51113-767-A10

STAY, ENGINE BED

$45.99

$

Usually ships in 3-6 days

0

5

Honda 51125-767-000

HOLDER, WIRE

$78.99

$

Usually ships in 3-6 days

0

6

Honda 51170-767-C30

STAY, R. ENGINE BED

$141.99

$

Usually ships in 3-6 days

0

7

Honda 51180-767-C30

STAY, L. ENGINE BED

$141.99

$

Usually ships in 3-6 days

0

8

Honda 51181-767-000

STAY, ENGINE BED (B)

$54.99

$

In Stock, only 2 left!

0

9

Honda 53115-732-000

CAP, HANDLE (LOWER)

$4.99

$

Usually ships in 3-6 days

0

10

Honda 63610-767-010

COVER, BELT

$48.99

$

Usually ships in 3-6 days

0

11

Honda 90522-028-000

WASHER, CHAIN CASE SETTING

$3.99

$

In Stock, only 4 left!

0

12

Honda 91252-767-C31

COVER, DUST (28MM)

$4.49

$

Usually ships in 3-6 days

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

14

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

15

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 8

0

16

Honda 95701-08012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X12) (Honda Code 2581379).

$1.49

$

In Stock, only 2 left!

0

17

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$24.99

$

In Stock, Qty 9

0

18

Honda 96150-62010-10

BEARING, RADIAL BALL (6201UU) (Honda Code 1325299).

$17.99

$

Usually ships in 3-6 days

0
