HS724 TA (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-1000001 - SZBE-1029999) HANDLEBAR Parts Diagram

24" Snow Blower, Made in Japan

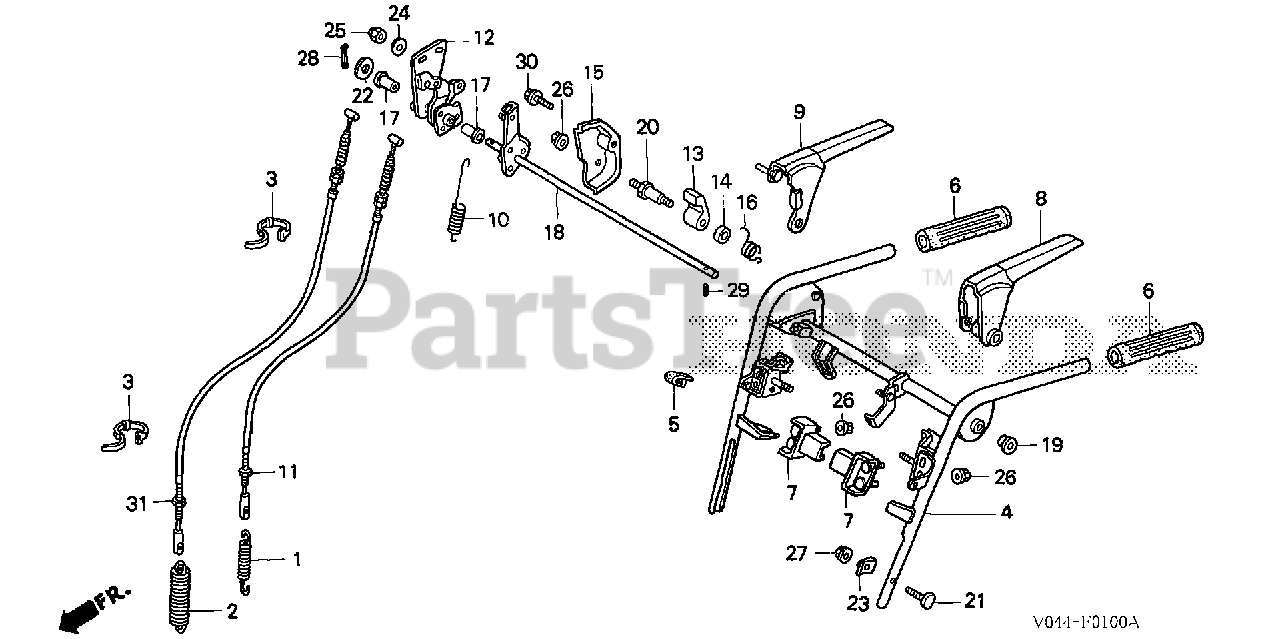

HANDLEBAR Parts Diagram

  • Title

1

Honda 24468-736-A01

SEE PART DETAILS - PRI; SPRING, TENSIONER ROLLER

$8.49

$

In Stock, Qty 7

0

2

Honda 24469-736-A00

SPRING, TENSIONER ROLLER (AUGER)

$13.99

$

In Stock, only 1 left!

0

3

Honda 90650-KV6-003

BAND, WIRE (95MM)

$4.99

$

Usually ships in 3-6 days

0

4

Honda 53110-767-A10

SEE PART DETAILS - SUP; PIPE, HANDLE (UPPER)
(Superseded to 53110-767-A11)

Note: Use up to Frame SN 1009830.

$416.99

$

Usually ships in 3-6 days

0

4

Honda 53110-767-A11

SEE PART DETAILS - PRI; PIPE, HANDLE (UPPER)

$416.99

$

Usually ships in 3-6 days

0

5

Honda 50319-736-A00

RUBBER, STOPPER

$4.49

$

Usually ships in 3-6 days

0

6

Honda 53321-708-000

GRIP, HANDLE

$19.99

$

In Stock, only 2 left!

0

7

Honda 54325-767-000

STOPPER, CHANGE LEVER

$20.99

$

Usually ships in 3-6 days

0

8

Honda 54415-738-E02

SEE PART DETAILS - SUP; LEVER, CLUTCH
(Superseded to 54415-738-E04)

$61.99

$

Usually ships in 3-6 days

0

8

Honda 54415-738-E03

SEE PART DETAILS - SUP; LEVER, CLUTCH
(Superseded to 54415-738-E04)

$61.99

$

Usually ships in 3-6 days

0

8

Honda 54415-738-E04

SEE PART DETAILS - PRI; LEVER, CLUTCH

$61.99

$

Usually ships in 3-6 days

0

9

Honda 54416-736-A03

SEE PART DETAILS - SUP; LEVER, AUGER CLUTCH
(Superseded to 54416-736-A05)

$61.99

$

Usually ships in 3-6 days

0

9

Honda 54416-736-A04

SEE PART DETAILS - SUP; LEVER, AUGER CLUTCH
(Superseded to 54416-736-A05)

$61.99

$

Usually ships in 3-6 days

0

9

Honda 54416-736-A05

SEE PART DETAILS - PRI; LEVER, AUGER CLUTCH

$61.99

$

Usually ships in 3-6 days

0

10

Honda 54418-738-A00

SPRING, CLUTCH LEVER

$7.49

$

In Stock, only 2 left!

0

11

Honda 54510-767-020

SEE PART DETAILS - SUP; CABLE, CLUTCH
(Superseded to 54510-767-030)

$25.99

$

Usually ships in 3-6 days

0

11

Honda 54510-767-030

SEE PART DETAILS - PRI; CABLE, CLUTCH

$25.99

$

Usually ships in 3-6 days

0

12

Honda 54520-736-A01

BOSS, CAM LOCK

$62.99

$

Usually ships in 3-6 days

0

13

Honda 54531-732-003

RATCHET, LEVER

$13.99

$

Usually ships in 3-6 days

0

14

Honda 54533-732-000

COLLAR, RATCHET

$5.49

$

Usually ships in 3-6 days

0

15

Honda 54535-767-000

COVER, RATCHET

$13.99

$

Usually ships in 3-6 days

0

16

Honda 54536-736-A00

SEE PART DETAILS - PRI; SPRING, RATCHET

$5.49

$

Usually ships in 3-6 days

0

17

Honda 54538-736-A01

BUSH (13X22.5) (GRAY)

$12.99

$

In Stock, only 1 left!

0

18

Honda 54550-738-E00

SHAFT, CLUTCH LEVER

$106.99

$

Usually ships in 3-6 days

0

19

Honda 54554-732-000

BUSH (14MM)

$10.99

$

Usually ships in 3-6 days

0

20

Honda 90105-732-000

BOLT, PIVOT (6MM)

$10.99

$

Usually ships in 3-6 days

0

21

Honda 90109-732-010

BOLT, HANDLE HOLDER

$16.99

$

Usually ships in 3-6 days

0

22

Honda 90412-329-000

WASHER, THRUST (10MM)
(Superseded to 90412-KZL-840)

$0.99

$

In Stock, only 2 left!

0

23

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, only 2 left!

0

24

Honda 90539-836-000

WASHER (6MM)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 94021-06020

NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

27

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

28

Honda 94201-30180

PIN, SPLIT (3.0X18)

$1.49

$

In Stock, only 1 left!

0

29

Honda 94305-40162

PIN, SPRING (4X16)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 8

0

31

Honda 54510-738-C13

SEE PART DETAILS - PRI; CABLE, CLUTCH

$29.99

$

Usually ships in 3-6 days

0

31

Honda 54510-767-000

SEE PART DETAILS - SUP; CABLE, CLUTCH
(Superseded to 54510-767-030)

Note: Use up to Frame SN 1002325.

$25.99

$

Usually ships in 3-6 days

0

31

Honda 54510-767-010

SEE PART DETAILS - SUP; CABLE, CLUTCH
(Superseded to 54510-767-030)

Note: Use up to Frame SN 1002325.

$25.99

$

Usually ships in 3-6 days

0

31

Honda 54510-767-020

SEE PART DETAILS - SUP; CABLE, CLUTCH
(Superseded to 54510-767-030)

Note: Use up to Frame SN 1002325.

$25.99

$

Usually ships in 3-6 days

0

31

Honda 54510-767-030

SEE PART DETAILS - PRI; CABLE, CLUTCH

Note: Use up to Frame SN 1002325.

$25.99

$

Usually ships in 3-6 days

0
