HS724 TA (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-1000001 - SZBE-1029999) CRAWLER Parts Diagram

24" Snow Blower, Made in Japan

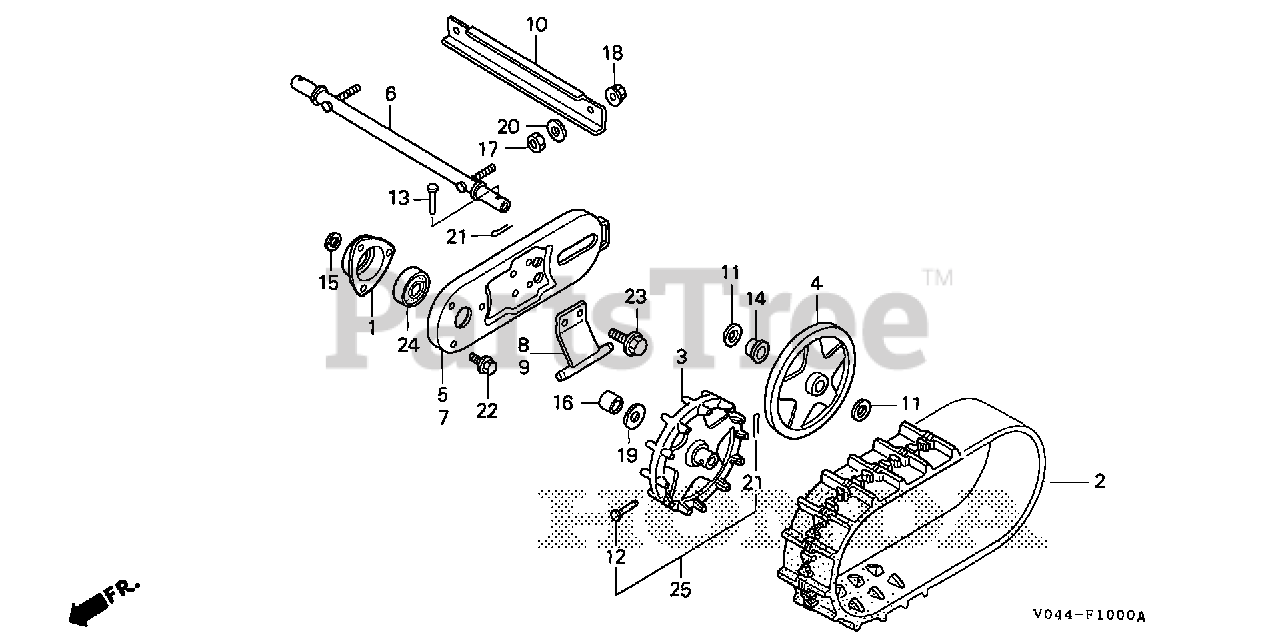

CRAWLER Parts Diagram

  • Title

1

Honda 42316-767-000

HOLDER, WHEEL SHAFT BEARING

$22.99

$

In Stock, only 2 left!

0

2

Honda 42755-738-E02

CRAWLER (12-60X20 B-122)

$217.99

$

Usually ships in 3-6 days

0

3

Honda 42756-768-000

SPROCKET, CRAWLER

$110.99

$

In Stock, only 1 left!

0

4

Honda 42757-V41-305

ROLLER, CRAWLER (COO)
(Superseded to 42757-768-000)

$66.99

$

In Stock, only 2 left!

0

5

Honda 42761-767-000

PLATE, R. CRAWLER

$140.99

$

Usually ships in 3-6 days

0

6

Honda 42770-767-010

PIPE, CRAWLER

$109.99

$

Usually ships in 3-6 days

0

7

Honda 42771-767-000

PLATE, L. CRAWLER

$140.99

$

Usually ships in 3-6 days

0

8

Honda 42772-767-000

GUIDE, R. CRAWLER

$31.99

$

Usually ships in 3-6 days

0

9

Honda 42773-767-000

GUIDE, L. CRAWLER

$31.99

$

Usually ships in 3-6 days

0

10

Honda 42774-767-000

BAR, CRAWLER PLATE

$47.99

$

Usually ships in 3-6 days

0

11

Honda 90403-952-770

WASHER, PLAIN (22MM)

$2.99

$

In Stock, only 3 left!

0

12

Honda 90701-732-000

PIN (6MM)

$5.99

$

In Stock, Qty 20+

0

13

Honda 90702-743-000

PIN (6MM)

$4.49

$

In Stock, Qty 5

0

14

Honda 91553-767-000

COLLAR, CRAWLER PIPE

$13.99

$

Usually ships in 3-6 days

0

15

Honda 91555-767-000

COLLAR, R. WHEEL SHAFT

$3.99

$

Usually ships in 3-6 days

0

16

Honda 91559-767-000

COLLAR, CRAWLER SPROCKET

$5.99

$

In Stock, only 2 left!

0

17

Honda 90002-S10-000

NUT, FLANGE (10MM)

$5.99

$

Usually ships in 3-6 days

0

18

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94101-20000

WASHER, PLAIN (20MM)

$1.99

$

In Stock, only 1 left!

0

20

Honda 94103-10000

WASHER, PLAIN (10MM)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 94201-30180

PIN, SPLIT (3.0X18)

$1.49

$

In Stock, Qty 20+

0

22

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

23

Honda 95701-08014-00

BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

24

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$23.99

$

In Stock, Qty 8

0

25

Honda 06907-732-000

PIN SET, CRAWLER

Note: (Optional).

$5.49

$

In Stock, Qty 20+

0
