HS724 TA (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-1000001 - SZBE-1029999) CRANKCASE COVER Parts Diagram

24" Snow Blower, Made in Japan

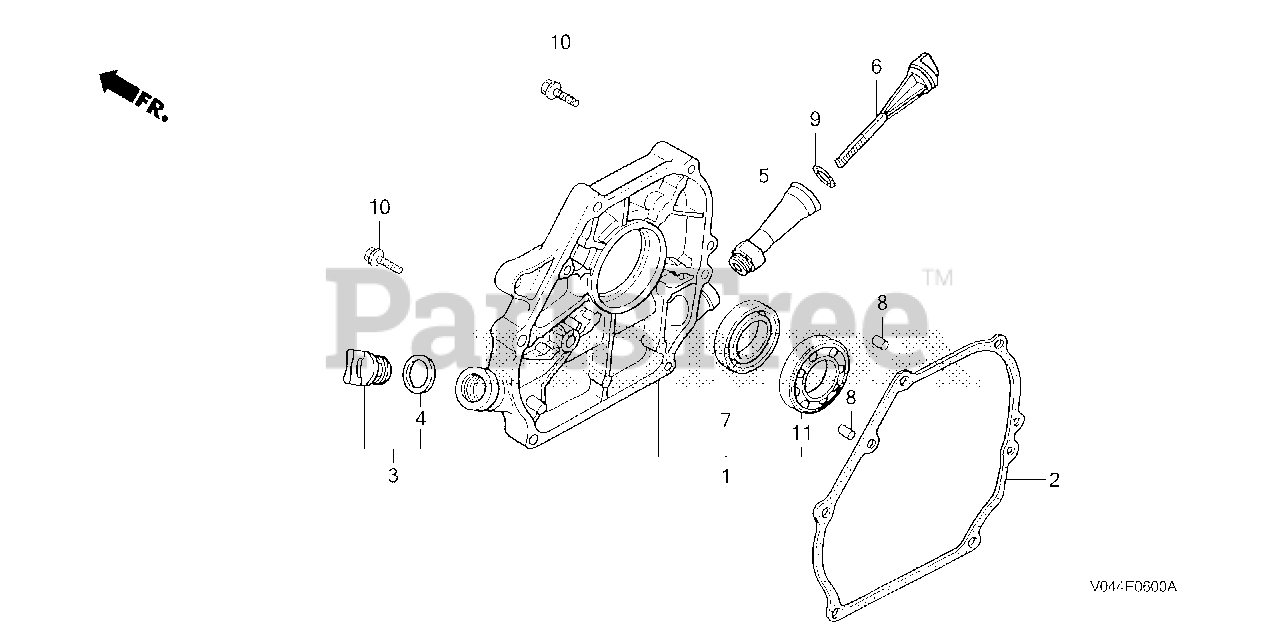

CRANKCASE COVER Parts Diagram

  • Title
1

Honda 11300-ZE1-020

COVER ASSY., CRANKCASE

$

$

Not available

2

Honda 11381-ZH8-801

GASKET, CASE COVER (NON-ASBESTOS)

Note: Use from Engine SN 2452680.

$7.49

$

In Stock, Qty 20+

0

2

Honda 11381-ZL0-000

GASKET, CASE COVER

Note: Use up to Engine SN 2452679.

$17.99

$

In Stock, only 1 left!

0

3

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

$6.99

$

In Stock, only 1 left!

0

4

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 1 left!

0

5

Honda 15640-730-010

SEE PART DETAILS - PRI; PIPE, OIL FILLER

$36.99

$

Usually ships in 3-6 days

0

6

Honda 15650-730-000

DIPSTICK, OIL

$11.99

$

Usually ships in 3-6 days

0

7

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (NOK)

$8.99

$

In Stock, Qty 8

0

8

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

9

Honda 94608-50000

O-RING (23X2.8)

$1.49

$

In Stock, only 3 left!

0

10

Honda 95701-08032-00

BOLT, FLANGE (8X32)

$1.99

$

In Stock, Qty 5

0

11

Honda 96100-62050-00

BEARING, RADIAL BALL (6205)

$24.99

$

In Stock, only 3 left!

0
