HS724 TA/A (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-1030001 - SZBE-9999999) CYLINDER HEAD Parts Diagram

24" Snow Blower, Made in Japan

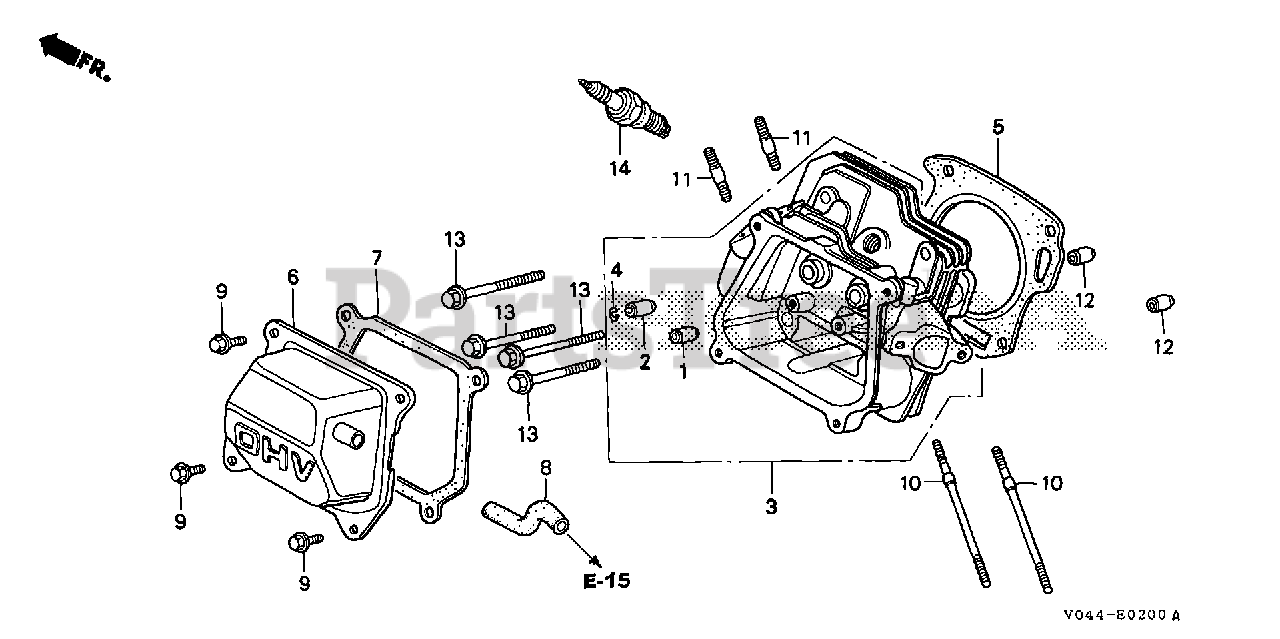

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE) Use from Engine SN 6324986.

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

2

Honda 12205-ZE1-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 1899848).

Note: (Optional).

$10.99

$

In Stock, only 2 left!

0

3

Honda 12210-ZL0-405

SEE PART DETAILS - PRI; CYLINDER HEAD
(Superseded to 12210-ZL0-425)

Note: Use up to Engine SN 2060339.

$79.99

$

In Stock, only 1 left!

0

3

Honda 12210-ZL0-415

CYLINDER HEAD
(Superseded to 12210-ZL0-425)

Note: Use from Engine SN 2060340.

$79.99

$

In Stock, only 1 left!

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE Use from Engine SN 1231803.

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZL0-003

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

$26.99

$

In Stock, only 3 left!

0

6

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

$18.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE1-000

GASKET, CYLINDER HEAD COVER (Honda Code 1426527).

$5.49

$

In Stock, Qty 20+

0

8

Honda 15721-ZE1-720

TUBE, BREATHER

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

10

Honda 90043-ZE1-020

SEE PART DETAILS - PRI; BOLT, STUD (6X109) (Honda Code 4588323).

$6.99

$

In Stock, only 2 left!

0

11

Honda 90047-ZE1-000

BOLT, STUD (8X32) (Honda Code 1431097).

$4.99

$

In Stock, only 2 left!

0

12

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

13

Honda 95701-08060-00

BOLT, FLANGE (8X60)

Note: Use from Engine SN 2218105.

$1.99

$

In Stock, only 3 left!

0

13

Honda 95723-08060-00

BOLT, FLANGE (8X60) (Honda Code 1436591).

Note: Use up to Engine SN 2218104.

$2.49

$

Usually ships in 3-6 days

0

14

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.99

$

In Stock, Qty 20+

0

14

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0
