HS724 TA/A (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-1030001 - SZBE-9999999) CONTROL PANEL Parts Diagram

24" Snow Blower, Made in Japan

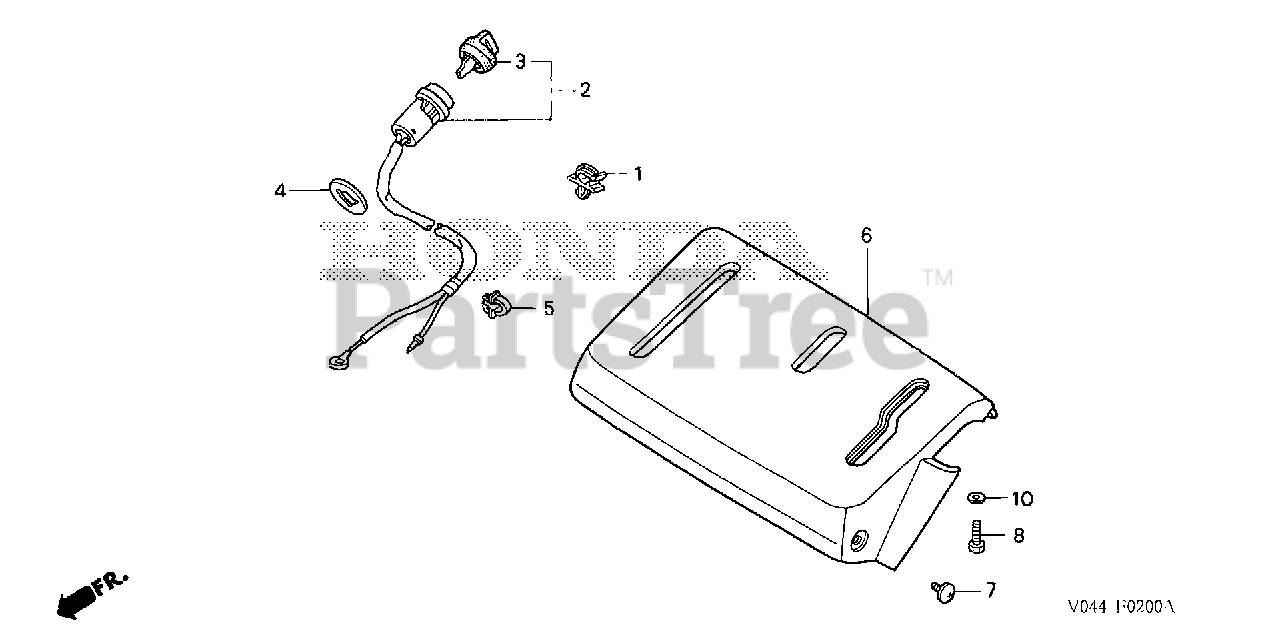

CONTROL PANEL Parts Diagram

  • Title
1

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

2

Honda 35100-767-B11

SWITCH ASSY., COMBINATION

$105.99

$

Usually ships in 3-6 days

0

3

Honda 35110-766-003

KEY ASSY., COMBINATION SWITCH (RED)

$9.49

$

In Stock, only 1 left!

0

4

Honda 36101-767-A10

SPACER, ENGINE STOP SWITCH

$5.49

$

Usually ships in 3-6 days

0

6

Honda 54221-767-A10ZA

PANEL, CONTROL *NH296* (ALPS GRAY)

$149.99

$

Usually ships in 3-6 days

0

7

Honda 90123-V15-000

BOLT, CONTROL PANEL

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90123-750-000

SCREW, METER VISOR SETTING

$4.99

$

In Stock, Qty 6

0

8

Honda 90101-P4V-010

BOLT, FLANGE (5X12)

$3.49

$

In Stock, only 2 left!

0

8

Honda 92101-05012-0G

BOLT, HEX. (5X12)

$1.49

$

In Stock, only 4 left!

0

10

Honda 94101-05000

SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) (Honda Code 0059055).

$1.49

$

In Stock, only 3 left!

0
