HS724 TA/A (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-1030001 - SZBE-9999999) AUGER HOUSING Parts Diagram

24" Snow Blower, Made in Japan

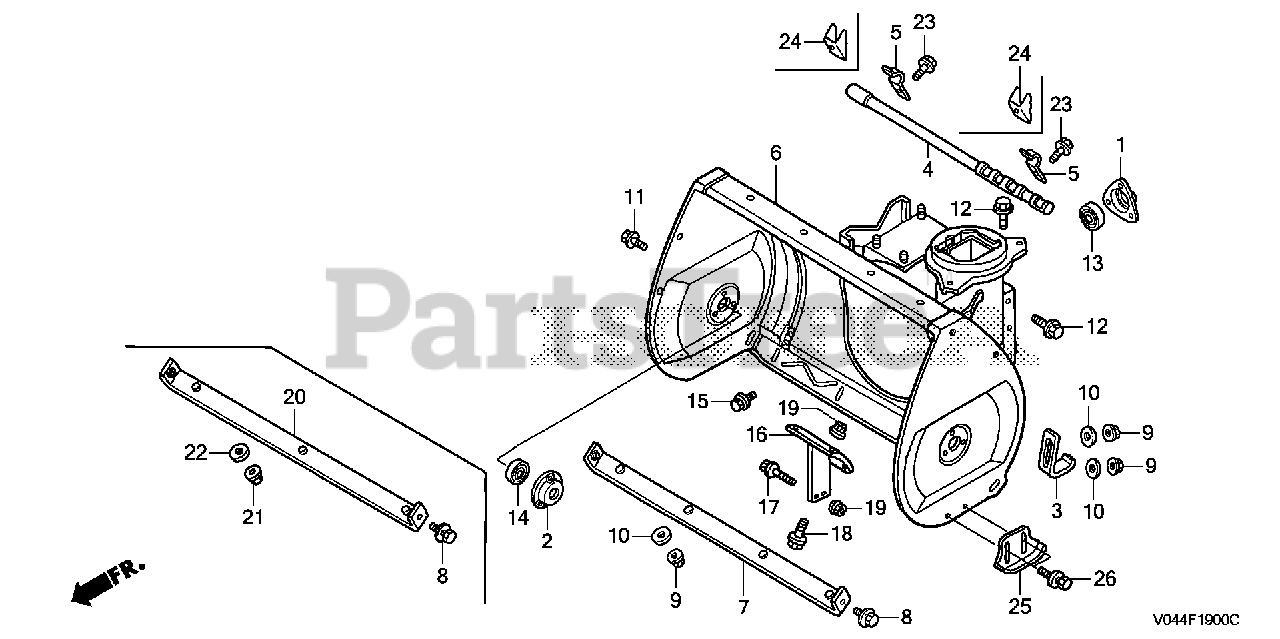

AUGER HOUSING Parts Diagram

  • Title

1

Honda 42316-767-000

HOLDER, WHEEL SHAFT BEARING

$24.99

$

In Stock, only 1 left!

0

2

Honda 73256-732-000

HOLDER, AUGER BEARING

$23.99

$

In Stock, only 2 left!

0

3

Honda 76153-743-611

SEE PART DETAILS - PRI; SKID, AUGER

$35.99

$

Usually ships in 3-6 days

0

4

Honda 76211-743-000

BAR, HEIGHT ADJUSTMENT

$47.99

$

In Stock, only 2 left!

0

5

Honda 76212-738-E00

BRACKET, HEIGHT ADJUSTMENT BAR

Note: Use up to Frame SN 2340766.

$5.99

$

Usually ships in 3-6 days

0

5

Honda 76212-767-700

BRACKET, SNOW DROP BAR

Note: Use from Frame SN 2340767.

$5.49

$

Usually ships in 3-6 days

0

6

Honda 76710-767-A32ZB

HOUSING, AUGER *R280* (POWER RED)

$1331.99

$

Usually ships in 3-6 days

0

7

Honda 76713-767-000

SEE PART DETAILS - SUP; GUARD, AUGER HOUSING
(Superseded to 76713-V04-W00)

$60.99

$

In Stock, only 1 left!

0

8

Honda 93404-06016-00

SEE PART DETAILS - PRI; BOLT-WASHER (6X16)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

10

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 10

0

11

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

Note: Use from Frame SN 1033140.

$1.99

$

In Stock, Qty 8

0

11

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: Use up to Frame SN 1033139.

$2.49

$

In Stock, Qty 20+

0

12

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

13

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$24.99

$

In Stock, only 1 left!

0

14

Honda 96150-62030-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203UU)

$22.99

$

In Stock, only 2 left!

0

15

Honda 90118-958-003

BOLT, FLANGE (6X12)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 76714-V04-W00

BRKT,AUGER HSG

$87.99

$

Usually ships in 3-6 days

0

16

Honda 76714-V04-000

SEE PART DETAILS - SUP; BRACKET, AUGER HOUSING
(Superseded to 76714-V04-W00)

$87.99

$

Usually ships in 3-6 days

0

17

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, Qty 5

0

18

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2529105).

$2.49

$

In Stock, Qty 20+

0

19

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

23

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

Note: Use up to Frame SN 1053954.

$4.49

$

In Stock, Qty 20+

0

23

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: Use from Frame SN 1053955.

$2.49

$

In Stock, Qty 20+

0

24

Honda 76722-768-P00

PLATE, SNOW DROP BAR

Note: Use from Frame SN 2340767.

$6.99

$

Usually ships in 3-6 days

0
