HS724 K1 WA (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-2400001 - SZBE-9999999) MUFFLER Parts Diagram

24" Snow Blower, Made in Japan

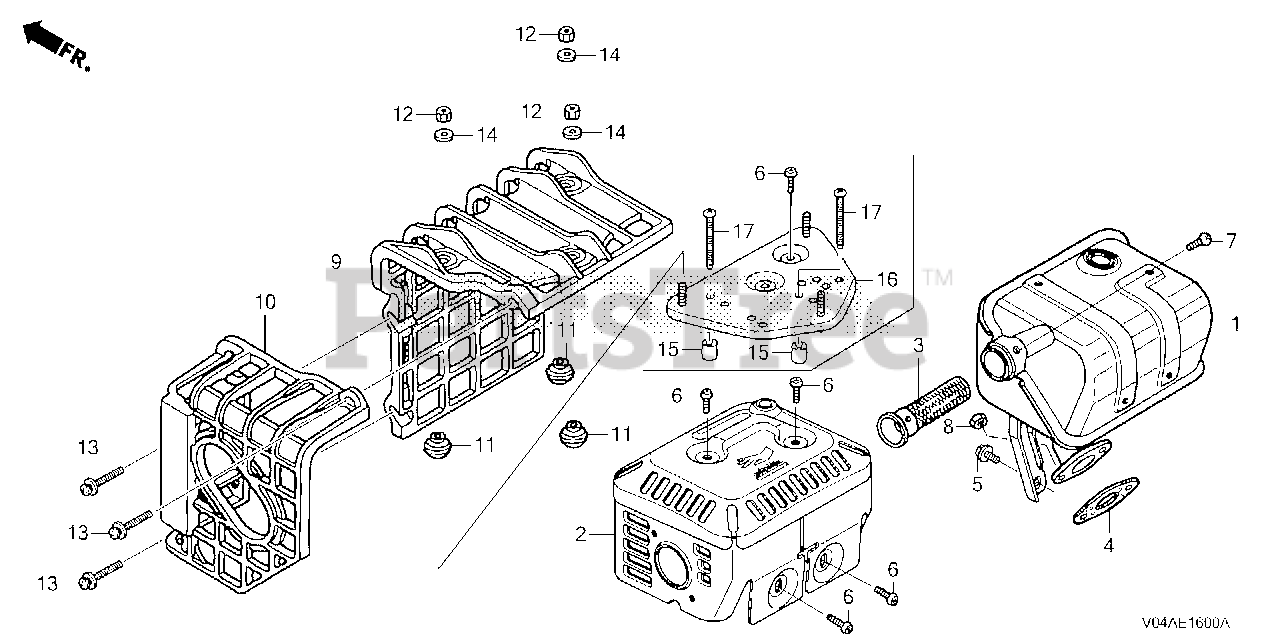

MUFFLER Parts Diagram

  • Title

1

Honda 18310-Z4V-801

SEE PART DETAILS - PRI; MUFFLER (ARRESTER)

$27.99

$

Usually ships in 3-6 days

0

2

Honda 18320-Z4V-000

PROTECTOR, MUFFLER

$10.99

$

In Stock, Qty 10

0

3

Honda 18355-ZL0-000

ARRESTER, SPARK

$21.99

$

In Stock, only 2 left!

0

4

Honda 18381-Z0T-801

GASKET, MUFFLER

$5.99

$

In Stock, Qty 17

0

5

Honda 90016-ZE1-000

BOLT, FLANGE (6X13) (CT200)

$3.99

$

Usually ships in 3-6 days

0

6

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: Use up to Engine SN 1646679.

$2.49

$

In Stock, Qty 20+

0

6

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: Use from Engine SN 1646680.

$2.49

$

In Stock, Qty 20+

0

7

Honda 90056-ZL0-000

SCREW, TAPPING (4X6)

$1.49

$

Usually ships in 3-6 days

0

8

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 6

0

9

Honda 18433-ZH8-J90

COVER, MUFFLER PROTECTOR

Note: Use from Engine SN 1007656.

$10.99

$

Usually ships in 3-6 days

0

10

Honda 18434-ZH8-W40

COVER, RR. MUFFLER

Note: Use from Engine SN 1007656.

$14.99

$

Usually ships in 3-6 days

0

11

Honda 18466-ZH8-W40

SPACER, MUFFLER COVER

Note: Use from Engine SN 1007656.

$8.49

$

Usually ships in 3-6 days

0

12

Honda 90302-KF9-900

NUT, HEX. (5MM)

Note: Use from Engine SN 1007656.

$4.99

$

Usually ships in 3-6 days

0

13

Honda 93891-06020-07

SCREW-WASHER (6X20)

Note: Use from Engine SN 1007656.

$1.99

$

In Stock, Qty 7

0

14

Honda 94103-05700

WASHER, PLAIN (5MM)

Note: Use from Engine SN 1007656.

$1.49

$

In Stock, only 4 left!

0

15

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING

Note: Use from Engine SN 1646680.

$4.99

$

Usually ships in 3-6 days

0

16

Honda 18436-ZH8-W41

BASE, MUFFLER COVER

Note: Use from Engine SN 1646680.

$20.99

$

Usually ships in 3-6 days

0

17

Honda 90050-ZH8-W40

SCREW, TAPPING (5X25)

Note: Use from Engine SN 1646680.

$2.99

$

Usually ships in 3-6 days

0
