HS724 K1 WA (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-2400001 - SZBE-9999999) FLYWHEEL + IGNITION COIL (1) Parts Diagram

24" Snow Blower, Made in Japan

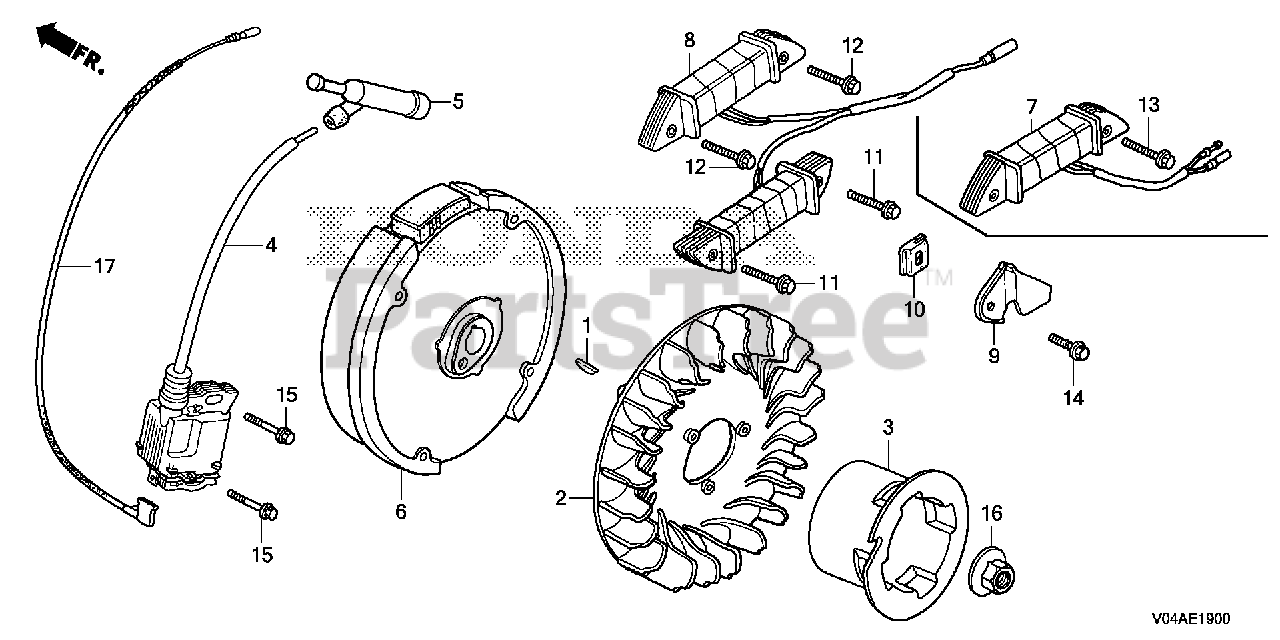

FLYWHEEL + IGNITION COIL (1) Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$4.99

$

In Stock, Qty 7

0

2

Honda 19511-ZE1-000

FAN, COOLING

$30.99

$

Usually ships in 3-6 days

0

3

Honda 28451-ZE1-711

PULLEY, STARTER

$35.99

$

Usually ships in 3-6 days

0

4

Honda 30500-Z0T-003

COIL ASSY., IGNITION (TEC)

$14.99

$

Usually ships in 3-6 days

0

4

Honda 30500-Z0T-802

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (TEC)
(Superseded to 30500-Z0T-003)

$14.99

$

Usually ships in 3-6 days

0

5

Honda 30700-Z0T-811

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR (NGK)
(Superseded to 30700-Z0T-821)

$6.49

$

In Stock, Qty 6

0

5

Honda 30700-Z0T-812

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR (NGK)
(Superseded to 30700-Z0T-821)

$6.49

$

In Stock, Qty 6

0

5

Honda 30700-Z0T-821

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (TEC)

$6.49

$

In Stock, Qty 6

0

6

Honda 31110-ZL0-811

FLYWHEEL (LAMP)

$171.99

$

Usually ships in 3-6 days

0

8

Honda 31510-ZE1-711

COIL ASSY., LAMP (12V/50W)

$156.99

$

In Stock, only 1 left!

0

9

Honda 31511-ZE1-000

CLAMP, WIRE

$4.99

$

In Stock, only 2 left!

0

10

Honda 31512-ZE1-000

GROMMET, WIRE

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, only 3 left!

0

12

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, only 3 left!

0

14

Honda 90019-883-000

BOLT, FLANGE (5X10) (CT200)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90121-952-000

BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

16

Honda 90201-Z0T-800

NUT, SPECIAL (14MM)

$2.99

$

In Stock, only 1 left!

0

17

Honda 36101-ZE1-010

WIRE, STOP SWITCH (370MM)

$11.99

$

In Stock, Qty 20+

0
