HS724 K1 WA (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-2400001 - SZBE-9999999) CRANKCASE COVER Parts Diagram
24" Snow Blower, Made in Japan

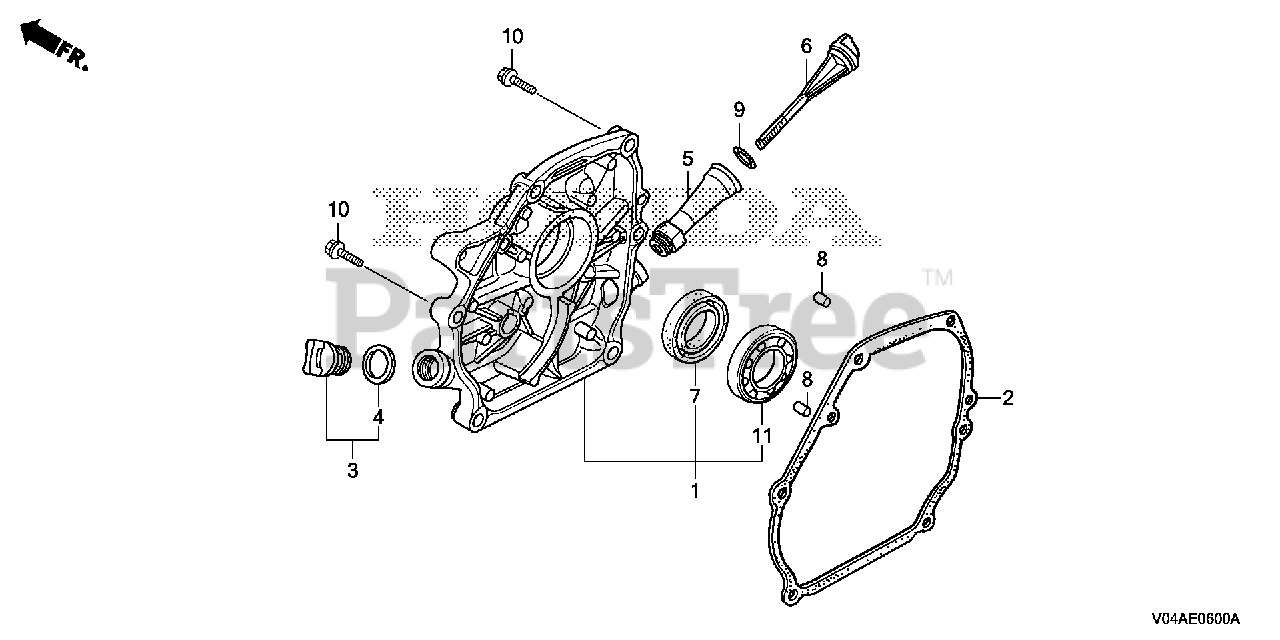

CRANKCASE COVER Parts Diagram
Honda 11300-Z4M-000
COVER ASSY., CRANKCASE
$220.99
$
Usually ships in 3-6 days
Honda 11381-ZH8-801
GASKET, CASE COVER (NON-ASBESTOS)
$7.49
$
In Stock, Qty 12
Honda 15600-Z0T-820
CAP ASSY., OIL FILLER (BLACK)
$1.49
$
In Stock, Qty 6
Honda 15625-Z0T-800
GASKET, OIL FILLER CAP
$4.99
$
In Stock, Qty 20+
Honda 15640-730-010
SEE PART DETAILS - PRI; PIPE, OIL FILLER
$36.99
$
Usually ships in 3-6 days
Honda 15650-730-000
DIPSTICK, OIL
$11.99
$
Usually ships in 3-6 days
Honda 91201-Z0T-801
SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (NOK)
$8.99
$
In Stock, Qty 5
Honda 94301-08140
PIN, DOWEL (8X14)
$2.99
$
In Stock, Qty 8
Honda 94608-50000
O-RING (23X2.8)
$1.49
$
In Stock, only 3 left!
Honda 95701-08032-00
BOLT, FLANGE (8X32)
$1.99
$
Usually ships in 3-6 days
Honda 96100-62050-00
BEARING, RADIAL BALL (6205)
$24.99
$
In Stock, only 1 left!
