HS724 K1 WA (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-2400001 - SZBE-9999999) CARBURETOR Parts Diagram

24" Snow Blower, Made in Japan

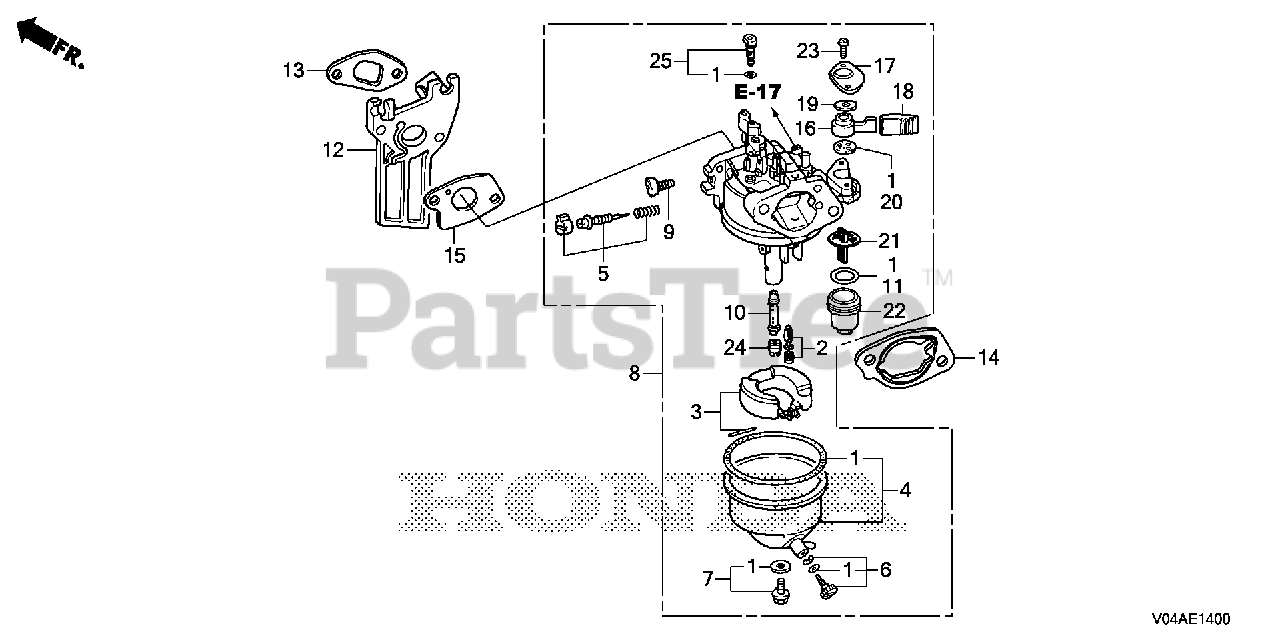

CARBURETOR Parts Diagram

  • Title
1

Honda 16010-ZH7-A20

GASKET SET

$17.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$28.99

$

In Stock, only 2 left!

0

3

$33.99

$

In Stock, only 1 left!

0

4

Honda 16015-Z4V-W11

CHAMBER, FLOAT

$66.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$20.99

$

In Stock, only 3 left!

0

6

Honda 16024-ZH7-A20

SCREW SET, DRAIN

$11.99

$

Usually ships in 3-6 days

0

7

$5.99

$

In Stock, only 2 left!

0

8

Honda 16100-Z0V-G01

CARBURETOR ASSY. (BEA3D A)

$103.99

$

Usually ships in 3-6 days

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

10

Honda 16166-Z2F-T01

NOZZLE, MAIN

$21.99

$

Usually ships in 3-6 days

0

11

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, Qty 7

0

12

Honda 16211-Z4M-000

INSULATOR, CARBURETOR

$25.99

$

Usually ships in 3-6 days

0

13

Honda 16212-ZH8-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

14

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$7.99

$

In Stock, Qty 20+

0

15

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

16

Honda 16953-ZE1-712

LEVER, PETCOCK

$10.99

$

Usually ships in 3-6 days

0

17

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

18

Honda 16955-ZE2-H21

CAP, LEVER

$11.99

$

Usually ships in 3-6 days

0

19

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$3.99

$

In Stock, only 1 left!

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

21

Honda 16959-Z5T-901

FILTER, CUP

$8.99

$

Usually ships in 3-6 days

0

22

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$22.99

$

In Stock, only 4 left!

0

23

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, Qty 5

0

24

Honda 99101-ZH8-0720

JET, MAIN (#72)

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

24

Honda 99101-ZH8-0750

JET, MAIN (#75)

$8.49

$

In Stock, only 1 left!

0

24

Honda 99101-ZK7-0700

JET, MAIN (#70)

Note: (Optional).

$9.99

$

In Stock, Qty 9

0

25

Honda 99204-ZA0-0450

JET SET, PILOT (#45)

$23.99

$

In Stock, only 1 left!

0
