HS724 K1 TA (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-2400001 - SZBE-9999999) FUEL TANK Parts Diagram

24" Snow Blower, Made in Japan

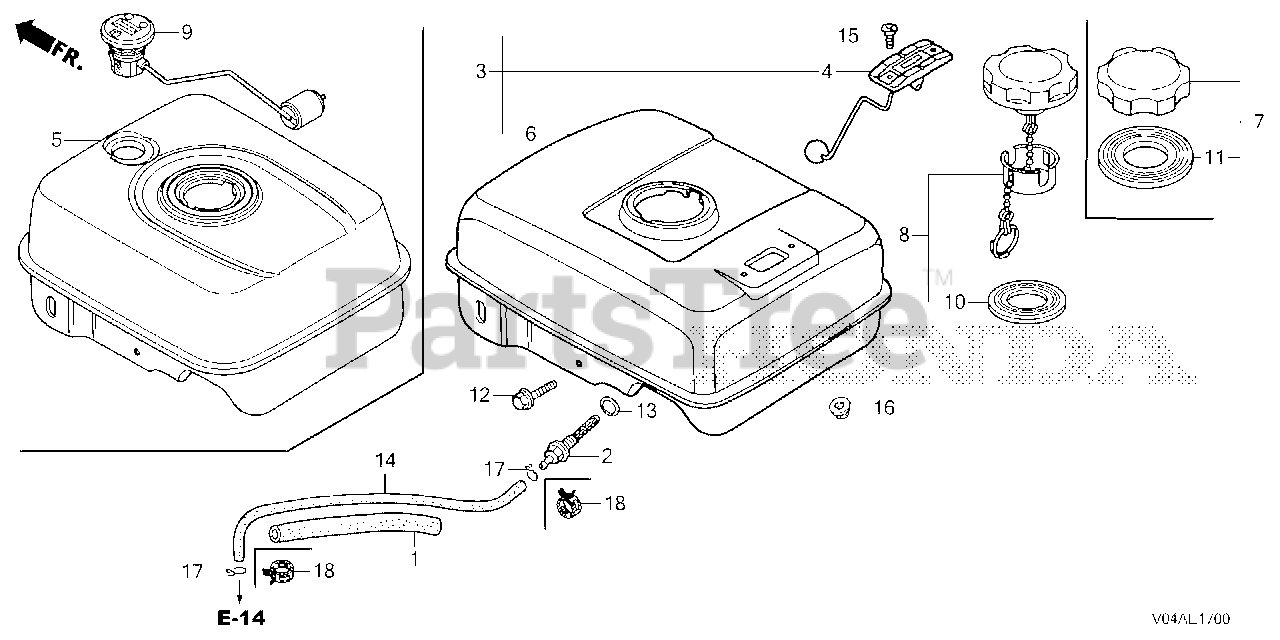

FUEL TANK Parts Diagram

  • Title
1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

$5.49

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-010

JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

5

Honda 17510-Z4M-800ZC

TANK, FUEL *R280* (POWER RED)

$105.99

$

Usually ships in 3-6 days

0

8

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$79.99

$

Usually ships in 3-6 days

0

9

Honda 17630-Z4M-003

GAUGE ASSY., FUEL

$22.99

$

Usually ships in 3-6 days

0

10

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (39X62X3) (RADICON)

$0.99

$

In Stock, Qty 8

0

12

Honda 90004-ZL0-003

BOLT, FLANGE (6X34)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

13

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

14

Honda 91424-Z4M-003

TUBE, FUEL (4.5X145) (FKM)
(Superseded to 91424-Z4M-013)

$7.99

$

In Stock, only 1 left!

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, only 4 left!

0
