HS724 K1 TA (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-2400001 - SZBE-9999999) AUGER HOUSING Parts Diagram

24" Snow Blower, Made in Japan

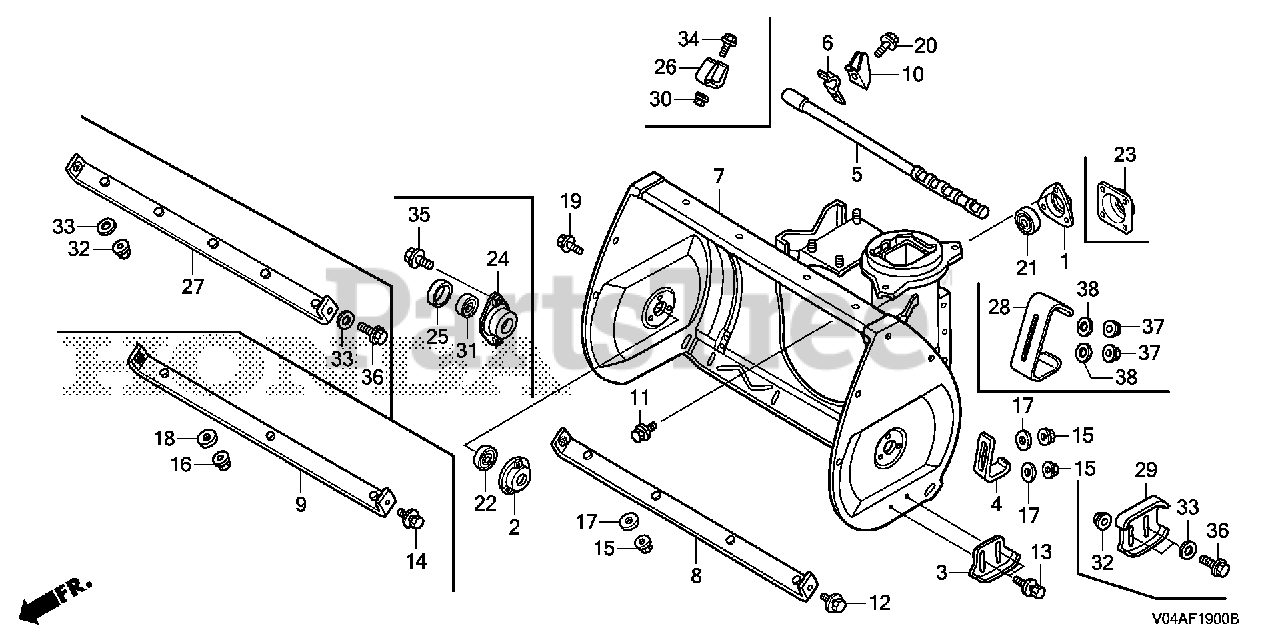

AUGER HOUSING Parts Diagram

  • Title

5

Honda 76211-V45-A00

BAR, SNOW DROP

$17.99

$

Usually ships in 3-6 days

0

7

Honda 76710-V45-A00ZA

HOUSING, AUGER *R280* (POWER RED)

$1255.99

$

Usually ships in 3-6 days

0

11

Honda 95701-08012-08

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 96150-62050-10

BEARING, RADIAL BALL (6205UU)

$44.99

$

Usually ships in 3-6 days

0

23

Honda 42316-V45-A00

HOLDER, BLOWER SHAFT BEARING

$24.99

$

Usually ships in 3-6 days

0

24

Honda 72423-V45-A00

HOLDER, AUGER BEARING

$17.99

$

Usually ships in 3-6 days

0

25

Honda 72424-V45-A00

SPACER, AUGER BEARING

$9.49

$

Usually ships in 3-6 days

0

26

Honda 76212-V45-A00

BRACKET, SNOW DROP BAR

$13.99

$

Usually ships in 3-6 days

0

27

Honda 76322-V45-A00

BLADE, SCRAPER

$99.99

$

In Stock, only 1 left!

0

28

Honda 76728-V45-A00

SKID, AUGER

$17.99

$

In Stock, Qty 10

0

30

Honda 90220-MA5-700

NUT, NYLON RING (6MM)

$11.99

$

Usually ships in 3-6 days

0

30

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

31

Honda 91051-V45-A00

BEARING, RADIAL BALL (6203-19.05)

$6.49

$

Usually ships in 3-6 days

0

32

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

33

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

34

Honda 95701-06012-08

BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

35

Honda 95701-08012-08

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

36

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

37

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

38

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0
