HS720 ASA (SAAA) - Honda 20" Snow Blower, Made in USA (SN: SAAA-1000001 - SAAA-2099999) CHUTER (2) Parts Diagram

20" Snow Blower, Made in USA

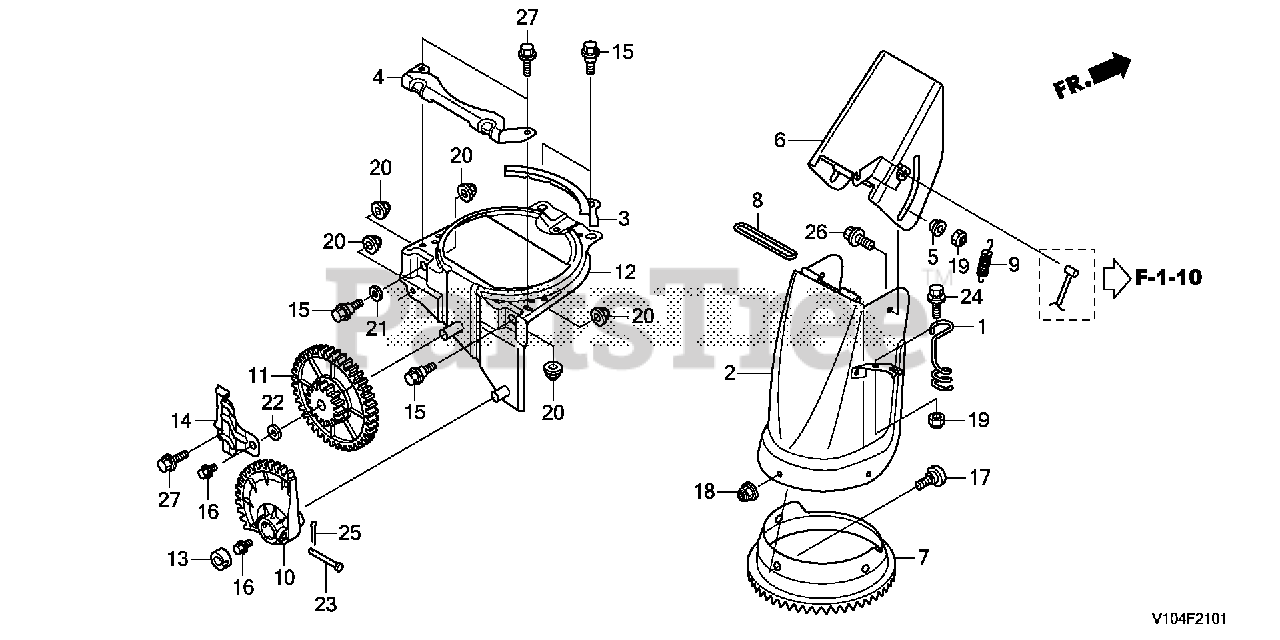

CHUTER (2) Parts Diagram

  • Title
1

Honda 17723-V10-S10

HOLDER, GUIDE CABLE

$8.49

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0

3

Honda 76313-V10-S10

PLATE, FR. CHUTE

$2.49

$

Usually ships in 3-6 days

0

4

Honda 76314-V10-S10

PLATE, RR. CHUTE

$4.99

$

Usually ships in 3-6 days

0

5

Honda 76316-V10-R10

COLLAR, CHUTE GUIDE

$14.99

$

Usually ships in 3-6 days

0

6

Honda 76320-V10-S10

GUIDE, CHUTE

$15.99

$

Usually ships in 3-6 days

0

7

Honda 76325-V10-S12

BUSH, CHUTE

$22.99

$

In Stock, only 1 left!

0

8

Honda 76326-738-E00

PIN, CHUTE GUIDE

$8.49

$

In Stock, only 3 left!

0

9

Honda 76328-738-E00

SPRING, CHUTE

$7.49

$

Usually ships in 3-6 days

0

10

Honda 76331-V10-S10

GEAR, CHUTE DRIVE

$96.99

$

Usually ships in 3-6 days

0

11

Honda 76332-V10-S10

GEAR, CHUTE DRIVEN

$96.99

$

Usually ships in 3-6 days

0

12

Honda 76340-V10-S11

RECEIVER, CHUTE

$39.99

$

Usually ships in 3-6 days

0

13

Honda 76354-V10-S10

SPACER, CONTROL ROD

$4.99

$

Usually ships in 3-6 days

0

14

Honda 76718-V10-S10

PLATE, HEAT GUARD

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90109-V10-S10

BOLT, CHUTE SETTING

$3.49

$

In Stock, only 2 left!

0

16

Honda 90110-VA4-000

SEE PART DETAILS - PRI; BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

17

Honda 90112-V10-R10

BOLT, CHUTE SETTING

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90303-V10-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 14

0

19

Honda 90303-VH3-N10

NUT, NYLON LOCK (6MM)

$1.99

$

In Stock, Qty 5

0

20

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

21

Honda 90501-V10-S10

WASHER (9MM)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 90502-V10-S10

WASHER (8.5MM)

$0.99

$

Usually ships in 3-6 days

0

23

Honda 90751-V10-S10

PIN (6X50)

$23.99

$

Usually ships in 3-6 days

0

24

Honda 93404-06016-07

BOLT-WASHER (6X16)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, only 4 left!

0

26

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

27

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 8

0
