HS720 ASA (SAAA) - Honda 20" Snow Blower, Made in USA (SN: SAAA-1000001 - SAAA-2099999) AUGER Parts Diagram
20" Snow Blower, Made in USA

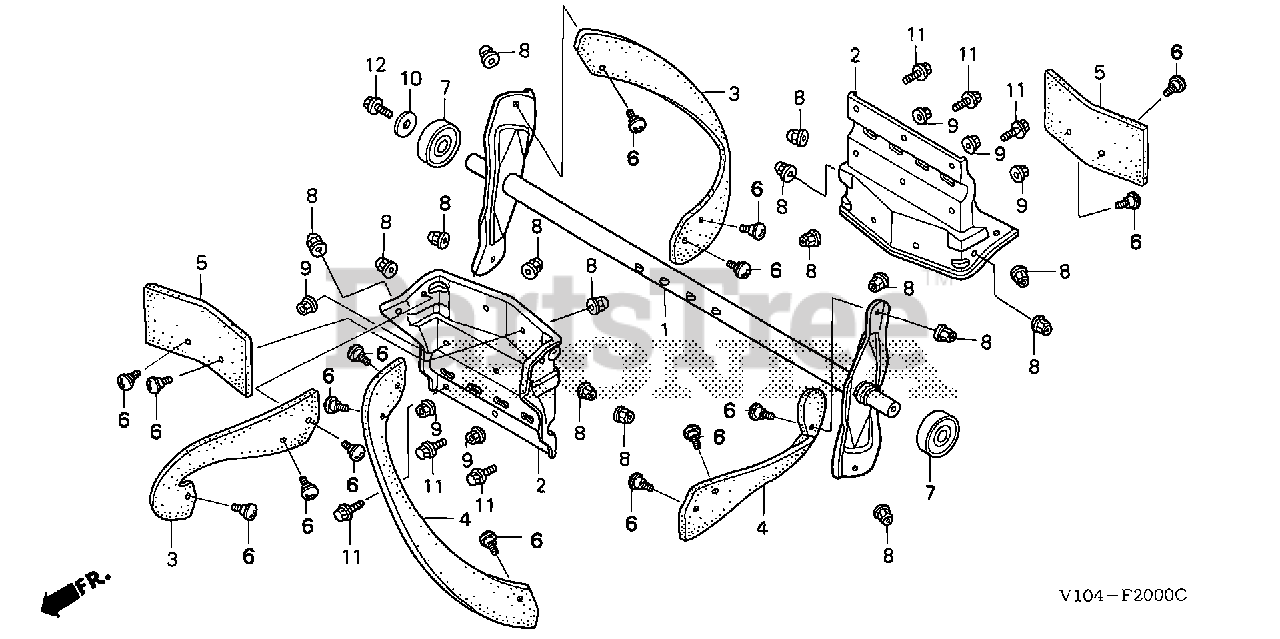

AUGER Parts Diagram
Honda 72410-V10-000
AUGER
$109.99
$
In Stock, only 1 left!
Honda 72412-V10-000
PLATE, AUGER
$48.99
$
Usually ships in 3-6 days
Honda 72427-V10-020
RUBBER, R. AUGER
$13.99
$
In Stock, only 2 left!
Honda 72428-V10-020
RUBBER, L. AUGER
$12.99
$
In Stock, only 2 left!
Honda 72443-V10-020
RUBBER, BLOWER
$4.49
$
In Stock, only 3 left!
Honda 90110-V10-020
BOLT, AUGER RUBBER
$1.99
$
In Stock, Qty 20+
Honda 90201-730-003
BEARING, RADIAL BALL (6203)
$25.99
$
In Stock, only 1 left!
Honda 90343-ZE6-000
SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)
$2.49
$
In Stock, Qty 20+
Honda 94050-06000
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).
$0.99
$
In Stock, Qty 20+
Honda 94103-08000
WASHER, PLAIN (8MM)
$0.99
$
In Stock, Qty 20+
Honda 95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.
$2.49
$
In Stock, Qty 19
Honda 95701-08016-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.
$2.49
$
In Stock, Qty 7
