HS720 ASA/A (SAAA) - Honda 20" Snow Blower, Made in USA (SN: SAAA-2100001 - SAAA-9999999) CARBURETOR Parts Diagram

20" Snow Blower, Made in USA

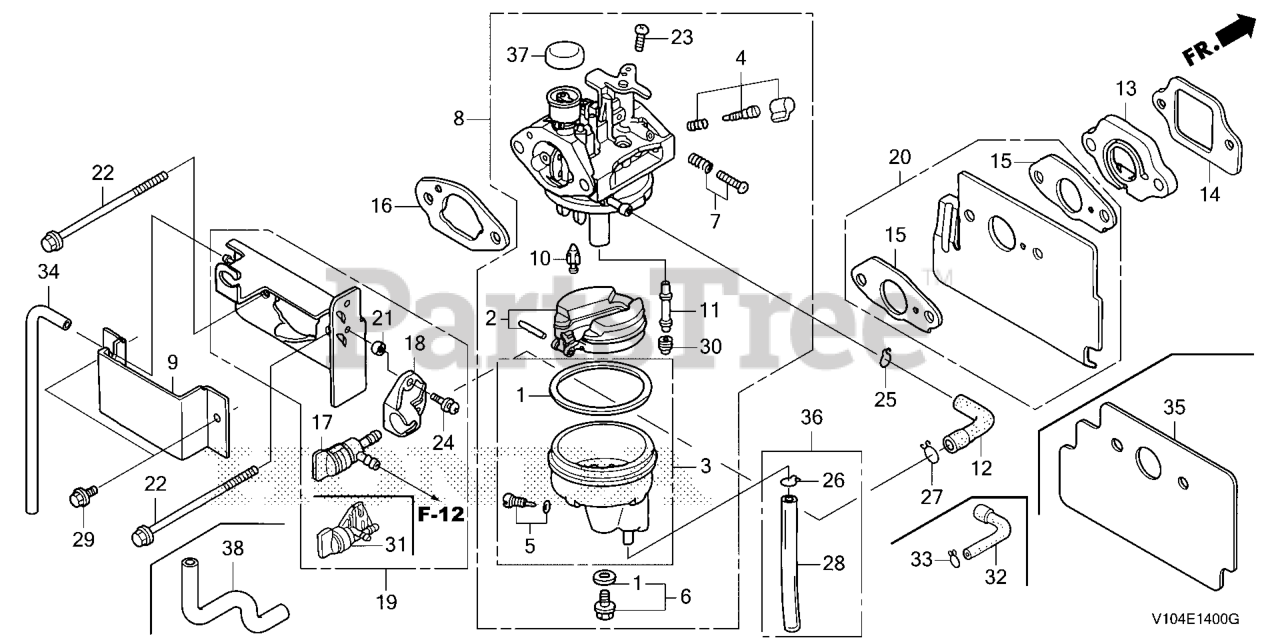

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

$13.99

$

In Stock, Qty 14

0

2

Honda 16013-ZL1-003

FLOAT SET (Honda Code 5580162).

$33.99

$

In Stock, only 2 left!

0

3

Honda 16015-ZL8-003

CHAMBER SET, FLOAT

$35.99

$

Usually ships in 3-6 days

0

5

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$15.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16100-Z1A-H01

CARBURETOR ASSY. (BB70B A)

$32.99

$

In Stock, only 1 left!

0

8

Honda 16100-Z1A-H02

CARBURETOR ASSY. (BB70B C)

$31.99

$

Usually ships in 3-6 days

0

9

Honda 16120-Z1A-000

GUARD, CARBURETOR

$3.99

$

Usually ships in 3-6 days

0

10

Honda 16155-ZL8-013

VALVE, FLOAT (CARBURETOR NO.)

$29.99

$

Usually ships in 3-6 days

0

11

Honda 16166-Z1A-H01

NOZZLE, MAIN

$7.49

$

Usually ships in 3-6 days

0

11

Honda 16166-Z1A-H02

NOZZLE, MAIN (CARBURETOR NO.)

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16211-Z8B-000

INSULATOR, CARBURETOR

$3.99

$

In Stock, Qty 10

0

14

Honda 16212-ZL8-000

GASKET, INSULATOR (Honda Code 5580246).

$7.99

$

In Stock, Qty 20+

0

16

Honda 16228-ZL8-000

GASKET, CARBURETOR (Honda Code 5580253). (CHOKE SIDE)

$2.49

$

In Stock, Qty 20+

0

19

Honda 16960-ZL8-H10

STAY ASSY., PETCOCK

$43.99

$

Usually ships in 3-6 days

0

21

Honda 33609-GK4-620

COLLAR, FR. TURN SIGNAL

$3.49

$

In Stock, only 1 left!

0

22

Honda 90004-ZL8-000

BOLT, FLANGE (6X79) (CT200) (Honda Code 5580972).

$1.99

$

In Stock, Qty 12

0

23

Honda 93500-05006-0H

SCREW, PAN (5X6) (Honda Code 0639419).

$0.99

$

In Stock, only 2 left!

0

24

Honda 93891-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10) (Honda Code 0671636).

$1.49

$

In Stock, Qty 5

0

25

Honda 95002-40850-08

CLIP, TUBE (D8.5) (Honda Code 0665240).

$3.49

$

In Stock, Qty 8

0

26

Honda 95002-02650

SEE PART DETAILS - PRI; CLIP, TUBE (B6.5)

$1.99

$

In Stock, only 4 left!

0

29

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$4.49

$

In Stock, Qty 20+

0

29

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 7

0

30

Honda 99101-124-0720

JET, MAIN (#72) Use from Engine SN 6185281.

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

30

Honda 99101-124-0750

JET, MAIN (#75) (Honda Code 0761353).

Note: (Optional)

$12.99

$

Usually ships in 3-6 days

0

30

Honda 99101-124-0780

JET, MAIN (#78) (Honda Code 0639831).

$12.99

$

Usually ships in 3-6 days

0

30

Honda 99101-124-0800

JET, MAIN (#80) (Honda Code 0714519).

$12.99

$

Usually ships in 3-6 days

0

31

Honda 16950-ZM0-003

PETCOCK ASSY. (Honda Code 7425770).

$9.99

$

In Stock, Qty 12

0

32

Honda 17702-Z0J-H41

TUBE, FUEL (FKM)
(Superseded to 17702-Z0J-H42)

$14.99

$

In Stock, only 1 left!

0

32

Honda 17702-Z0J-H42

TUBE(FKM),FUEL

$14.99

$

In Stock, only 1 left!

0

33

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, only 4 left!

0

34

Honda 16199-ZL8-H00

TUBE, AIR VENT

$8.49

$

Usually ships in 3-6 days

0

35

Honda 19651-Z0J-000

GUIDE, AIR

$11.99

$

In Stock, Qty 9

0

36

Honda 91410-Z0J-000

TUBE ASSY., DRAIN

$1.49

$

Usually ships in 3-6 days

0

37

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.99

$

In Stock, only 1 left!

0

38

Honda 15721-Z1A-000

TUBE, BREATHER

$2.99

$

Usually ships in 3-6 days

0
