HS720 AMA (SAAA) - Honda 20" Snow Blower, Made in USA (SN: SAAA-1000001 - SAAA-2099999) COVER (HS720) Parts Diagram

20" Snow Blower, Made in USA

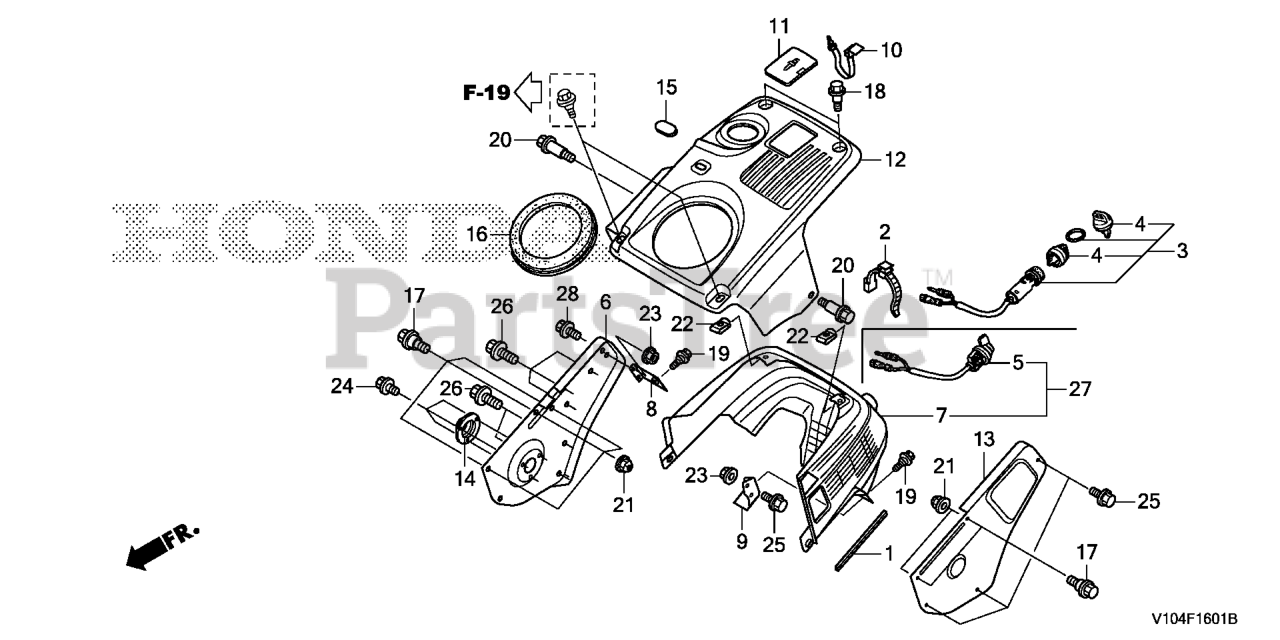

COVER (HS720) Parts Diagram

  • Title

1

Honda 06636-V10-000

SEAL KIT, COVER

$5.99

$

Usually ships in 3-6 days

0

2

Honda 32901-V10-R10

TIE, CABLE

$2.49

$

Usually ships in 3-6 days

0

5

Honda 35120-V10-R11

SWITCH ASSY., ENGINE STOP

Note: Use up to Frame SN 1007370.

$15.99

$

Usually ships in 3-6 days

0

5

Honda 35120-V10-R13

SWITCH ASSY., ENGINE STOP

Note: Use from Frame SN 1019091.

$15.99

$

Usually ships in 3-6 days

0

6

Honda 63210-V10-R10

COVER, R. SIDE

$38.99

$

Usually ships in 3-6 days

0

7

Honda 63311-V10-R10

COVER, RR.
(Superseded to 04601-V10-305)

Note: Use up to Frame SN 1007370.

$63.99

$

Usually ships in 3-6 days

0

7

Honda 63311-V10-R21

COVER, RR.

Note: Use from Frame SN 1019091.

$25.99

$

Usually ships in 3-6 days

0

8

Honda 63313-V10-000

BRACKET, R. RR. COVER

$2.49

$

In Stock, only 1 left!

0

9

Honda 63314-V10-R10

BRACKET, L. RR. COVER

$4.99

$

Usually ships in 3-6 days

0

10

Honda 63338-747-000

KNOB, PLUG COVER

$12.99

$

Usually ships in 3-6 days

0

11

Honda 63347-V10-R10

COVER, PLUG

$2.99

$

In Stock, only 2 left!

0

12

Honda 63510-V10-R10

COVER, TOP

$34.99

$

In Stock, only 1 left!

0

13

Honda 63611-V10-010

COVER, BELT

$67.99

$

Usually ships in 3-6 days

0

14

Honda 72423-V10-000

HOLDER, R. AUGER (BEARING)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 76232-VG3-000

GROMMET, PLUG

$1.49

$

In Stock, Qty 7

0

16

Honda 76312-V10-000

RUBBER, CHUTE

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90108-V10-000

BOLT, SIDE COVER

$7.99

$

In Stock, Qty 9

0

18

Honda 90109-V10-S10

BOLT, CHUTE SETTING

$3.49

$

In Stock, only 2 left!

0

19

Honda 90111-V10-000

BOLT, RR. COVER

$7.99

$

In Stock, Qty 6

0

20

Honda 90116-V10-S10

BOLT, COVER SETTING

$20.99

$

In Stock, Qty 9

0

21

Honda 90302-V10-000

NUT, SELF-LOCK (6MM)

$0.99

$

In Stock, Qty 5

0

22

Honda 90305-SH3-000

NUT, AIR SPOILER CLIP

$10.99

$

Usually ships in 3-6 days

0

23

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

24

Honda 95701-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 4 left!

0

25

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 18

0

26

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 04601-V10-305

COVER KIT, RR.

Note: Use from Frame SN 1007371 to 1019090.

$63.99

$

Usually ships in 3-6 days

0

28

Honda 95701-06012-07

BOLT, FLANGE (6X12)

Note: Use up to Frame SN 1019090.

$2.49

$

In Stock, Qty 18

0

28

Honda 95701-06014-07

BOLT, FLANGE (6X14)

Note: Use from Frame SN 1019091.

$1.99

$

Usually ships in 3-6 days

0
