HS720 AA (SAAA) - Honda 20" Snow Blower, Made in USA (SN: SAAA-1000001 - SAAA-2099999) FUEL TANK Parts Diagram

20" Snow Blower, Made in USA

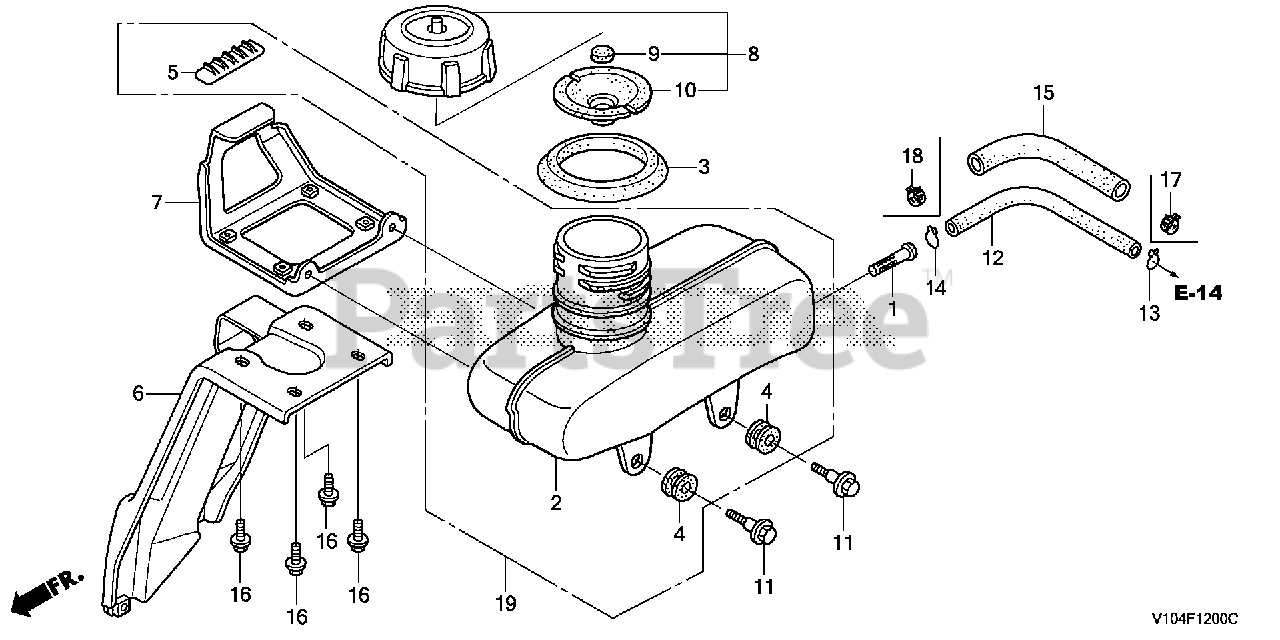

FUEL TANK Parts Diagram

  • Title

1

Honda 16952-Z8B-000

FILTER, FUEL

$28.99

$

In Stock, Qty 10

0

2

Honda 17511-V10-800

TANK, FUEL

$108.99

$

Usually ships in 3-6 days

0

3

Honda 17514-V10-R10

SEAL, FUEL FILLER NECK

$2.49

$

Usually ships in 3-6 days

0

4

Honda 17532-V10-800

RUBBER A, TANK MOUNTING

$1.49

$

Usually ships in 3-6 days

0

5

Honda 17533-V10-800

RUBBER B, TANK MOUNTING

$1.49

$

Usually ships in 3-6 days

0

6

Honda 17544-V10-R10

BRACKET A, FUEL TANK

$46.99

$

Usually ships in 3-6 days

0

7

Honda 17545-V10-000

BRACKET B, FUEL TANK

$12.99

$

Usually ships in 3-6 days

0

8

Honda 17620-747-030

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$13.99

$

In Stock, only 2 left!

0

9

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

10

Honda 17624-747-030

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$7.49

$

Usually ships in 3-6 days

0

11

Honda 90103-V10-000

BOLT, SPECIAL (6MM)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 17701-V10-R11

TUBE, FUEL TANK (FKM)

$24.99

$

Usually ships in 3-6 days

0

12

Honda 17701-V10-R12

TUBE, FUEL TANK (FKM)

$25.99

$

Usually ships in 3-6 days

0

16

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709).

$2.49

$

In Stock, Qty 20+

0

17

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, only 2 left!

0

18

Honda 95002-41200-08

CLAMP, TUBE (D12)

$3.49

$

Usually ships in 3-6 days

0
