HS720 AA (SAAA) - Honda 20" Snow Blower, Made in USA (SN: SAAA-1000001 - SAAA-2099999) CONTROL LEVER Parts Diagram

20" Snow Blower, Made in USA

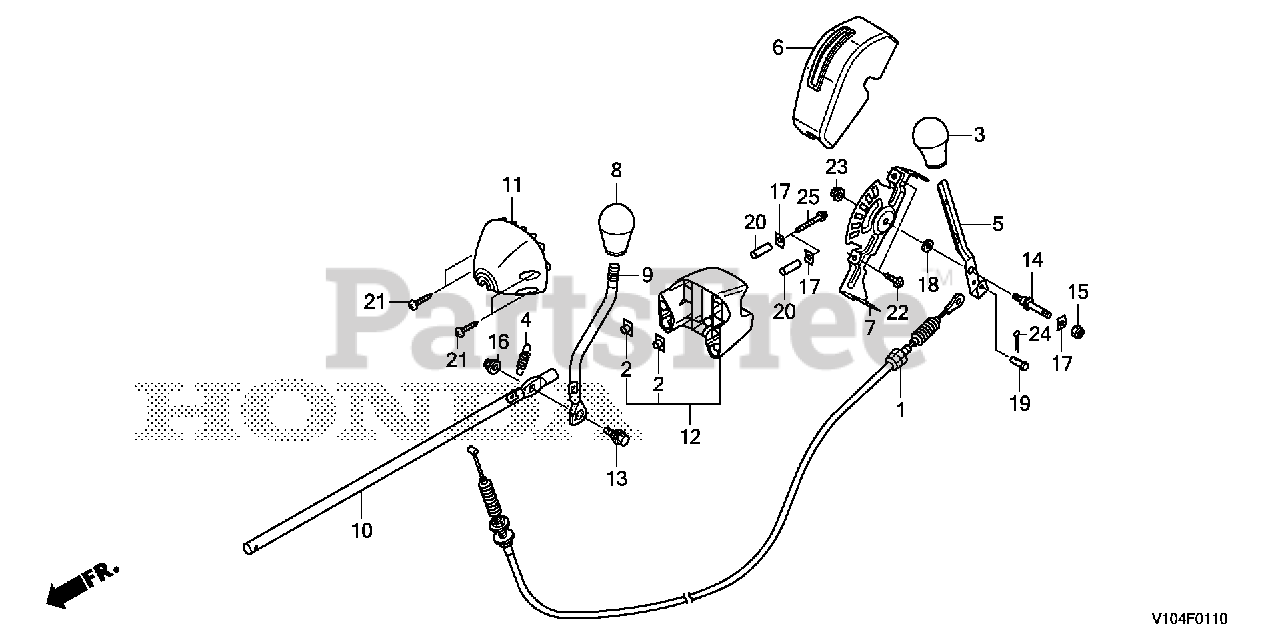

CONTROL LEVER Parts Diagram

  • Title

1

Honda 54580-V10-S11

CABLE, CHUTE GUIDE
(Superseded to 54580-V10-S12)

Note: Use up to Frame SN 1072912.

$47.99

$

In Stock, only 2 left!

0

1

Honda 54580-V10-S12

CABLE, CHUTE GUIDE

$47.99

$

In Stock, only 2 left!

0

2

Honda 61304-958-003

NUT, SPECIAL (6X7)

$4.49

$

In Stock, Qty 5

0

3

Honda 76272-VH7-300ZB

GRIP, SHUTTER ADJUST *NH164* (GRIP GRAY)

$9.99

$

Usually ships in 3-6 days

0

4

Honda 76329-V10-S10

SPRING, CHUTE CONTROL

$1.49

$

In Stock, only 2 left!

0

5

Honda 76333-V10-S10

LEVER, CHUTE GUIDE

$2.49

$

Usually ships in 3-6 days

0

6

Honda 76335-V10-S10

COVER, CHUTE GUIDE

$89.99

$

Usually ships in 3-6 days

0

7

Honda 76336-V10-S10

PLATE, CHUTE GUIDE

$89.99

$

Usually ships in 3-6 days

0

8

Honda 76352-V10-S10

GRIP, CHUTE HANDLE

$5.99

$

Usually ships in 3-6 days

0

9

Honda 76353-V10-S10

HANDLE, CHUTE

$9.49

$

Usually ships in 3-6 days

0

10

Honda 76355-V10-S10

ROD, CONTROL

$70.99

$

Usually ships in 3-6 days

0

11

Honda 04763-V10-S10

CASE, FR. CHUTE

Note: Use up to Frame SN 1072912.

$28.99

$

Usually ships in 3-6 days

0

11

Honda 76357-V10-S11

CASE, FR. CHUTE

Note: Use from Frame SN 1072913.

$17.99

$

In Stock, only 3 left!

0

12

Honda 04763-V10-S10

CASE, FR. CHUTE

Note: Use up to Frame SN 1072912.

$28.99

$

Usually ships in 3-6 days

0

12

Honda 76358-V10-S11

CASE, RR. CHUTE

Note: Use from Frame SN 1072913.

$16.99

$

In Stock, only 3 left!

0

13

Honda 90110-V10-S10

BOLT, SHOULDER

$1.49

$

Usually ships in 3-6 days

0

14

Honda 90114-V10-S10

BOLT, CHUTE GUIDE

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90303-VH3-N10

NUT, NYLON LOCK (6MM)

$1.99

$

In Stock, Qty 5

0

16

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 14

0

17

Honda 90501-V25-000

WASHER, FRAME JOINT

$0.99

$

In Stock, Qty 6

0

18

Honda 90503-V10-S10

WASHER (10.4MM)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 90754-VA9-P40

PIN, CABLE JOINT

$7.49

$

In Stock, only 1 left!

0

20

Honda 91559-VH7-B00

COLLAR, BATTERY MOUNTING

$2.49

$

In Stock, only 3 left!

0

21

Honda 90118-V10-S10

SCREW, TAPPING (4.2X32) (PO)

Note: Use from Frame SN 1072913.

$0.99

$

In Stock, Qty 17

0

21

Honda 93913-14580

SCREW, TAPPING (4X20) (PO)

Note: Use up to Frame SN 1072912.

$0.99

$

In Stock, Qty 10

0

22

Honda 93913-25220

SCREW, TAPPING (5X12) (PO)

$0.99

$

In Stock, Qty 8

0

23

Honda 94050-06070

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, only 4 left!

0

25

Honda 95701-06040-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40)

$2.49

$

In Stock, Qty 5

0
