HS70 WA (HS70) - Honda Snow Blower, Made in Japan (SN: HS70-1000024 - HS70-9999999) CYLINDER Parts Diagram

Snow Blower, Made in Japan

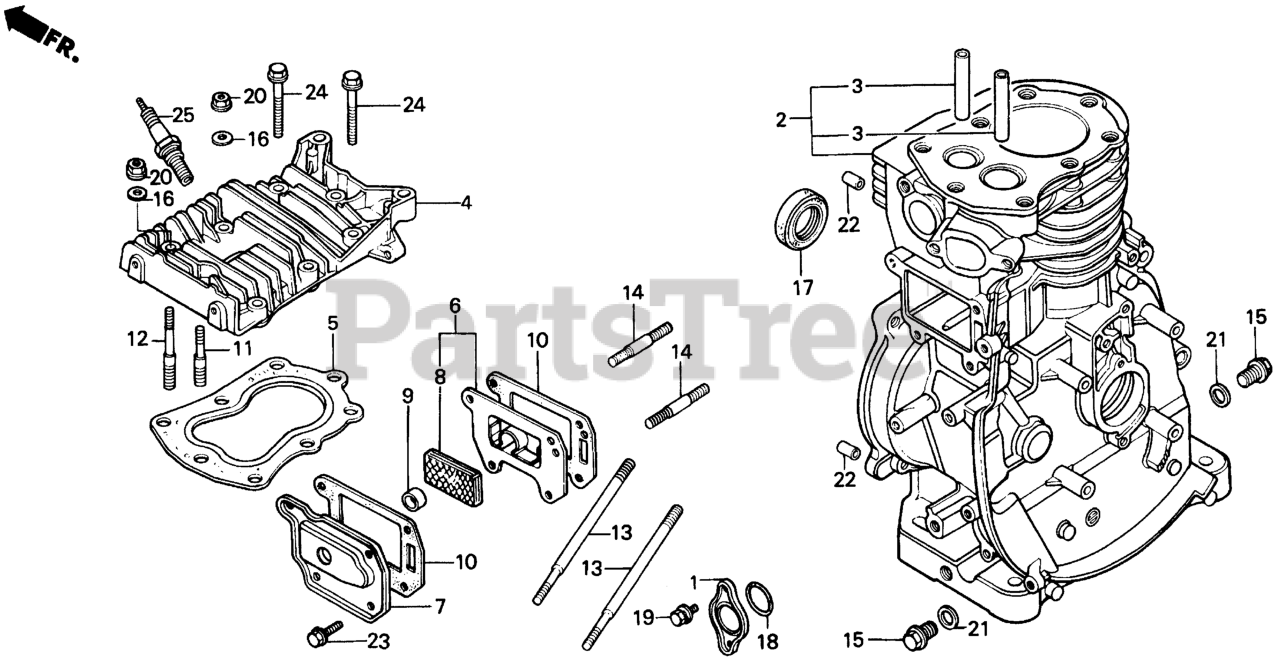

CYLINDER Parts Diagram

  • Title

1

Honda 11210-822-010

COVER, OIL PAN (Honda Code 0397539).

$3.99

$

Usually ships in 3-6 days

0

2

Honda 12100-889-345

CYLINDER (Honda Code 1012434).

$957.99

$

Usually ships in 3-6 days

0

3

Honda 12134-889-305

GUIDE, VALVE (Honda Code 0760074).

Note: (Optional)

$12.99

$

Usually ships in 3-6 days

0

4

Honda 12221-889-315

SEE PART DETAILS - PRI; CYLINDER HEAD (Honda Code 1012442).

$

$

Not available

5

Honda 12281-889-315

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 1012459).

$34.99

$

Usually ships in 3-6 days

0

6

Honda 12360-889-010

SEE PART DETAILS - PRI; CASE, BREATHER

$

$

Not available

7

Honda 12361-889-000

COVER, TAPPET (Honda Code 0754564).

$11.99

$

Usually ships in 3-6 days

0

8

Honda 12367-883-003

SEE PART DETAILS - PRI; FILTER, BREATHER (Honda Code 1083484).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 12369-883-000

SEAL, BREATHER (Honda Code 1037910).

$4.49

$

Usually ships in 3-6 days

0

10

Honda 12375-889-000

GASKET, TAPPET COVER Use up to Engine SN 1136497.

$

$

Not available

11

Honda 90032-889-000

BOLT, STUD (M8XM10X63) (Honda Code 1012921).

$8.49

$

Usually ships in 3-6 days

0

12

Honda 90033-889-000

BOLT, STUD (M8XM10X81) (Honda Code 1012939).

$9.99

$

Usually ships in 3-6 days

0

13

Honda 90042-890-010

SEE PART DETAILS - PRI; BOLT, STUD (8X110) (Honda Code 0761213).

$8.49

$

Usually ships in 3-6 days

0

14

Honda 90047-883-000

BOLT, STUD (8X35) (Honda Code 0636894).

$4.99

$

Usually ships in 3-6 days

0

15

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, Qty 12

0

16

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

$9.49

$

In Stock, only 1 left!

0

17

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$8.99

$

Usually ships in 3-6 days

0

18

Honda 91301-028-000

O-RING (27X2.0) (Honda Code 0013284).

$3.99

$

Usually ships in 3-6 days

0

19

Honda 93402-06012-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X12) (Honda Code 2646628).

$2.49

$

Usually ships in 3-6 days

0

20

Honda 94071-08080

NUT-WASHER (8MM) (Honda Code 0612713).

$1.99

$

Usually ships in 3-6 days

0

21

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 12

0

22

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

23

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 1 left!

0

24

Honda 95730-08050-08

BOLT, FLANGE (8X50) (NOT AVAILABLE) (Honda Code 0761312).

$

$

Currently unavailable

25

Honda 98076-54716

SEE PART DETAILS - PRI; SPARK PLUG (BR-4HS) (NGK) (Honda Code 0649830).

$3.49

$

In Stock, Qty 10

0

25

Honda 98076-54757

SEE PART DETAILS - PRI; SPARK PLUG (W14FR-U) (DENSO) (Honda Code 1106988).

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0
