HS70 TA (HS70) - Honda Snow Blower, Made in Japan (SN: HS70-1000008 - HS70-9999999) ENGINE BED Parts Diagram

Snow Blower, Made in Japan

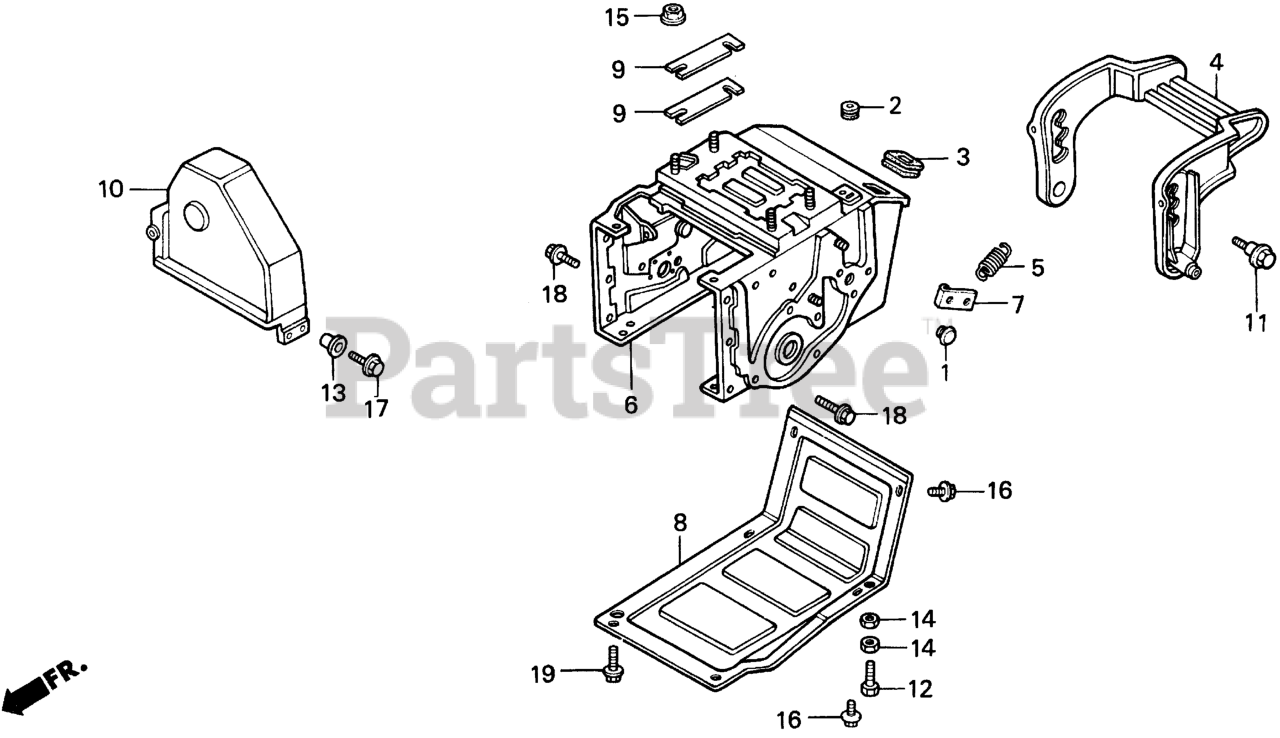

ENGINE BED Parts Diagram

  • Title

1

Honda 22541-960-770

GROMMET, GUIDE ROLLER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 36037-657-000

SEE PART DETAILS - PRI; GROMMET A, TUBE

$9.99

$

Usually ships in 3-6 days

0

3

Honda 40320-736-A00

SEAL, CHANGE ROD

$

$

Not available

4

Honda 42763-738-000

PLATE, HEIGHT ADJUSTING (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 42768-732-901

SPRING, HEIGHT ADJUSTING

$

$

Currently unavailable

6

Honda 51110-738-000

BED, ENGINE

$

$

Not available

7

Honda 51114-736-000

HOOK, SPRING (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 51115-732-000

COVER (LOWER) (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 51118-736-000

SPACER, MOUNTING

Note: Use from Frame SN 1006861.

$

$

Not available

10

Honda 63610-738-610

COVER, BELT (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 90003-732-900

BOLT, HEIGHT ADJUST SETTING

$6.49

$

Usually ships in 3-6 days

0

12

Honda 90103-732-000

BOLT, ADJUSTING

$4.99

$

In Stock, only 1 left!

0

13

Honda 90522-028-000

WASHER, CHAIN CASE SETTING

$3.99

$

Usually ships in 3-6 days

0

14

Honda 94002-080000S

NUT,HEX 8MM
(Superseded to 94002-08000-0S)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 6

0

16

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0

17

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, only 3 left!

0

18

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

19

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 20+
