HS70 TA (HS70) - Honda Snow Blower, Made in Japan (SN: HS70-1000008 - HS70-9999999) CONTROL Parts Diagram

Snow Blower, Made in Japan

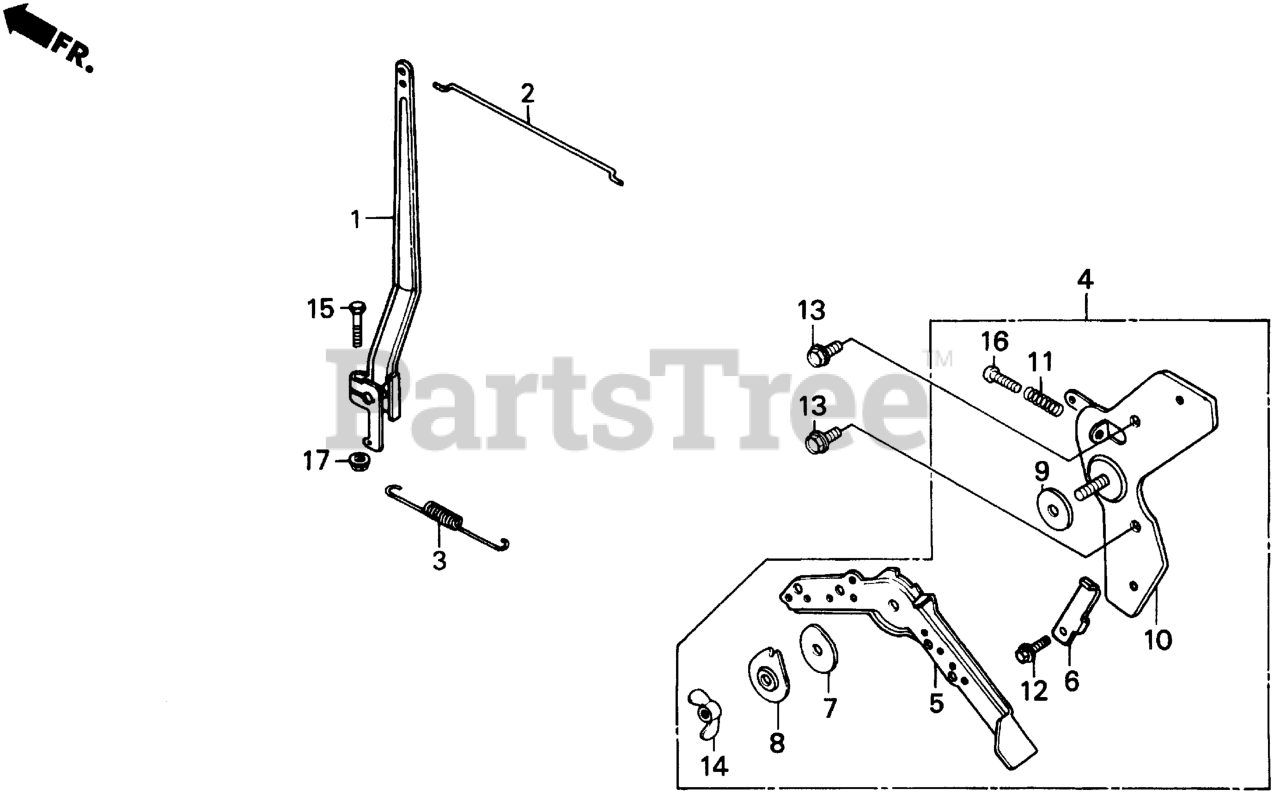

CONTROL Parts Diagram

  • Title

1

Honda 16551-889-010

SEE PART DETAILS - PRI; ARM, GOVERNOR (Honda Code 0803734).

$

$

Not available

2

Honda 16555-889-010

SEE PART DETAILS - PRI; ROD, GOVERNOR (Honda Code 1008309).

$4.99

$

Usually ships in 3-6 days

0

3

Honda 16561-890-601

SEE PART DETAILS - PRI; SPRING, GOVERNOR (Honda Code 1010297).

$

$

Not available

4

Honda 16570-889-630

CONTROL ASSY.

$

$

Not available

5

Honda 16571-883-300

SEE PART DETAILS - SUP; LEVER, CONTROL Use from Engine SN 2327377.

$23.99

$

Usually ships in 3-6 days

0

6

Honda 16572-732-020

IDLE STOP

$

$

Not available

7

Honda 16574-883-300

SPRING, LEVER Use from Engine SN 2327377.

$4.49

$

In Stock, only 1 left!

0

8

Honda 16575-883-300

WASHER, CONTROL LEVER Use from Engine SN 2327377.

$4.49

$

Usually ships in 3-6 days

0

9

Honda 16576-883-300

SPACER, CONTROL LEVER Use from Engine SN 2327377.

$5.49

$

Usually ships in 3-6 days

0

10

Honda 16581-883-320

SEE PART DETAILS - PRI; BASE, CONTROL LEVER (Honda Code 0724484).

$

$

Not available

11

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 7

0

12

Honda 90002-892-000

BOLT, FLANGE (5X10) Use from Engine SN 2327377.

$1.99

$

In Stock, Qty 5

0

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

14

Honda 90352-883-003

WINGNUT (6MM) Use from Engine SN 2327377.

$

$

Not available

15

Honda 92101-06025-0H

BOLT, HEX. (6X25)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 93500-05022-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X22) (Honda Code 0171801).

$0.99

$

Usually ships in 3-6 days

0

17

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0
