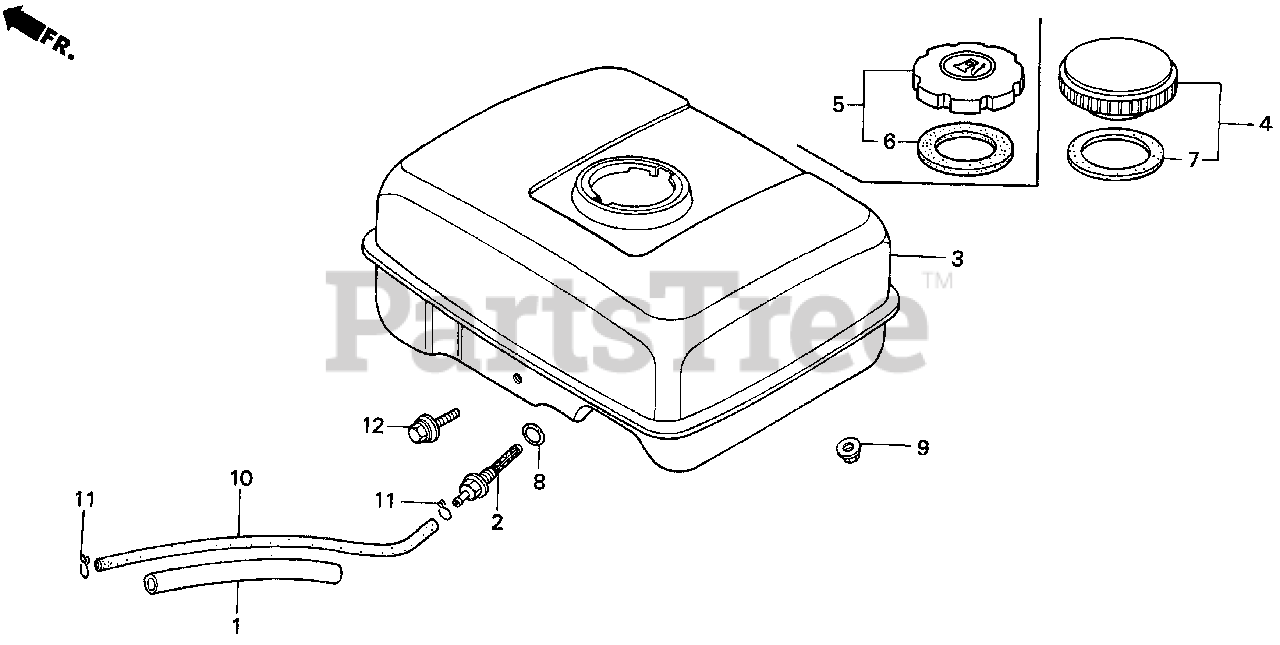

HS624 K1 TC/A (SZAJ) - Honda 24" Snow Blower, Made in Japan (SN: SZAJ-2000001 - SZAJ-2099999) FUEL TANK Parts Diagram

24" Snow Blower, Made in Japan

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, Qty 14

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE1-030ZN

TANK, FUEL *R280* (POWER RED)

$175.99

$

Usually ships in 3-6 days

0

4

Honda 17620-ZE1-H01

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-ZE1-H03)

Note: Use up to Engine SN 3063877.

$

$

Not available

4

Honda 17620-ZE1-H03

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use up to Engine SN 3063877.

$

$

Not available

5

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 3063878 to 4705772.

$

$

Not available

5

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 4705773.

$

$

Not available

6

Honda 17631-ZH7-003

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-003)

Note: Use from Engine SN 3063878.

$

$

Not available

6

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use from Engine SN 3063878.

$

$

Not available

7

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use up to Engine SN 3063877.

$

$

Not available

8

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

8

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

9

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

10

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

$54.99

$

In Stock, only 4 left!

0

11

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

12

Honda 95701-06025-00

BOLT, FLANGE (6X25)

$2.49

$

In Stock, Qty 8

0
