HS624 K1 TC/A (SZAJ) - Honda 24" Snow Blower, Made in Japan (SN: SZAJ-2000001 - SZAJ-2099999) FLYWHEEL + IGNITION COIL Parts Diagram

24" Snow Blower, Made in Japan

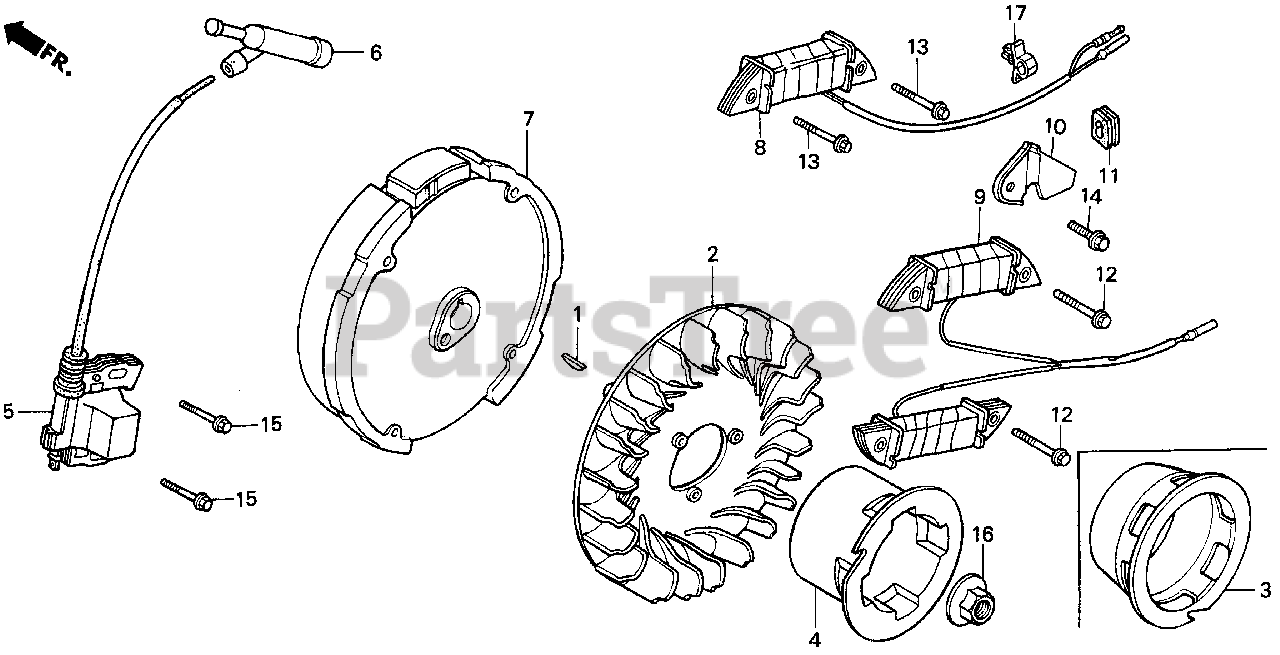

FLYWHEEL + IGNITION COIL Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$4.99

$

In Stock, Qty 7

0

2

Honda 19511-ZE1-000

FAN, COOLING

$30.99

$

Usually ships in 3-6 days

0

3

Honda 28451-ZE1-003

PULLEY, STARTER

Note: Use up to Engine SN 2738656.

$33.99

$

Usually ships in 3-6 days

0

4

Honda 28451-ZE1-711

PULLEY, STARTER

Note: Use from Engine SN 2738657.

$35.99

$

Usually ships in 3-6 days

0

5

Honda 30500-ZE1-033

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZE1-073)

$102.99

$

In Stock, only 1 left!

0

5

Honda 30500-ZE1-063

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZE1-073)

$102.99

$

In Stock, only 1 left!

0

6

Honda 30700-ZE1-013

CAP ASSY., NOISE SUPPRESSOR (NICHIWA Y-EZ RTFM256)

$22.99

$

In Stock, only 1 left!

0

7

Honda 31100-ZE1-811

FLYWHEEL (LAMP)

$190.99

$

Usually ships in 3-6 days

0

8

Honda 31510-ZE1-003

COIL ASSY., LAMP (12V/15W)

$78.99

$

Usually ships in 3-6 days

0

10

Honda 31511-ZE1-000

CLAMP, WIRE

$4.99

$

In Stock, only 2 left!

0

11

Honda 31512-ZE1-000

GROMMET, WIRE

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

$2.49

$

In Stock, Qty 5

0

14

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90121-952-000

BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

16

Honda 90201-878-003

NUT, SPECIAL (14MM)

$7.99

$

Usually ships in 3-6 days

0

17

Honda 90659-170-000

CLIP, CABLE (6MM) (WHITE)

$7.99

$

Usually ships in 3-6 days

0
