HS624 K1 TC/A (SZAJ) - Honda 24" Snow Blower, Made in Japan (SN: SZAJ-2000001 - SZAJ-2099999) DRIVEN PULLEY Parts Diagram

24" Snow Blower, Made in Japan

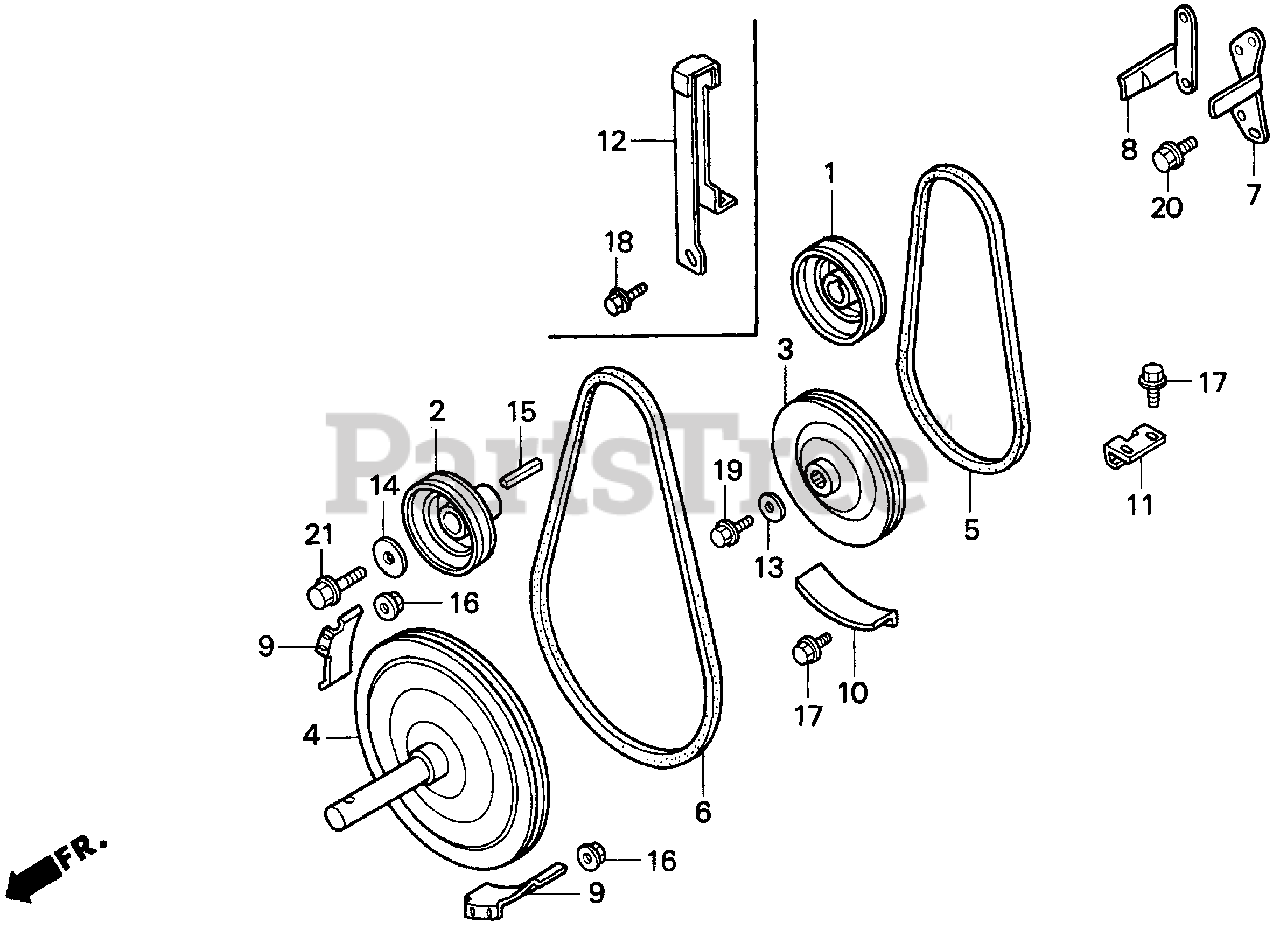

DRIVEN PULLEY Parts Diagram

  • Title

1

Honda 22411-736-000

PULLEY, WHEEL DRIVE

$47.99

$

Usually ships in 3-6 days

0

2

Honda 22412-736-000

PULLEY, AUGER DRIVE

$47.99

$

Usually ships in 3-6 days

0

3

Honda 22423-767-000

PULLEY, WHEEL DRIVEN (133MM)

$68.99

$

In Stock, only 1 left!

0

4

Honda 22424-767-010

PULLEY, AUGER DRIVEN (198MM)

$87.99

$

In Stock, only 1 left!

0

5

Honda 22431-767-003

V-BELT (SA-27)

$18.99

$

In Stock, only 2 left!

0

6

Honda 22432-V03-000

SEE PART DETAILS - PRI; V-BELT (SB-35)

$37.99

$

In Stock, only 3 left!

0

6

Honda 22432-738-C31

SEE PART DETAILS - SUP; V-BELT (SB-35)
(Superseded to 22432-V03-000)

$37.99

$

In Stock, only 3 left!

0

7

Honda 22441-767-000

STOPPER, R. BELT

$16.99

$

Usually ships in 3-6 days

0

8

Honda 22442-736-A00

STOPPER, L. BELT

$12.99

$

Usually ships in 3-6 days

0

9

Honda 22444-767-000

STOPPER, AUGER BELT

$13.99

$

Usually ships in 3-6 days

0

10

Honda 22451-767-000

PROTECTOR, BELT (WHEEL)

$6.99

$

Usually ships in 3-6 days

0

11

Honda 22453-767-000

GUIDE, BELT

$11.99

$

Usually ships in 3-6 days

0

12

Honda 36202-767-C30

STAY, HEADLIGHT

$80.99

$

Usually ships in 3-6 days

0

13

Honda 90417-115-000

WASHER, CAMSHAFT SIDE

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90534-706-010

WASHER, LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

15

Honda 90741-883-621

KEY (5MM)

$7.49

$

Usually ships in 3-6 days

0

16

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

17

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

18

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$2.49

$

In Stock, only 1 left!

0

19

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

20

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 7

0

21

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

In Stock, Qty 5

0
