HS624 K1 TA/B (SZAJ) - Honda 24" Snow Blower, Made in Japan (SN: SZAJ-2021946 - SZAJ-2099999) AUGER Parts Diagram

24" Snow Blower, Made in Japan

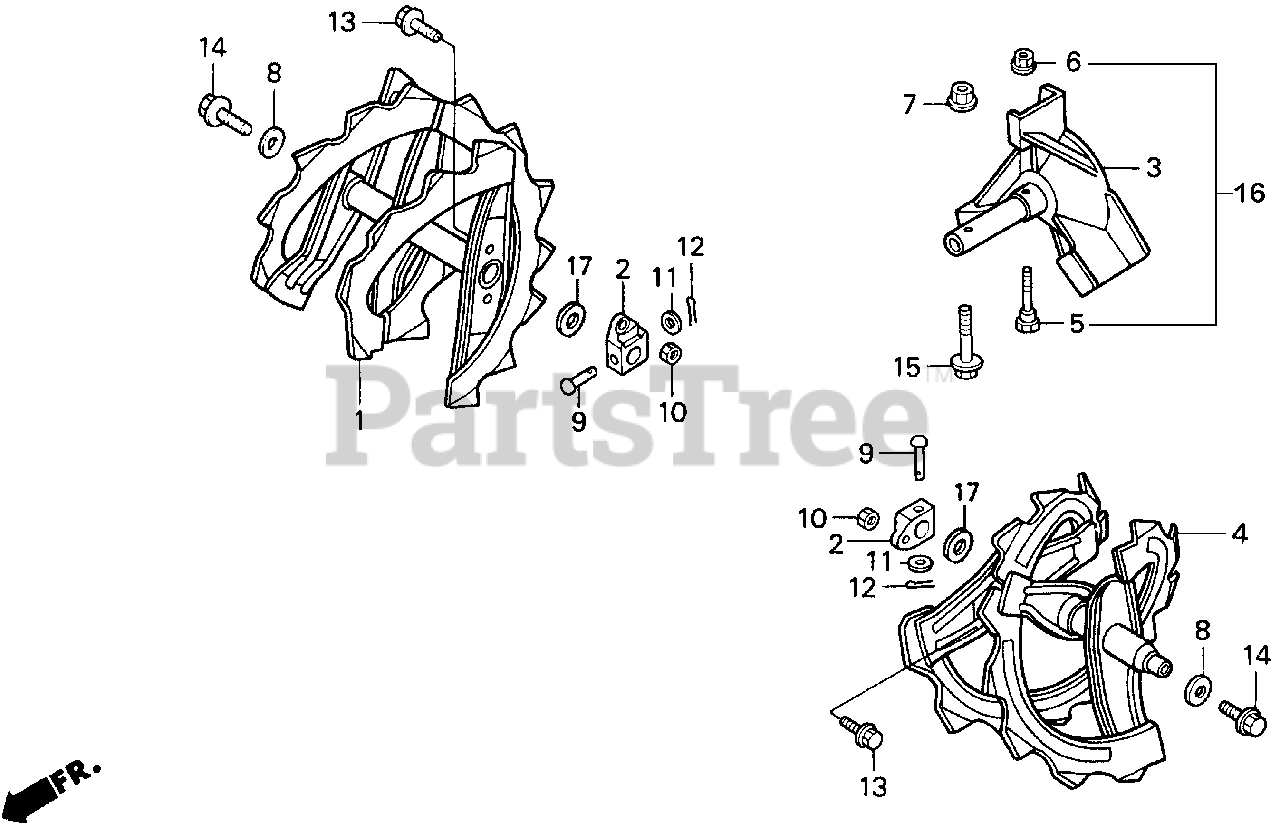

AUGER Parts Diagram

  • Title

NI

Honda 04700-768-E100

SEE PART DETAILS - SUP; AUGER SKID KIT, COMMERCIAL

$

$

Not available

NI

Honda 04700-768-E110

SEE PART DETAILS - PRI; AUGER SKID KIT, COMMERCIAL

$

$

Not available

1

Honda 72410-767-010

AUGER, R.

$312.99

$

Usually ships in 3-6 days

0

2

Honda 72419-767-013

BOSS, LOCK BOLT

$25.99

$

Usually ships in 3-6 days

0

3

Honda 72440-767-000

BLOWER

$213.99

$

Usually ships in 3-6 days

0

4

Honda 72450-767-010

AUGER, L.

$312.99

$

Usually ships in 3-6 days

0

5

Honda 90102-732-010

SEE PART DETAILS - PRI; BOLT, LOCK

$6.49

$

In Stock, Qty 6

0

6

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

$4.49

$

In Stock, Qty 20+

0

7

Honda 90309-428-731

NUT, FLANGE (M8X1.25) (SELF-LOCK)

$4.99

$

In Stock, Qty 14

0

8

Honda 90430-657-000

WASHER (23X8.3X3.2)

$9.49

$

In Stock, only 1 left!

0

9

Honda 90757-767-000

PIN (7X40)

$4.49

$

In Stock, Qty 20+

0

10

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

11

Honda 90501-KV6-670

WASHER, PLAIN (7MM)

$2.49

$

In Stock, only 2 left!

0

12

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94201-30450

PIN, SPLIT (3.0X45)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 7

0

15

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, only 3 left!

0
