HS624 K1 TA/A (SZAJ) - Honda 24" Snow Blower, Made in Japan (SN: SZAJ-2000001 - SZAJ-2021945) CONTROL Parts Diagram

24" Snow Blower, Made in Japan

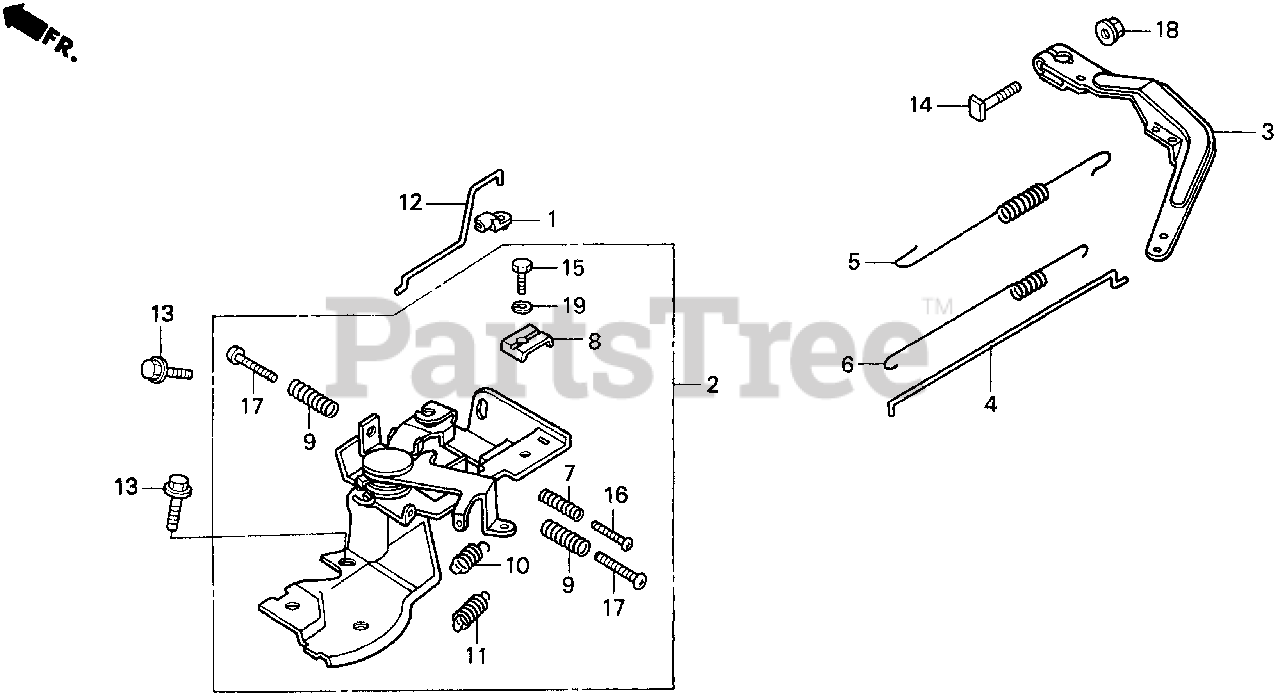

CONTROL Parts Diagram

  • Title

1

Honda 16263-ZA0-000

JOINT, ROD

$5.49

$

Usually ships in 3-6 days

0

2

Honda 16500-ZF1-H53

SEE PART DETAILS - SUP; CONTROL ASSY.
(Superseded to 16500-ZF1-H54)

$79.99

$

Usually ships in 3-6 days

0

2

Honda 16500-ZF1-H54

SEE PART DETAILS - PRI; CONTROL ASSY.

$79.99

$

Usually ships in 3-6 days

0

3

Honda 16551-ZE0-010

ARM, GOVERNOR

$15.99

$

Usually ships in 3-6 days

0

4

Honda 16555-ZE1-000

ROD, GOVERNOR

$4.99

$

In Stock, only 4 left!

0

5

Honda 16561-ZE1-710

SPRING, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

6

Honda 16562-ZE1-020

SPRING, THROTTLE RETURN

$3.99

$

In Stock, Qty 17

0

7

Honda 16571-892-000

SPRING, CONTROL ADJUSTING

$2.49

$

In Stock, Qty 5

0

8

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

Usually ships in 3-6 days

0

9

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

10

Honda 16592-ZE1-810

SPRING, CABLE RETURN

$2.49

$

In Stock, only 2 left!

0

11

Honda 16592-732-700

SPRING, CABLE RETURN

$4.99

$

In Stock, only 1 left!

0

12

Honda 16674-ZF1-H50

ROD, CHOKE

$2.49

$

In Stock, only 4 left!

0

13

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

14

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

15

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 93500-04020-0H

SCREW, PAN (4X20)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93500-05020-0H

SCREW, PAN (5X20)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94111-05800

WASHER, SPRING (5MM)

Note: Use up to Engine SN 2709371.

$1.49

$

Usually ships in 3-6 days

0
