HS622 TA/B (SZAL) - Honda 22" Snow Blower, Made in Japan (SN: SZAL-1100001 - SZAL-9999999) HANDLEBAR Parts Diagram

22" Snow Blower, Made in Japan

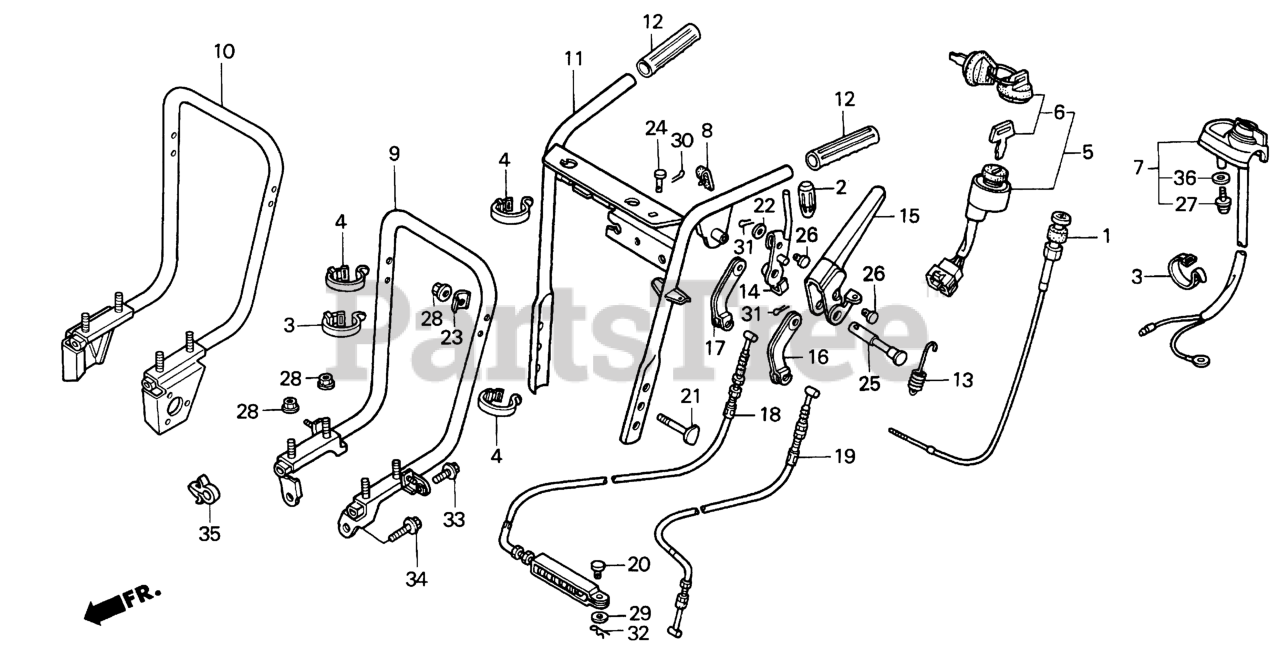

HANDLEBAR Parts Diagram

  • Title

2

Honda 24411-736-000

GRIP, CHANGE LEVER

$7.49

$

Usually ships in 3-6 days

0

3

Honda 32161-404-610

BAND B1, CABLE Use up to Frame SN 1001879.

$2.99

$

Usually ships in 3-6 days

0

4

Honda 32161-438-000

BAND, CABLE

$5.49

$

Usually ships in 3-6 days

0

7

Honda 36100-743-631

SWITCH ASSY., ENGINE STOP

$29.99

$

Usually ships in 3-6 days

0

8

Honda 50319-743-000

STOPPER, CLUTCH LEVER

$3.99

$

Usually ships in 3-6 days

0

9

Honda 53110-743-010

SEE PART DETAILS - SUP; HANDLE (LOWER)
(Superseded to 53110-743-020ZA)

$164.99

$

Usually ships in 3-6 days

0

9

Honda 53110-743-020ZA

HANDLE (LOWER) *NH1*

$164.99

$

Usually ships in 3-6 days

0

11

Honda 53150-743-A10

PIPE, HANDLE (UPPER)

$315.99

$

Usually ships in 3-6 days

0

12

Honda 53321-708-000

GRIP, HANDLE

$17.99

$

Usually ships in 3-6 days

0

13

Honda 54229-743-010

SEE PART DETAILS - SUP; SPRING, AUGER CLUTCH LEVER
(Superseded to 54229-743-020)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 54229-743-020

SPRING

$6.99

$

Usually ships in 3-6 days

0

14

Honda 54410-743-010

LEVER, MAIN CLUTCH

$36.99

$

Usually ships in 3-6 days

0

15

Honda 54416-743-701

SEE PART DETAILS - SUP; LEVER, L. CLUTCH
(Superseded to 54416-743-702)

$

$

Not available

16

Honda 54421-743-000

ARM, CLUTCH

$13.99

$

Usually ships in 3-6 days

0

17

Honda 54424-743-000

ARM, AUGER CLUTCH

$13.99

$

Usually ships in 3-6 days

0

18

Honda 54510-743-611

CABLE, MAIN CLUTCH

$54.99

$

Usually ships in 3-6 days

0

19

Honda 54520-743-611

CABLE, AUGER CLUTCH

$50.99

$

Usually ships in 3-6 days

0

20

Honda 77203-425-000

PIN, SEAT HINGE

$5.49

$

Usually ships in 3-6 days

0

21

Honda 90109-VA4-000

BOLT, HANDLE HOLDER (8X41)
(Superseded to 90113-V10-000)

Note: Use up to Frame SN 1107320.

$8.99

$

In Stock, Qty 19

0

21

Honda 90109-732-010

BOLT, HANDLE HOLDER

Note: Use from Frame SN 1107321.

$15.99

$

Usually ships in 3-6 days

0

22

Honda 90452-283-000

WASHER, THRUST (10.5X16.5X1)

$

$

Not available

23

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 12

0

24

Honda 90703-743-000

PIN (4X14)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 90751-743-010

PIN, CLUTCH LEVER

$6.99

$

Usually ships in 3-6 days

0

26

Honda 90755-722-000

PIN (8X14)

$5.99

$

Usually ships in 3-6 days

0

27

Honda 93500-03012-0A

SEE PART DETAILS - PRI; SCREW, PAN (3X12) (Honda Code 0182154).

$1.49

$

In Stock, Qty 6

0

28

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

29

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

30

Honda 94201-16100

PIN, COTTER (1.6X10)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94201-16250

PIN, COTTER (1.6X25)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 11

0

33

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

34

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 1 left!

0

35

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

36

Honda 94111-03000

SEE PART DETAILS - PRI; WASHER, SPRING (3MM)

$1.49

$

In Stock, Qty 9

0
