HS622 TA/B (SZAL) - Honda 22" Snow Blower, Made in Japan (SN: SZAL-1100001 - SZAL-9999999) AUGER CLUTCH Parts Diagram

22" Snow Blower, Made in Japan

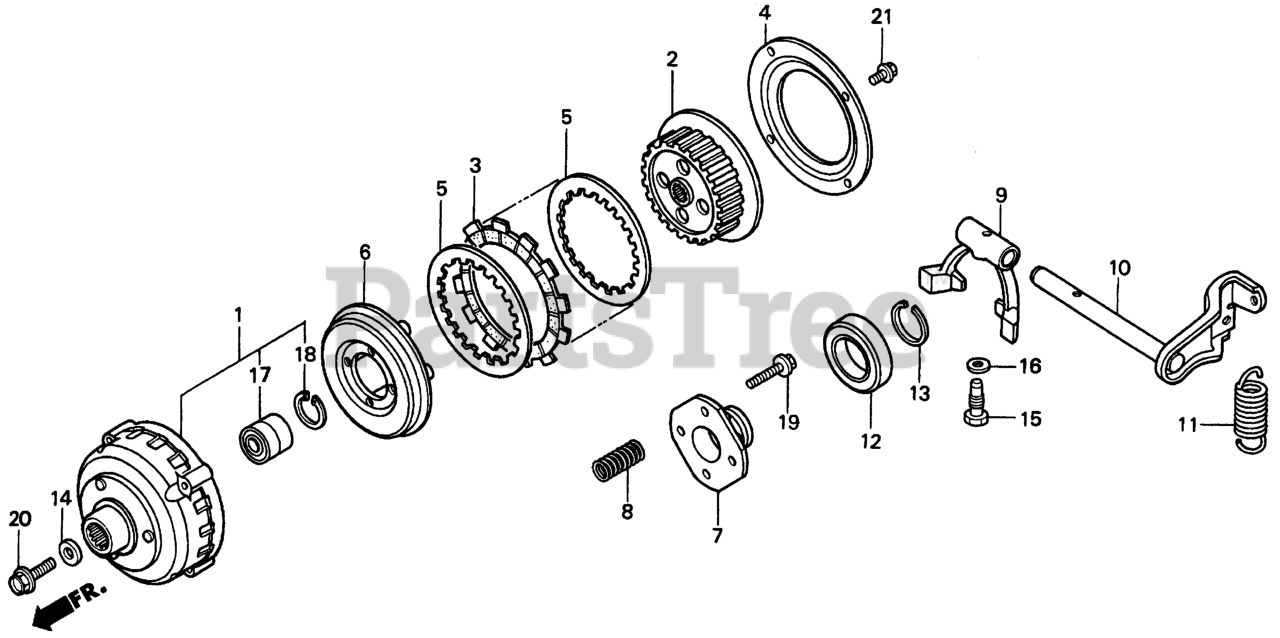

AUGER CLUTCH Parts Diagram

  • Title
1

Honda 22100-743-013

CLUTCH (OUTER)

$243.99

$

Usually ships in 3-6 days

0

2

Honda 22121-743-003

CENTER, CLUTCH

$65.99

$

Usually ships in 3-6 days

0

3

Honda 22201-743-003

DISK, CLUTCH FRICTION

$26.99

$

Usually ships in 3-6 days

0

4

Honda 22204-743-003

PLATE, BRAKE

$27.99

$

Usually ships in 3-6 days

0

5

Honda 22311-743-003

PLATE, CLUTCH

$13.99

$

Usually ships in 3-6 days

0

6

Honda 22350-743-003

PLATE, CLUTCH PRESSURE

$45.99

$

Usually ships in 3-6 days

0

7

Honda 22361-743-003

PLATE, CLUTCH LIFTER

$27.99

$

Usually ships in 3-6 days

0

8

Honda 22401-743-003

SPRING, CLUTCH

$4.99

$

Usually ships in 3-6 days

0

9

Honda 22821-743-000

ARM, CLUTCH RELEASE

$82.99

$

Usually ships in 3-6 days

0

10

Honda 22830-743-700

SHAFT, CLUTCH RELEASE

$52.99

$

Usually ships in 3-6 days

0

11

Honda 22851-743-000

SPRING, RELEASE ARM

$13.99

$

Usually ships in 3-6 days

0

12

Honda 22863-743-003

BEARING, CLUTCH RELEASE

$61.99

$

Usually ships in 3-6 days

0

13

Honda 22864-743-000

RING, CLUTCH RELEASE BEARING SNAP

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90028-839-000

WASHER, PLAIN (8.5MM)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90029-611-010

SEE PART DETAILS - PRI; BOLT, SPECIAL (8X24)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 90412-679-000

WASHER, CONICAL SPRING (8MM)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 91051-743-003

BEARING, SPECIAL BALL (6002)

$40.99

$

Usually ships in 3-6 days

0

18

Honda 94520-32000

CIRCLIP (INNER) (32MM)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90008-KT7-000

BOLT, FLANGE (6X25)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 95830-08032-07

BOLT, FLANGE (8X32)

$

$

Not available

21

Honda 96001-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2105930).

$2.49

$

In Stock, Qty 5

0
