HS622 TA/A (SZAL) - Honda 22" Snow Blower, Made in Japan (SN: SZAL-1000001 - SZAL-1099999) TRANSMISSION CASE Parts Diagram

22" Snow Blower, Made in Japan

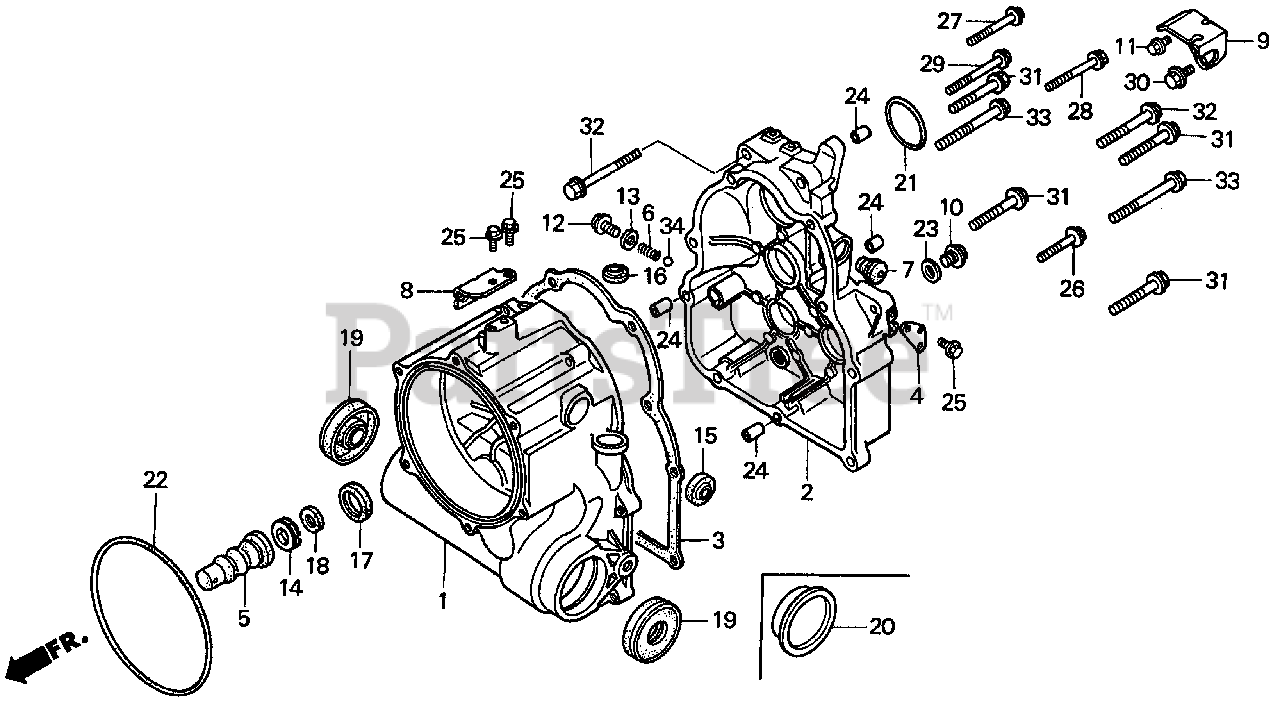

TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 21111-743-010

SEE PART DETAILS - SUP; CASE, TRANSMISSION

$

$

Not available

2

Honda 21211-743-000

COVER, TRANSMISSION CASE

$294.99

$

Usually ships in 3-6 days

0

3

Honda 21281-743-640

GASKET, TRANSMISSION CASE

$12.99

$

Usually ships in 3-6 days

0

4

Honda 22852-743-000

BRACKET, CLUTCH SPRING

$5.99

$

Usually ships in 3-6 days

0

5

Honda 24135-743-000

BOOT, SHIFT FORK SHAFT

$11.99

$

Usually ships in 3-6 days

0

6

Honda 24271-743-000

SPRING, BALL SETTING

$2.99

$

Usually ships in 3-6 days

0

7

Honda 25611-729-000

CAP, TRANSMISSION OIL
(Superseded to 25611-729-010)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 40316-743-701

BRACKET, MAIN CLUTCH CABLE

$8.99

$

Usually ships in 3-6 days

0

9

Honda 54526-743-701

BRACKET, AUGER CLUTCH CABLE

$13.99

$

Usually ships in 3-6 days

0

10

Honda 90003-MG7-000

BOLT, SEALING (12X10)

$7.49

$

Usually ships in 3-6 days

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14)

$2.99

$

In Stock, only 4 left!

0

12

Honda 90035-GF4-000

BOLT, CHECK (8MM)

$9.99

$

Usually ships in 3-6 days

0

13

Honda 90474-333-000

WASHER (8MM)

$5.49

$

In Stock, only 4 left!

0

14

Honda 90682-743-000

GROMMET, BOOT COVER

$4.99

$

Usually ships in 3-6 days

0

15

Honda 91206-286-013

OIL SEAL (14X28X7) (ARAI)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 91208-611-005

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 91212-KM1-005

OIL SEAL (22X32X5)

$6.49

$

Usually ships in 3-6 days

0

18

Honda 91253-706-003

OIL SEAL (12X22X6)

$12.99

$

Usually ships in 3-6 days

0

19

Honda 91256-729-931

OIL SEAL (20X47X9.7)

$27.99

$

Usually ships in 3-6 days

0

21

Honda 91303-ZE5-003

SEE PART DETAILS - PRI; O-RING (47.7X2.5) (ARAI)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 91303-ZE5-004

SEE PART DETAILS - SUP; O-RING (47.7X2.5) (NOK)

$

$

Currently unavailable

22

Honda 91351-743-000

O-RING (144.4X3.1)

$11.99

$

Usually ships in 3-6 days

0

23

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 4 left!

0

24

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

25

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

26

Honda 95701-06035-00

BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 2 left!

0

27

Honda 95701-06040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 95701-06045-07

BOLT, FLANGE (6X45)

$2.99

$

In Stock, Qty 10

0

29

Honda 95701-06055-00

BOLT, FLANGE (6X55)

$2.99

$

In Stock, only 4 left!

0

30

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0

31

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 6

0

32

Honda 95701-08055-00

BOLT, FLANGE (8X55)

$3.49

$

In Stock, only 2 left!

0

33

Honda 95701-08065-00

BOLT, FLANGE (8X65)

$2.49

$

In Stock, Qty 5

0

34

Honda 96211-08000

BALL, STEEL (#8) (1/4)

$1.99

$

Usually ships in 3-6 days

0
