HS622 TA/A (SZAL) - Honda 22" Snow Blower, Made in Japan (SN: SZAL-1000001 - SZAL-1099999) CYLINDER Parts Diagram

22" Snow Blower, Made in Japan

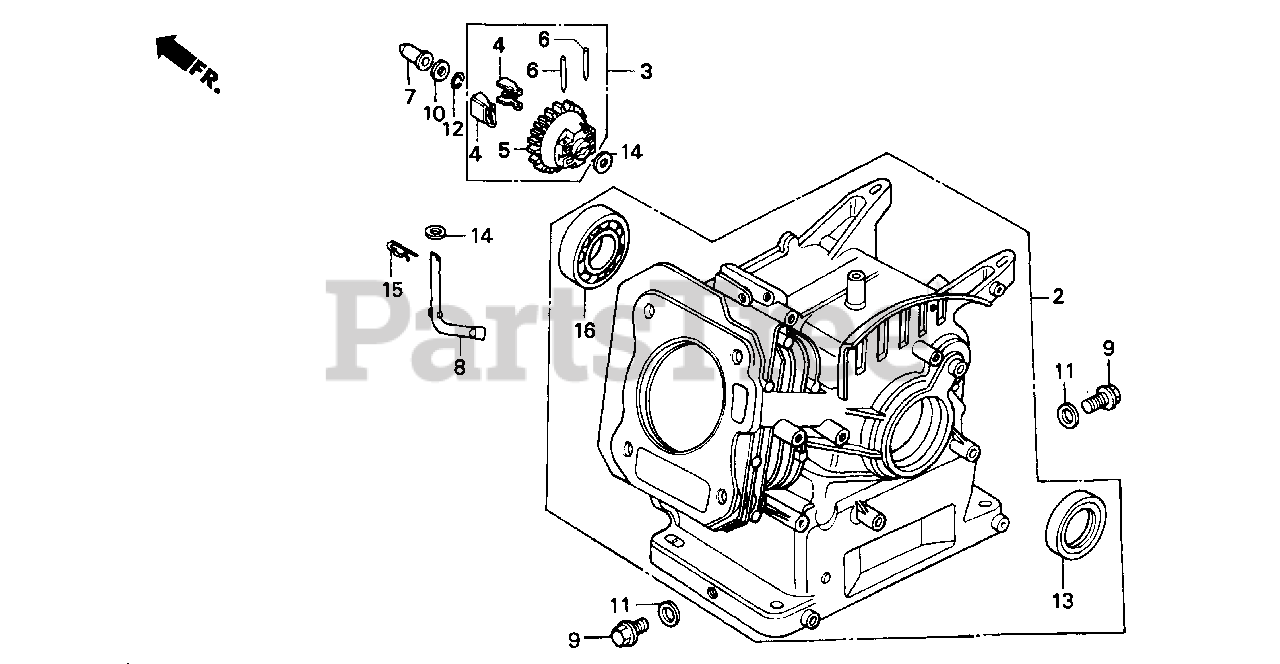

CYLINDER Parts Diagram

  • Title

2

Honda 12000-ZH8-405

SEE PART DETAILS - SUP; CYLINDER ASSY. (010)

$

$

Currently unavailable

2

Honda 12000-ZH8-425

SEE PART DETAILS - PRI; CYLINDER ASSY.

$446.99

$

Usually ships in 3-6 days

0

3

Honda 16510-ZE1-000

GOVERNOR ASSY.

$16.99

$

In Stock, only 3 left!

0

4

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

$3.99

$

Usually ships in 3-6 days

0

5

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT

$24.99

$

In Stock, only 1 left!

0

6

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

7

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 11

0

8

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

$13.99

$

Usually ships in 3-6 days

0

9

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 1 left!

0

10

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM)

$1.99

$

In Stock, Qty 5

0

11

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 6

0

13

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

In Stock, Qty 8

0

13

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$8.99

$

In Stock, Qty 8

0

14

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

16

Honda 91001-ZF1-003

BEARING, RADIAL BALL (6205)

$24.99

$

In Stock, only 3 left!

0
