HS622 TA/A (SZAL) - Honda 22" Snow Blower, Made in Japan (SN: SZAL-1000001 - SZAL-1099999) CHANGE LEVER Parts Diagram

22" Snow Blower, Made in Japan

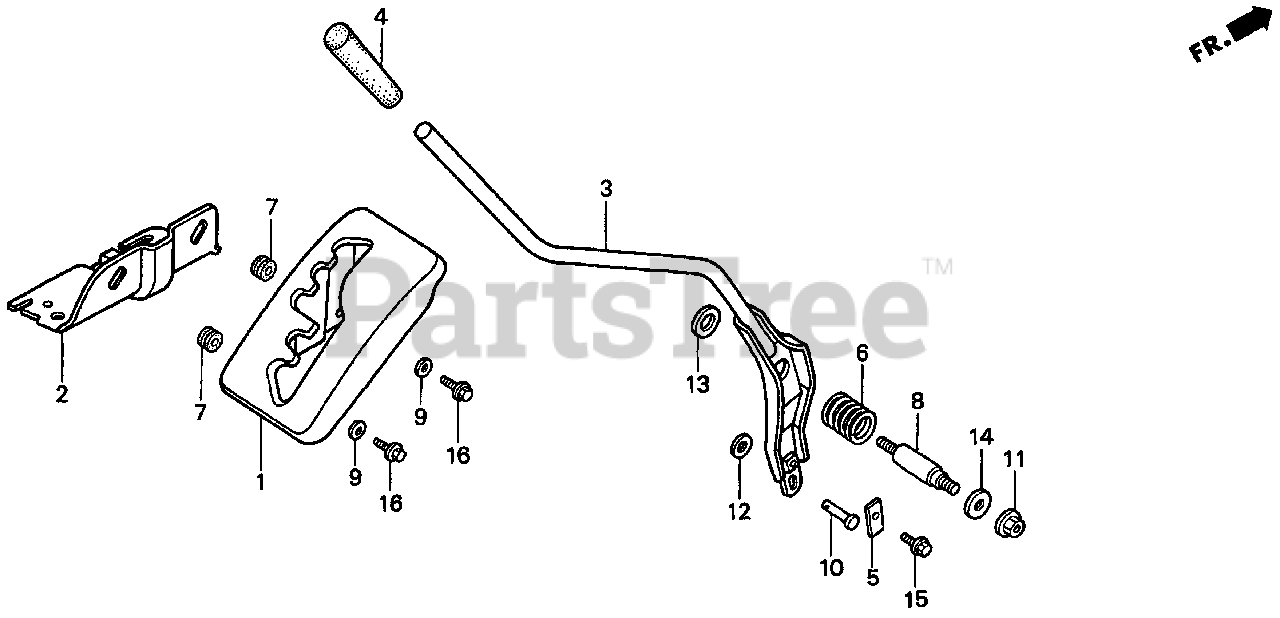

CHANGE LEVER Parts Diagram

  • Title

1

Honda 21311-743-010

COVER, CHANGE
(Superseded to 21311-743-010ZA)

$18.99

$

Usually ships in 3-6 days

0

2

Honda 21312-743-010

STAY, CHANGE COVER

$21.99

$

Usually ships in 3-6 days

0

3

Honda 24410-743-010

LEVER, CHANGE

$54.99

$

Usually ships in 3-6 days

0

4

Honda 24411-719-000

GRIP, CHANGE LEVER

$11.99

$

Usually ships in 3-6 days

0

5

Honda 24412-743-000

PLATE, CHANGE LEVER PIN

$6.99

$

Usually ships in 3-6 days

0

6

Honda 24416-743-000

SPRING, CHANGE LEVER

$9.49

$

Usually ships in 3-6 days

0

7

Honda 36037-657-000

SEE PART DETAILS - PRI; GROMMET A, TUBE

$9.99

$

Usually ships in 3-6 days

0

8

Honda 90101-743-010

BOLT, CHANGE LEVER

$8.49

$

Usually ships in 3-6 days

0

9

Honda 90512-SA0-000

WASHER (6X20)

$8.99

$

Usually ships in 3-6 days

0

10

Honda 90752-732-000

PIN, CLUTCH ARM

$5.49

$

Usually ships in 3-6 days

0

11

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

12

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 94101-10800

WASHER, PLAIN (10MM)

$2.49

$

In Stock, only 2 left!

0

14

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

16

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0
